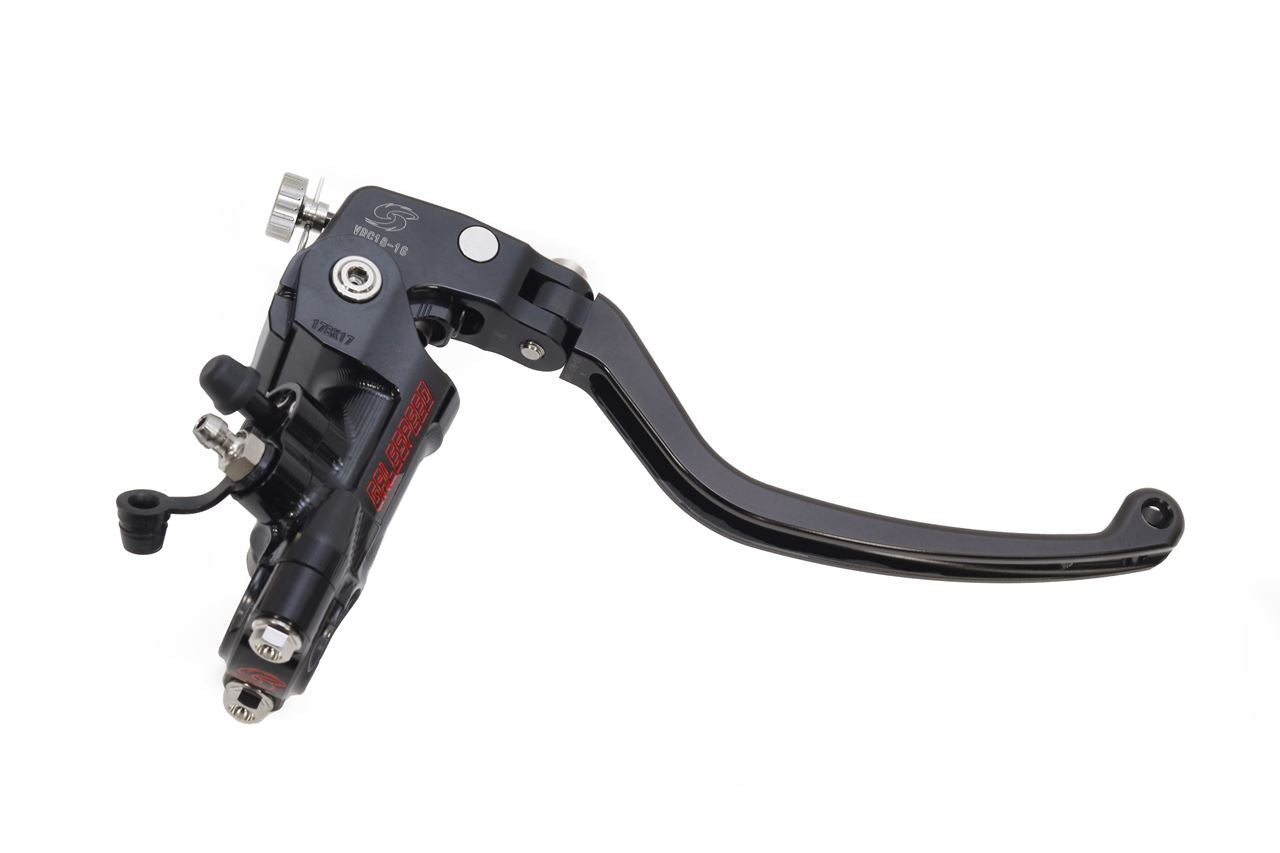

Titanium Specifications Brake Master VRET φ16 (lever ratio 18-16mm) Standard Clamp/Short Lever

[GALESPEED VRET16A-17BS Titanium Specification Brake Master VRET φ16 (Lever Ratio 18-16mm) Standard Clamp / Short Lever]
■Product Description
We have created a superb master cylinder worthy of the word "Elaborate," meaning "to make with great care and attention to detail" or "skillful."
Furthermore, the VRET is a high-end specification with titanium parts for the fine details.
(Lever adjust dial, bleeder valve, pivot pin, cap bolt, handlebar clamp bolt, adjuster pin)
Its performance, recognized by many racing teams both in Japan and overseas, its excellent appearance with full 3D machining, and all other aspects are sure to satisfy the rider's demands.
Equipped with a uniquely developed variable ratio lever. The fulcrum-to-load point of the lever can be adjusted by 0.25mm increments up to a maximum of 2mm, allowing the brake feel, which used to be influenced by the combination with the caliper, to be brought closer to the optimal state.

Specifications
Cylinder diameter: φ16
Fulcrum-to-load point: 18-16mm

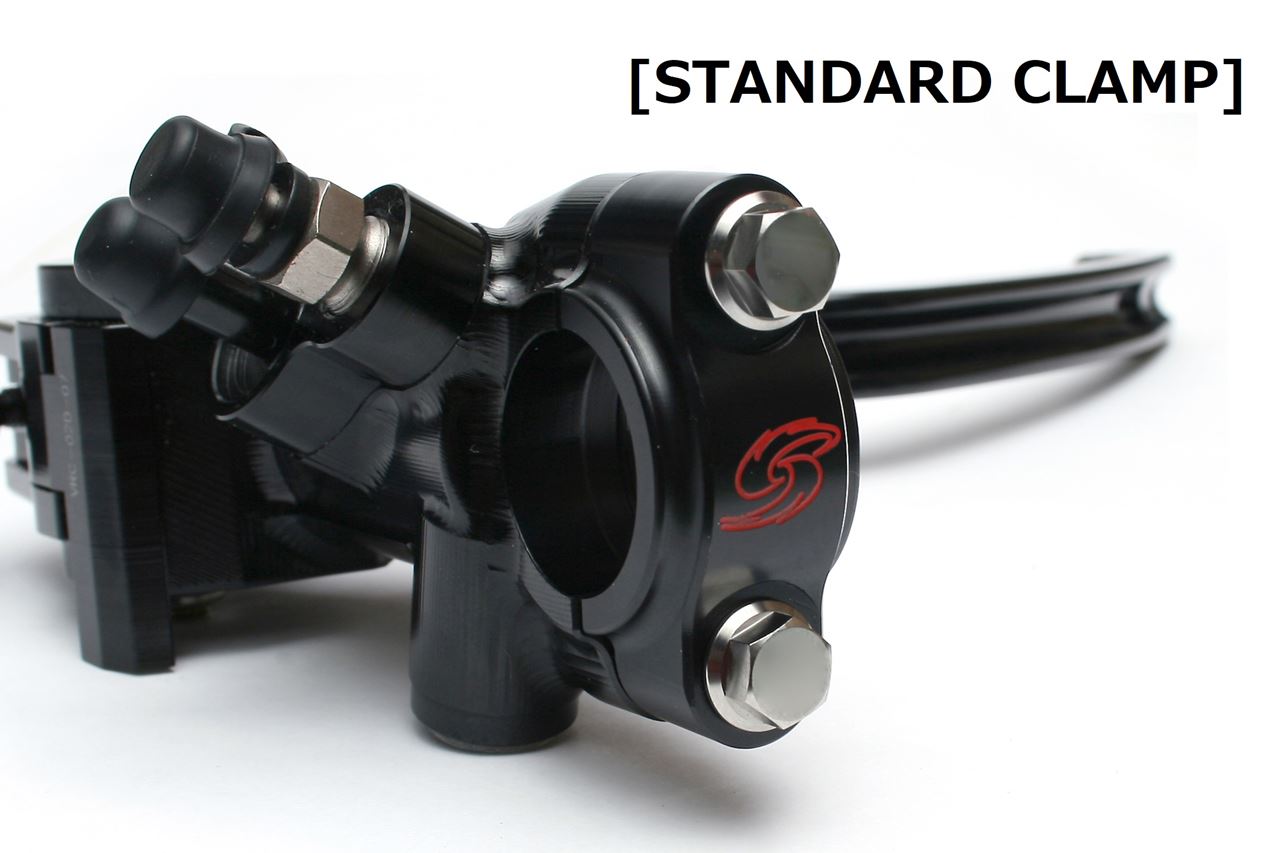

Clamp type: Standard clamp

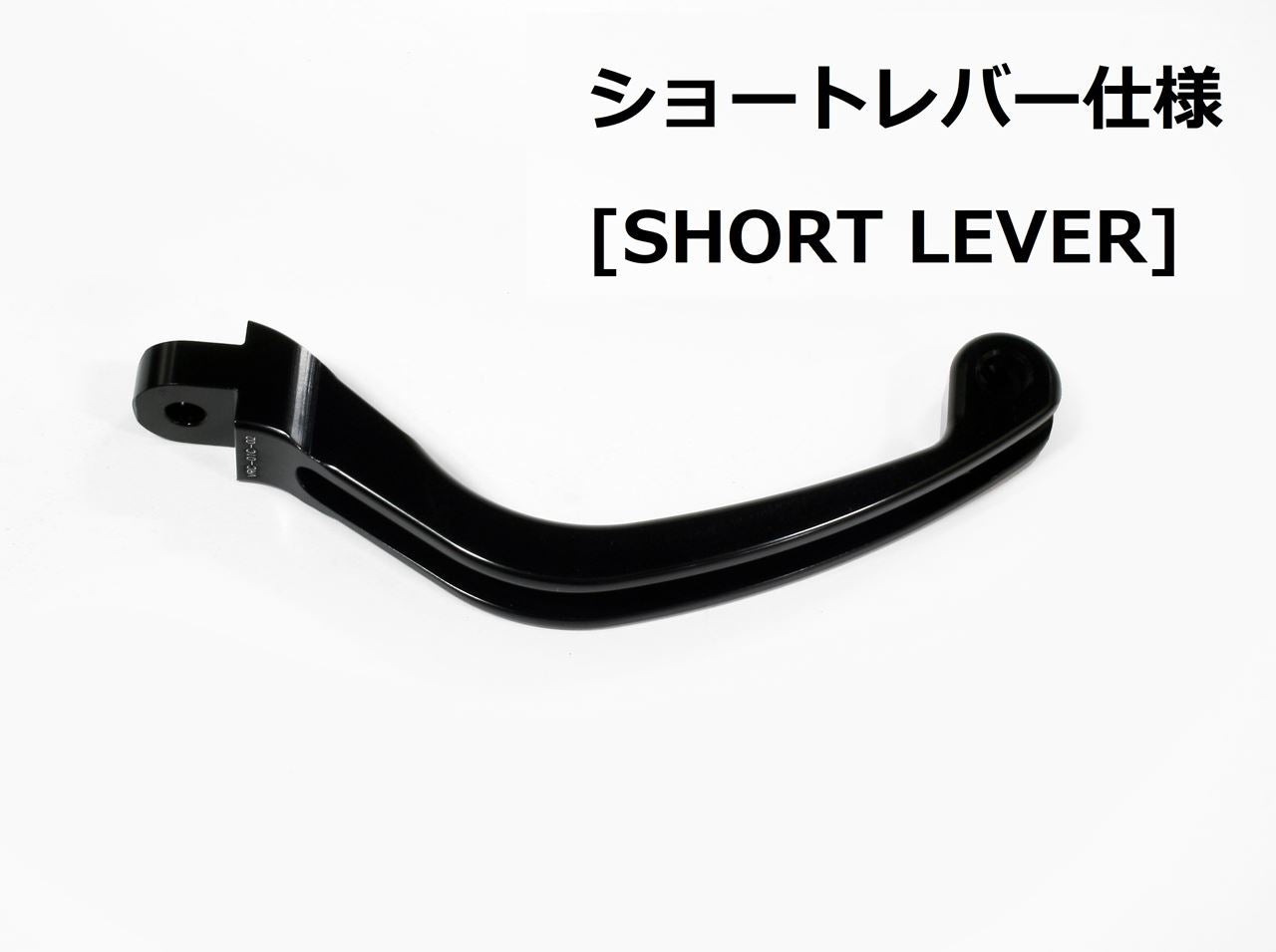

Lever length: Short

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product designs and specifications are subject to change without notice. Please understand.

Precautions
*Only glycol ether based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid as it may cause malfunction or fluid leakage.
*Bolt pitch: P1.00
*Price is for master cylinder body only.
*Ensure proper torque management when installing. The installation torque for the M6 clamp bolt is 12 N·m.
*If the measurement point for the vehicle height recorded on the vehicle inspection certificate is the master cylinder (mainly the master cup), a change exceeding ±40mm requires a structural change procedure.
