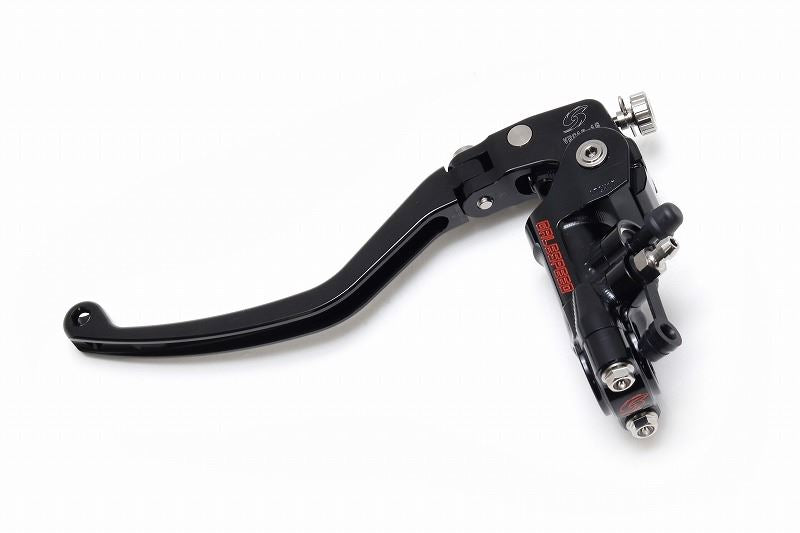

Titanium Clutch Master VRET φ17.5 (Lever Ratio 18-16mm) Standard Clamp/Short Lever

【GALE SPEED VRET17A-17CS Titanium Clutch Master VRET φ17.5 (Lever Ratio 18-16mm) Standard Clamp / Short Lever】
■Product Description
We created a superb master cylinder worthy of the word "Elaborate," meaning "to create with precision" or "skillful."
Furthermore, the VRET is a high-end specification with titanium parts for fine details.
(Lever adjust dial, bleeder valve, pivot pin, cap bolt, handle clamp bolt, adjuster pin)
Its performance, recognized by many racing teams both in Japan and overseas, and its outstanding appearance achieved through full 3D machining, are sure to satisfy the demands of every rider.
Equipped with a uniquely developed variable ratio lever. The fulcrum-to-application point of the lever can be adjusted by up to 2mm in 0.25mm increments, allowing the brake feel, which was previously influenced by the caliper combination, to be brought closer to the optimal state.

Specifications
Cylinder diameter: φ17.5
Fulcrum to application point: 18-16mm

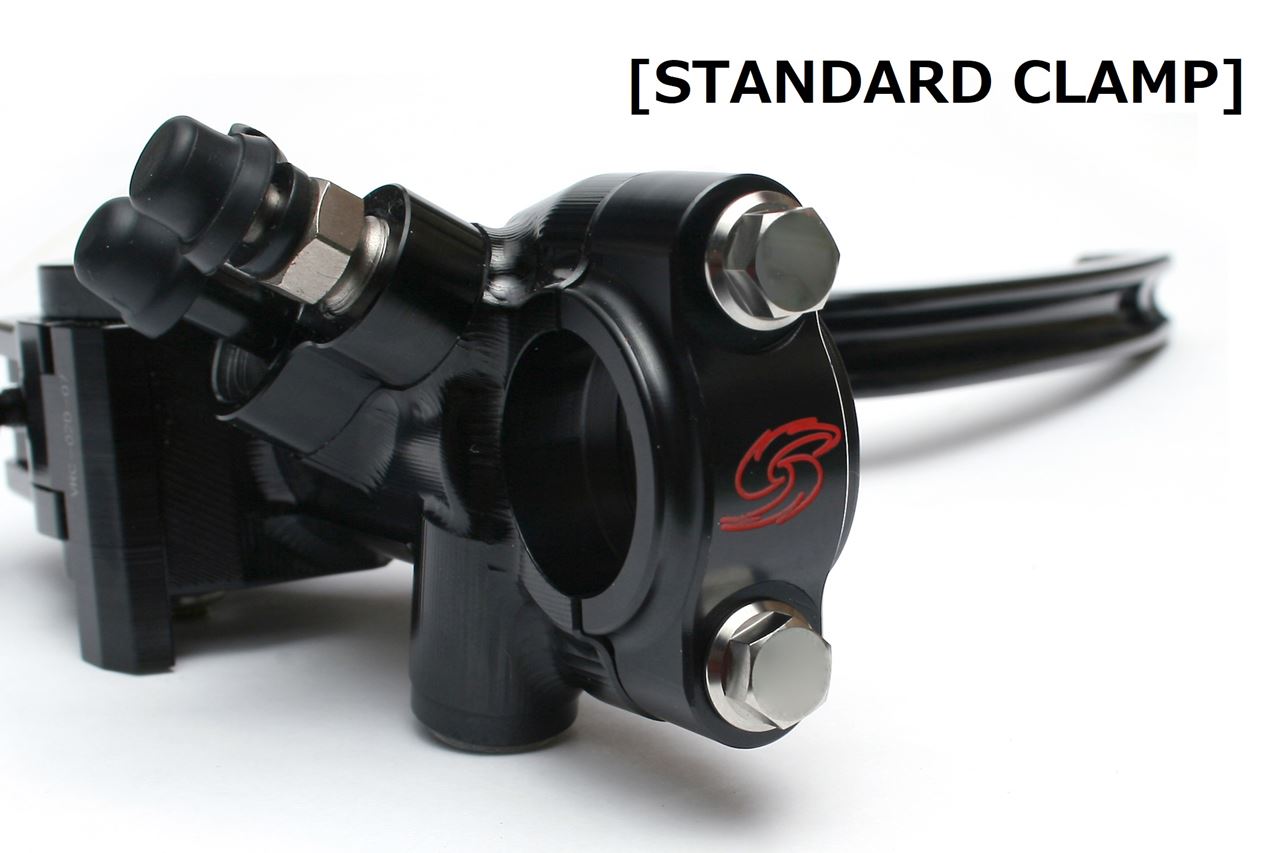

Clamp type: Standard clamp

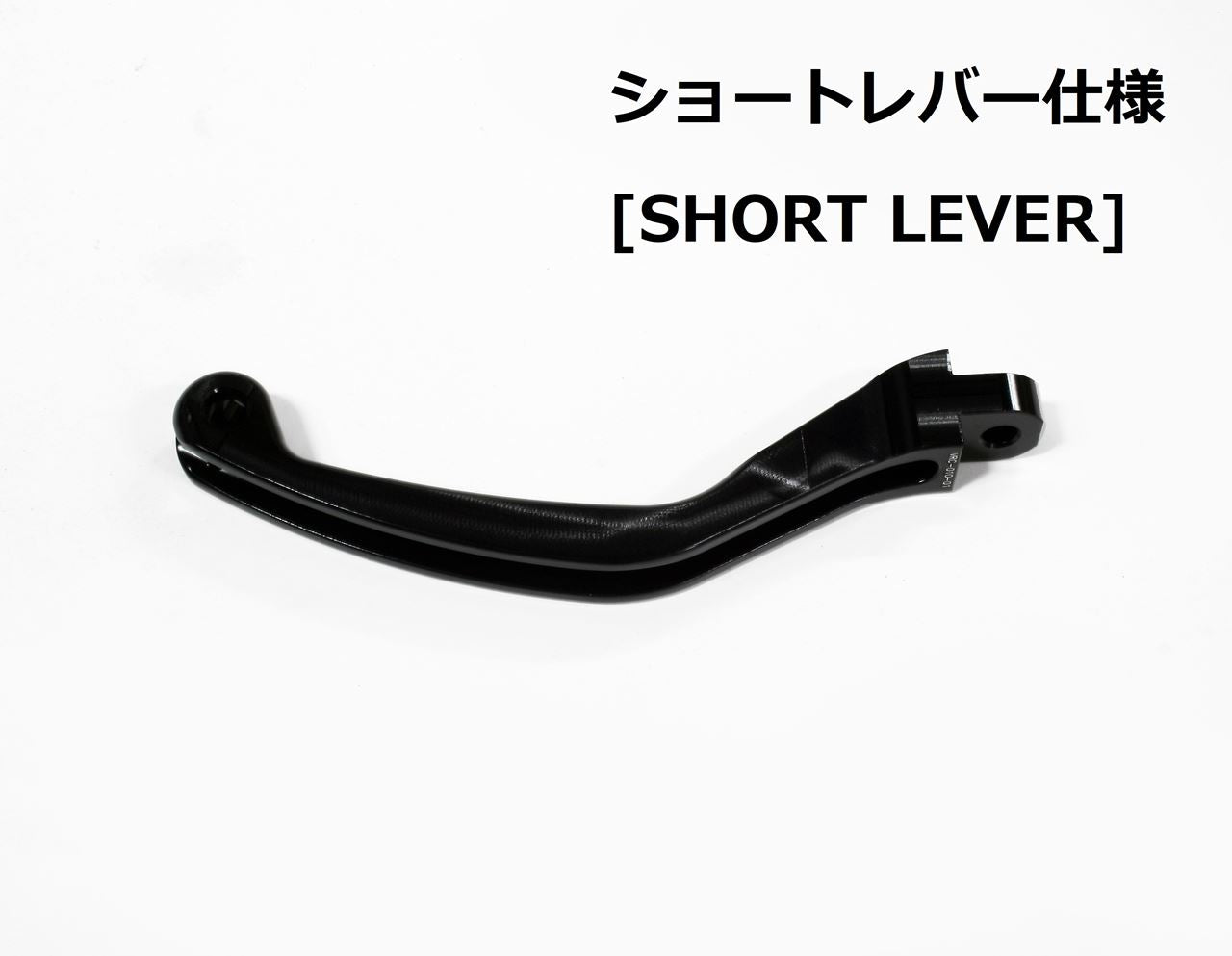

Lever length: Short

■Notes on images
*Images are for illustration purposes only. Products of different sizes and colors are included. Product design and specifications are subject to change without notice. Please understand.

Precautions
*Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid as it may cause malfunction or fluid leakage.
*Bolt pitch: P1.00
*Price is for the master cylinder body only.
*Ensure sufficient torque management during installation. The tightening torque for the M6 clamp bolt is 12N·m.
*If the measurement point for the vehicle height recorded on the vehicle inspection certificate is the master cylinder (primarily the master cup), changes exceeding ±40mm require a structural modification procedure.
