Fork Oil Seal DC4Y Black φ43 [43x55x9.5/10.5] 2 pcs (for 1 vehicle) GSX1300R 99-13/XJR1300 98-05

【ARIETE ARI.109 Fork Oil Seal DC4Y Black φ43 [43x55x9.5/10.5] 2 pcs (for 1 vehicle) GSX1300R 99-13/XJR1300 98-05 Motorcycle Parts】
■Product Description
Typically, NBR material is used for fork oil seals, but there is a more suitable material than NBR. That is 'XNBR'. This material, which also has high sealing performance, boasts approximately 3 times the abrasion resistance and approximately 1.5 times the fracture resistance of NBR.
For ZRX1100 etc., GSF1250 is ARI.109 OEM part number: [DUCATI:34921051A/HONDA:51490-MGE-003/KAWASAKI:92049-1522, 92049-0058, 92049-1496/SUZUKI:51153-40F00, 51153-44G00/YAMAHA:5D7-F3145-30, 4PU-23145-01, 45P-F3145-00]

■Compatible Models
KAYABA - KYB:Engine Displacement-:43 mm. FORK TUBES (2000-2016)
KAWASAKI:Engine Displacement 126cc-250cc:200 KDX (2000-):92049-1522
KAWASAKI:Engine Displacement 126cc-250cc:220 KDX (2000-):92049-1522
YAMAHA:Engine Displacement 126cc-250cc:TT R 250 (2004-2006):4PU-23145-00
KAWASAKI:Engine Displacement 251cc-400cc:300 KLX R (2000-):92049-1522
YAMAHA:Engine Displacement 251cc-400cc:MT-03 (ALL VERSIONS) (2016-2019):45P-F3145-00 // 5D7-F3145-30
YAMAHA:Engine Displacement 251cc-400cc:YZF-R3A (2017-2017):45P-F3145-00
YAMAHA:Engine Displacement 251cc-400cc:YZF-R3A (2018-2018):45P-F3145-00
KAWASAKI:Engine Displacement 401cc-750cc:ZX 6R NINJA (2004-2005):92049-0058
KAWASAKI:Engine Displacement 401cc-750cc:700 ZR-7 (1999-):92049-1496
KAWASAKI:Engine Displacement 401cc-750cc:750 ZX 7R (2000-):92049-1522
SUZUKI:Engine Displacement 401cc-750cc:GSR 600 (2006-2009):51153-40F00
SUZUKI:Engine Displacement 401cc-750cc:GSR 600 DEPO (2009-2010):51153-40F00
SUZUKI:Engine Displacement 401cc-750cc:650 SV (1999-):51153-40F00
SUZUKI:Engine Displacement 401cc-750cc:650 SV S (1999-):51153-40F00
YAMAHA:Engine Displacement 401cc-750cc:500 XP T-MAX (2008-2012):4PU-23145-01
YAMAHA:Engine Displacement 401cc-750cc:500 XP T-MAX ABS (2008-2013):4PU-23145-01
YAMAHA:Engine Displacement 401cc-750cc:500 XP T-MAX SV (2011-):4PU-23145-01
YAMAHA:Engine Displacement 401cc-750cc:500 XP T-MAX SV ABS (2011-):4PU-23145-01
YAMAHA:Engine Displacement 401cc-750cc:500 XP T-MAX WHITE MAX (2010-):4PU-23145-01
YAMAHA:Engine Displacement 401cc-750cc:XT 600 X (2010-2011):4PU-23145-01/43 PAIOLI
YAMAHA:Engine Displacement 401cc-750cc:YZF R6 (1999-2004):4PU-23145-01
YAMAHA:Engine Displacement 401cc-750cc:YZF-R6 (2017-2018):4PU-23145-01
YAMAHA:Engine Displacement 401cc-750cc:TENERE 700 (2019-2023):4PU-23145-0100
TM:Engine Displacement 51cc-125cc:MX 85 JUNIOR (2005-2006):43 PAIOLI-KAYABA
YAMAHA:Engine Displacement 51cc-125cc:125 MT-125 (ALL VERSIONS) (2016-2019):5D7-F3145-30 // 4PU-23145-00
YAMAHA:Engine Displacement 51cc-125cc:YZF-R125A (2016-2019):5D7-F3145-30
DUCATI:Engine Displacement 751cc-up:MONSTER 797 (2017-):34921051A/43 KAYABA
DUCATI:Engine Displacement 751cc-up:MONSTER 797 + (2017-):34921051A/43 KAYABA
DUCATI:Engine Displacement 751cc-up:MONSTER 821 (2016-2019):34921051A/43 KAYABA
DUCATI:Engine Displacement 751cc-up:MONSTER 821 DARK (2016-):34921051A/43 KAYABA
DUCATI:Engine Displacement 751cc-up:MONSTER 821 STRIPE (2016-2017):34921051A/43 KAYABA
DUCATI:Engine Displacement 751cc-up:HYPERMOTARD 939 (2016-2017):34921051A/43 KAYABA
DUCATI:Engine Displacement 751cc-up:HYPERSTRADA 939 (2016-):34921051A/43 KAYABA
DUCATI:Engine Displacement 751cc-up:MONSTER 1200 (2013-2017):43 KAYABA
HONDA:Engine Displacement 751cc-up:VFR 800 F (2017-):51490-MGE-003
HONDA:Engine Displacement 751cc-up:VFT 800 X (2017-):51490-MGE-003
HONDA:Engine Displacement 751cc-up:CB 1000 R (2016-2017):51490-MGE-003
HONDA:Engine Displacement 751cc-up:VFR 1200 (all versions) (2010-2016):51490-MGE-003
HONDA:Engine Displacement 751cc-up:CTX 1300 ABS (2014-2016):51490-MGE-003
KAWASAKI:Engine Displacement 751cc-up:KLV 1000 (2005-):92049-5070
KAWASAKI:Engine Displacement 751cc-up:VERSYS 1000 (all versions) (2012-2017):92049-1522
KAWASAKI:Engine Displacement 751cc-up:ZR X 1100 (2000-):92049-1522
KAWASAKI:Engine Displacement 751cc-up:ZX 11 (2000-):92049-1522
KAWASAKI:Engine Displacement 751cc-up:ZRX 1200 R (2004-2005):92049-1496
KAWASAKI:Engine Displacement 751cc-up:1200 ZX 12 R NINJA (2004-2005):92049-1522
KAWASAKI:Engine Displacement 751cc-up:ZZR 1200 (2004-2005):92049-1496
KAWASAKI:Engine Displacement 751cc-up:1400 GTR (2008-2017):92049-1522
KAWASAKI:Engine Displacement 751cc-up:1352 ZX 14 R (2006-2011):92049-1522
KAWASAKI:Engine Displacement 751cc-up:ZZR 1400 - ABS (all versions) (2006-2017):92049-1522
KAWASAKI:Engine Displacement 751cc-up:ZX 14 R (2012-2013):92049-1522
KAWASAKI:Engine Displacement 751cc-up:VN 1600 CLASSIC (2005-2007):92049-0007
KAWASAKI:Engine Displacement 751cc-up:VN 1600 CLASSIC TOURER (2005-2007):92049-0007
SUZUKI:Engine Displacement 751cc-up:DL1000 V-STROM L6 / L8 / L9 (2016-2019):51153-44G00
SUZUKI:Engine Displacement 751cc-up:GSX R 1000 (2001-2007):51153-40F00
SUZUKI:Engine Displacement 751cc-up:GSX-S 1000FA L9 (2019-2019):51153-44G00
SUZUKI:Engine Displacement 751cc-up:GSX-S1000 L6 / L8 / L9 (2016-2019):51153-44G00
SUZUKI:Engine Displacement 751cc-up:1000 TL R (1999-2000):51153-40F00
SUZUKI:Engine Displacement 751cc-up:1000 TL S (1999-2000):51153-40F00
SUZUKI:Engine Displacement 751cc-up:V-STROM 1000 XT (2016-2017):51153-44G00 // 51153-40F00
SUZUKI:Engine Displacement 751cc-up:BANDIT 1200 (2005-2006):51153-40F00
SUZUKI:Engine Displacement 751cc-up:BANDIT 1200 S (2005-2006):51153-40F00
SUZUKI:Engine Displacement 751cc-up:GS 1200 F (2005-):51153-40F00
SUZUKI:Engine Displacement 751cc-up:BANDIT 1250 (2007-2011):51153-40F00
SUZUKI:Engine Displacement 751cc-up:BANDIT 1250 S - SA (2007-2009):51153-40F00
SUZUKI:Engine Displacement 751cc-up:BANDIT 1250 SA TRAVELLER (2009-):51153-40F00
SUZUKI:Engine Displacement 751cc-up:GSX 1250 (2010-2012):51153-40F00
SUZUKI:Engine Displacement 751cc-up:NEW GSX 1250 FA (2010-2012):51153-40F00
SUZUKI:Engine Displacement 751cc-up:1300 B KING (2007-2010):51153-40F00
SUZUKI:Engine Displacement 751cc-up:GSX R HAYABUSA 1300 (2005-2009):51153-40F00
SUZUKI:Engine Displacement 751cc-up:INTRUDER M 1600 (2005-):51153-40F00
TRIUMPH:Engine Displacement 751cc-up:ROCKET III ALL VERSIONS (2004-2016)
TRIUMPH:Engine Displacement 751cc-up:KINGPIN (2004-2006)
TRIUMPH:Engine Displacement 751cc-up:NESS KINGPIN (2005-)
TRIUMPH:Engine Displacement 751cc-up:NESS VEGAS (2005-)
TRIUMPH:Engine Displacement 751cc-up:TOURING CRUISER (2005-)
TRIUMPH:Engine Displacement 751cc-up:VEGAS (2003-2006)
TRIUMPH:Engine Displacement 751cc-up:VEGAS 8-BALL (2005-)
TRIUMPH:Engine Displacement 751cc-up:8-BALL HAMMER (2010-2015)
TRIUMPH:Engine Displacement 751cc-up:8-BALL KINGPIN (2008-2010)
TRIUMPH:Engine Displacement 751cc-up:ARLEN NESS JACKPOT (2008-)
TRIUMPH:Engine Displacement 751cc-up:HAMMER (2005-2008)
TRIUMPH:Engine Displacement 751cc-up:HAMMER PREMIUM (2006-2008)
TRIUMPH:Engine Displacement 751cc-up:HAMMER S (2007-2009)
TRIUMPH:Engine Displacement 751cc-up:KINGPIN TOUR (2008-2009)
TRIUMPH:Engine Displacement 751cc-up:VEGAS 8-BALL (2006-2011)
TRIUMPH:Engine Displacement 751cc-up:VEGAS JACKPOT (2006-2008)
TRIUMPH:Engine Displacement 751cc-up:VEGAS LOW (2008-2009)
TRIUMPH:Engine Displacement 751cc-up:KINGPIN (2007-2010)
TRIUMPH:Engine Displacement 751cc-up:KINGPIN LOW (2009-)
TRIUMPH:Engine Displacement 751cc-up:NESS JACKPOT (2007-)
TRIUMPH:Engine Displacement 751cc-up:NESS JACKPOT PREMIUM (2006-)
TRIUMPH:Engine Displacement 751cc-up:VEGAS (2007-2010)
TRIUMPH:Engine Displacement 751cc-up:VEGAS PREMIUM (2006-2008)
TRIUMPH:Engine Displacement 751cc-up:JACKPOT PREMIUM (2006-2008)
TRIUMPH:Engine Displacement 751cc-up:8-BALL KINGPIN (2011-2012)
TRIUMPH:Engine Displacement 751cc-up:CORY NESS CROSS COUNTRY (2011-2012)
TRIUMPH:Engine Displacement 751cc-up:CORY NESS JACKPOT (2008-2010)
TRIUMPH:Engine Displacement 751cc-up:CROSS COUNTRY (2010-2017)
TRIUMPH:Engine Displacement 751cc-up:CROSS COUNTRY 8-BALL (2014-2016)
TRIUMPH:Engine Displacement 751cc-up:CROSS COUNTRY TOURING (2013-2016)
TRIUMPH:Engine Displacement 751cc-up:CROSS ROADS (2010-2012)
TRIUMPH:Engine Displacement 751cc-up:CROSS ROADS CLASSIC (2013-2014)
TRIUMPH:Engine Displacement 751cc-up:HAMMER (2009-2012)
TRIUMPH:Engine Displacement 751cc-up:JUDGE (2013-2014)
TRIUMPH:Engine Displacement 751cc-up:VEGAS (2011-)
TRIUMPH:Engine Displacement 751cc-up:VEGAS JACKPOT (2009-2013)
TRIUMPH:Engine Displacement 751cc-up:ZACH NESS VEGAS (2011-2012)
TRIUMPH:Engine Displacement 751cc-up:BOARDWALK (2013-2014)
TRIUMPH:Engine Displacement 751cc-up:GUNNER (2014-2017)
TRIUMPH:Engine Displacement 751cc-up:HAMMER S (2010-2012)
TRIUMPH:Engine Displacement 751cc-up:HAMMER S (2016-2017)
TRIUMPH:Engine Displacement 751cc-up:HARD BALL (2012-2013)
TRIUMPH:Engine Displacement 751cc-up:HIGH BALL (2012-2017)
TRIUMPH:Engine Displacement 751cc-up:KINGPIN (2011-2012)
TRIUMPH:Engine Displacement 751cc-up:MAGNUM (2015-2017)
TRIUMPH:Engine Displacement 751cc-up:NESS CROSS COUNTRY (2013-2014)
TRIUMPH:Engine Displacement 751cc-up:VEGAS (2012-)
TRIUMPH:Engine Displacement 751cc-up:VEGAS (2016-2017)
TRIUMPH:Engine Displacement 751cc-up:VEGAS 8-BALL (2012-2017)
YAMAHA:Engine Displacement 751cc-up:FZ8 N (2011-2013):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZ8 NA (2011-2013):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZ8 S (2011-2013):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZ8 SA (2011-2013):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:TDM 900 (all versions) (2002-2022):4PU-23145-0100
YAMAHA:Engine Displacement 751cc-up:FZ1 (2006-2009):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZ1 FAZER (2006-2012):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZ1 FAZER ABS (2007-2012):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZ1 N (2011-):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZ1 NA (2010-2011):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:FZS 1000 FAZER (2004-2005):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:MT-10 (ALL VERSIONS) (2016-2019):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:MT-10D (2017-2017):2KS-231E0-00
YAMAHA:Engine Displacement 751cc-up:YZF R1 (2002-2013):4PU-23145-01
YAMAHA:Engine Displacement 751cc-up:YZF-R1 (2016-2019):4PU-23145-01
YAMAHA:Engine Displacement 751cc-up:YZF-R1M (2017-2018):2KS-231E0-00
YAMAHA:Engine Displacement 751cc-up:BT 1100 BULLDOG (2002-2006):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:1200 V MAX (1992-2001):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:XT1200Z SUPER TENERE (2017-2019):4PU-23145-01
YAMAHA:Engine Displacement 751cc-up:FJR1300 (ALL VERSIONS) (2016-2018):4PU-23145-01
YAMAHA:Engine Displacement 751cc-up:1300 XJ R (1995-2011):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:1300 XJ R SP (1999-2001):4PU-23145-00
YAMAHA:Engine Displacement 751cc-up:MT-01 (2005-2011):4NK-23145-00/43 PAIOLI

■Specifications

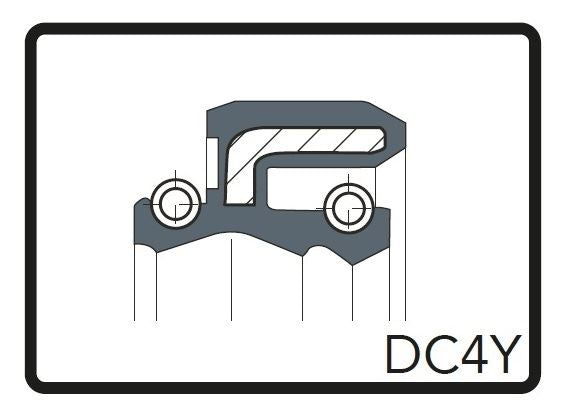

Type: DC4Y
Color: Black
Size: φ43 [43x55x9.5/10.5]
Outer Diameter: 55mm
Inner Diameter: 43mm
Fork Diameter: φ43mm
Height: 9.5 to 10.5mm
Material: XNBR (Carboxylated Nitrile Rubber)
Quantity: 2 pcs (for 1 vehicle)
Accessories: Fork Seal Grease
Usage Precautions: *Compatibility information is based on overseas vehicle specifications. The front/rear forks may differ depending on the destination, so please check the actual vehicle and purchase the required dimensions.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Thank you for your understanding.
