LED Customizing Kit Sequential Type CB400SB

【CF POSH 470980 LED Customizing Kit Sequential Type CB400SB】
・Uses 24 high-brightness LEDs. Includes a dedicated flasher relay. While manufactured to meet inspection criteria, please note that the final decision regarding vehicle inspection compliance currently rests with the inspector.
・Board-type LED sequential (chain-type) turn signals to be integrated into genuine turn signals. A set for one vehicle.
・Not only converts genuine turn signals to LED, but also allows for sequential operation.
◎Specifications of Sequential Turn Signals
・1) Cycle 1 set-0.5 set (60 to 120 flashes per minute - product flashes 73-75 times/minute)
・Complies with Article 137 (Direction Indicators) of the Announcement stipulating the details of safety standards for road transport vehicles 2009.10.24 (Section 2).
・2) When sequential lighting causes the light source to flash, the following conditions must be met:
・Lamp test for motorcycles, etc. (Regulation No. 50)
・Each light source illuminates after it is switched on and remains illuminated until the end of the ON cycle.
・The series of light source illuminations occurs uniformly and progressively from the inside to the outer edge of the apparent surface.
・A single continuous line with no repeated alternating changes in the vertical direction (e.g., no waves).
・The variation must end within 200ms after the start of the ON cycle.
*While manufactured to meet vehicle inspection criteria (1, 2 above), please note that the final decision regarding vehicle inspection compliance currently rests with the inspector.
Compatible with:
・Honda: Displacement 251cc-400cc: CB400SB [NC39] (05)
・Honda: Displacement 251cc-400cc: CB400SF [NC39] (04-05)
・Honda: Displacement 251cc-400cc: CB400SF Revo [NC42] (08-15)
・Honda: Displacement 251cc-400cc: CB400SB Revo [NC42] (08-15)
Applicable models:
・CB400SF 04-05/08-15/SB 05/08-15

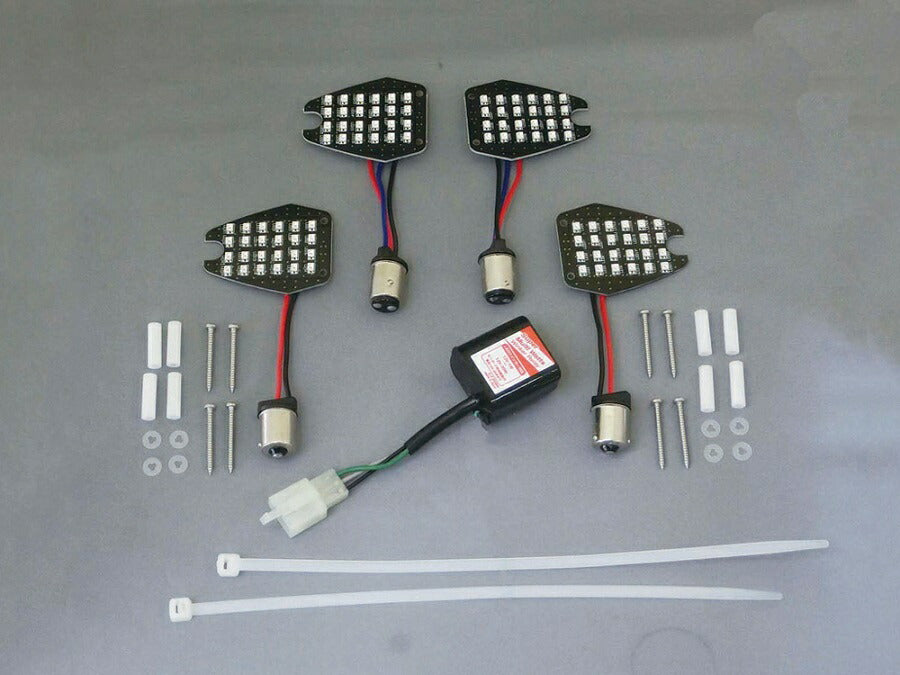

Set contents/accessories:
・LED customizing board sequential type Assy
・3-wire 180° pin type for front turn signals 2pc
・2-wire 180° pin type for rear turn signals 2pc
・LED-compatible dedicated flasher relay Type 3 (200817_CF-POSH made) 1pc
・Tapping screws M3×30 4pc
・Plastic spacers 4pc
・Nylon washers for tapping 4pc
・Cable ties (L) 2pc
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
