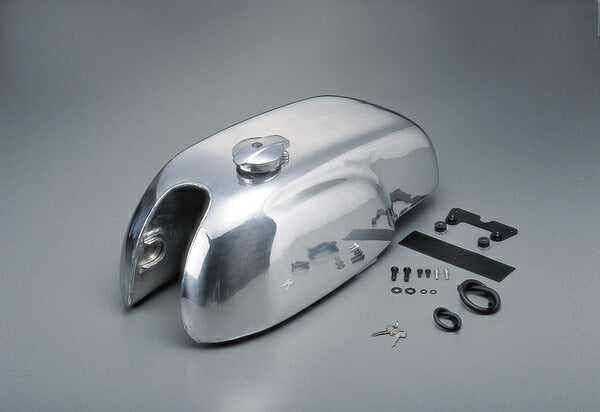

Norton-type aluminum gas tank for SR400/500

[Daytona 66678 Norton Type Aluminum Gas Tank SR400/500 Daytona 66678]
SR400/500 ('80-'08)
* Cannot be installed on '78-'79 models as the dedicated seat interferes with the frame bridge.
* Cannot be installed on SR400 ('10) FI as the tank bottom plate shape has changed.
Norton Manx type long tank. Requires simultaneous installation with the dedicated seat (discontinued). Made of aluminum with a buffed finish.
The tank cap is a lockable enot-style. Tank capacity approx. 18L (reserve approx. 2.5L / 66678 only).
Compatible Seats
・Norton type aluminum tank specific semi-double seat (discontinued) only.
・Please use commercially available long tank compatible seats.
The following seats cannot be installed
・Stock seat ・COZY seat (all products) ・70's Surf Line Seat
・Custom seats other than the Norton type aluminum tank specific seat (discontinued) (all products)
Due to the manufacturing process, aluminum gas tanks may develop "shibori-jiwa" (vertical indentations).
We cannot accept complaints regarding "shibori-jiwa", so please be aware of this before purchasing.
● If you have straight handlebars or clip-on handlebars installed, or if the turn signals are installed next to the under bracket, the use of a separately sold handle stopper (26157) is required.
When used on public roads, always install a vintage top bridge (48218/48219/48220) simultaneously and use it in a manner that does not violate regulations.
Please note that depending on the shape of the turn signal, even with a stopper, it may still interfere with the tank, making simultaneous installation impossible.
● The surface is untreated to preserve the luster of the aluminum. Maintenance is required to maintain the luster.
● Use the genuine fuel cock. When installing, it is recommended to replace the O-ring with a new one.
Genuine parts #1J7-24512-00 (-'92/7), 2G2-24512-00 ('92/8-).
Not handled by our company.
● Do not fill with more than 17L of gasoline when refueling.
About aluminum tanks: Due to the manufacturing process, aluminum gas tanks may develop "shibori-jiwa" (vertical indentations). We cannot accept complaints regarding "shibori-jiwa", so please be aware of this before purchasing.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
