Repair part Intermediate connector
Repair part Intermediate connector
SKU:d-91786
Regular price
¥417
Regular price
¥550
Sale price
¥417
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Orders placed by 2 PM will be shipped the same day.
配送方法／参考送料：Shipping via Mail Service: ¥330
5
points to be awarded
Couldn't load pickup availability
[Daytona 91786 Repair Part - Intermediate Connector]
This set includes intermediate connectors and terminals used in Daytona chargers and motorcycle-specific power supply series.

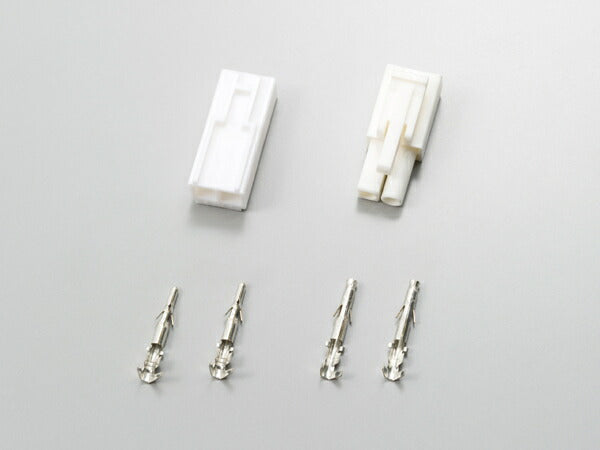

●Intermediate connector (male/female) x 1 each, terminal (male/female) x 2 each.
●Applicable wire gauge: 0.5-1.25 mm² (AWG20-16)
●Applicable wire insulation outer diameter: 1.9-3.4 mm
●Rated current: MAX 10A (AC/DC)
●Rated voltage: MAX 300V (AC/DC)
●Operating temperature range: -25℃ to 90℃
●Contact resistance: 7mΩ or less
*Since the terminals are thin, please ensure crimping is performed accurately.
*Not waterproof.
*Images are for illustration purposes only. The design and specifications of the product shown may change without prior notice. Thank you for your understanding.
This set includes intermediate connectors and terminals used in Daytona chargers and motorcycle-specific power supply series.
●Intermediate connector (male/female) x 1 each, terminal (male/female) x 2 each.
●Applicable wire gauge: 0.5-1.25 mm² (AWG20-16)
●Applicable wire insulation outer diameter: 1.9-3.4 mm
●Rated current: MAX 10A (AC/DC)
●Rated voltage: MAX 300V (AC/DC)
●Operating temperature range: -25℃ to 90℃
●Contact resistance: 7mΩ or less
*Since the terminals are thin, please ensure crimping is performed accurately.
*Not waterproof.
*Images are for illustration purposes only. The design and specifications of the product shown may change without prior notice. Thank you for your understanding.
適合車種の情報は現在登録されていません。
