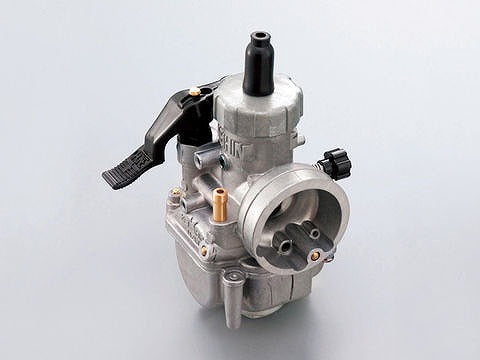

KEIHIN Carburetor Body Type 1 PE20

【Daytona 91843 KEIHIN Carburetor Body Type 1 PE20 Carburetor】
・KEIHIN PE carb body only. ・Can be combined with a separately sold PE carb installation kit, or used as an upgrade or replacement part for existing bolt-on PE carb kits. ・The factory setting is standard, so fine-tuning will be required for each vehicle. ・Please refer to the setting parts on page 237 of the Daytona catalog and purchase any necessary parts separately. ・The PE28 carb cannot be installed with the PE carb installation kit. ■PE Carb Body Factory Setting Type: Type 1 (91843) PE20 (Standard top cap without cable adjuster) Main Jet: #90 Slow Jet: #65 (with air bleed) Throttle Valve: #3.0 Manifold side outer diameter: Φ30.5 Air filter side outer diameter: Φ45
・Type: Type 1 (PE20)
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
