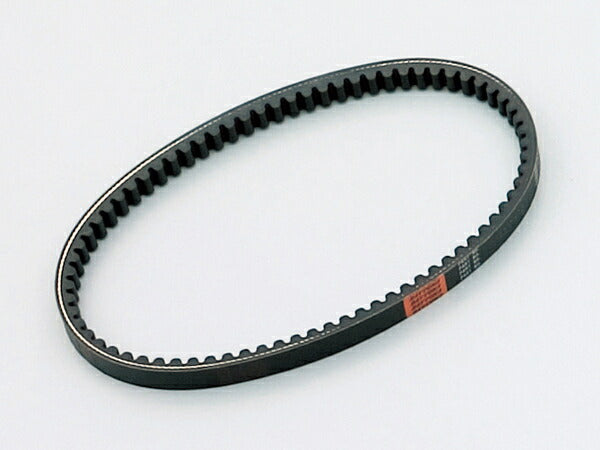

Drive V-belt (VSE92+KEV) Reinforced Type S-JOG ZR

【Daytona 95425 Drive V-Belt (VSE92+KEV) Reinforced Type S-JOG ZR】
Daytona reinforced V-belts are developed to accommodate the higher power and tuning of sports scooters.
The lower rubber is changed from a standard single-layer rubber structure to a double-layer structure of standard rubber + high-elasticity heat-resistant compound rubber, resulting in a high-grade finish that reduces belt slip.
The core material uses 100% aramid fiber (though some products may use other core materials). Furthermore, aramid fiber is blended into the upper and lower rubber, improving the lateral pressure rigidity, tensile strength, and anti-slip properties required of a V-belt.
The blending ratios of each material are optimally chosen to match the engine characteristics of each manufacturer's vehicle.
The belt length is set and quality-controlled to achieve the same reduction ratio as the original when set on the pulley, so as not to adversely affect slip, starting acceleration, or top speed.
●As a result of testing, some products that performed well with materials other than aramid core wires use other core wire materials + different highly elastic rubbers.
■Axis 90 ('90~'99)
■JOG Sports 90 ('90~'97) (3WF1~5)
■Remote Control JOG/ZR ('01~'07)
■Super JOG Z ('93~'94)/ZR ('95~)
■JOG Z ('04, '06~'07) (CV50Z: 5SW4/6)
■JOG Z ('98) (YV50Z: 5EM1)
■JOG Z ('90)
■BASIC JOG (5XN1/2)
■JOG ('00) (5EM3)
■JOG Space Innovation ('99) (5EM2)
■JOG/C ('98~'99) (YV50/C: 5BM1~3)
■Met-in JOG ('97~) (3KJ5/7/9/A~H)
■JOG Aprio ('96~'00) (4JP5/7/8/9/A)
■JOG Aprio ('95~'97) (4LV2/3/4)
■JOG Poche ('92~'99)
■AXIS50 Profoot/BOX ('92) (3VP5/6)
■Vino (early carb model)
('97~'04/2) (5AU: SA10J)
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
