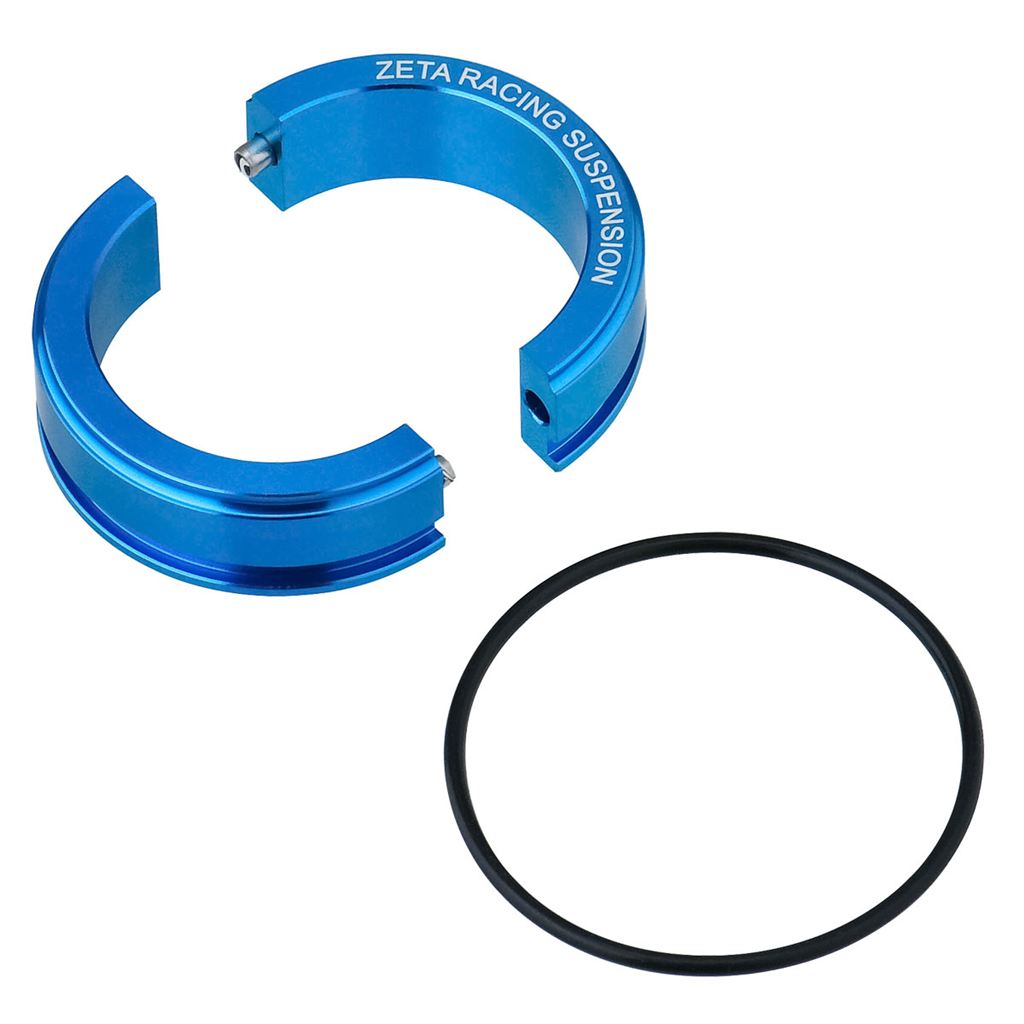

Rear shock lowdown outer kit φ46 H-Blue Lowdown (-40mm)

[ZETA C0350 Rear Shock Lowering Outer Kit φ46 H-Blue Lowering (-40mm) Ride Height Adjustment Off-Road Motocross Dirtfreak]
■Product Description

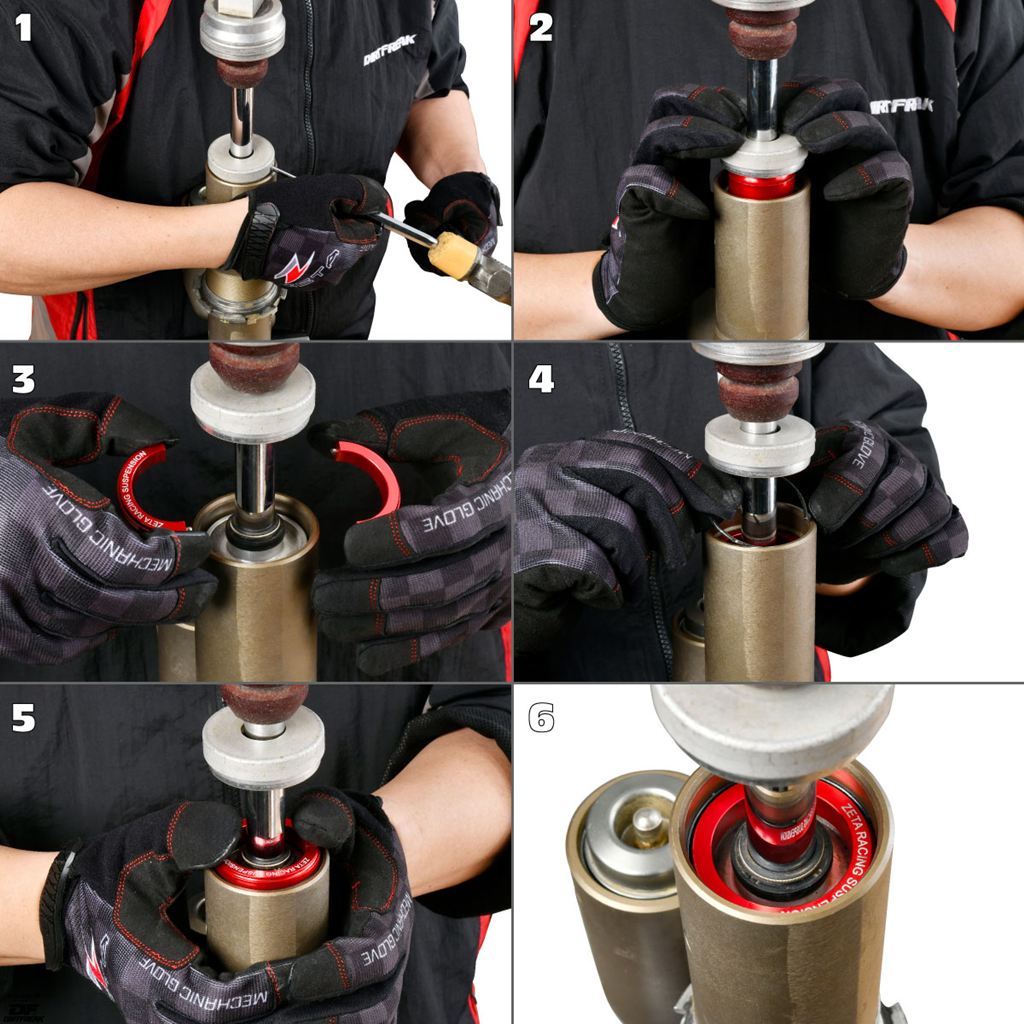

Can be installed without disassembling the rear shock absorber, offering excellent workability.

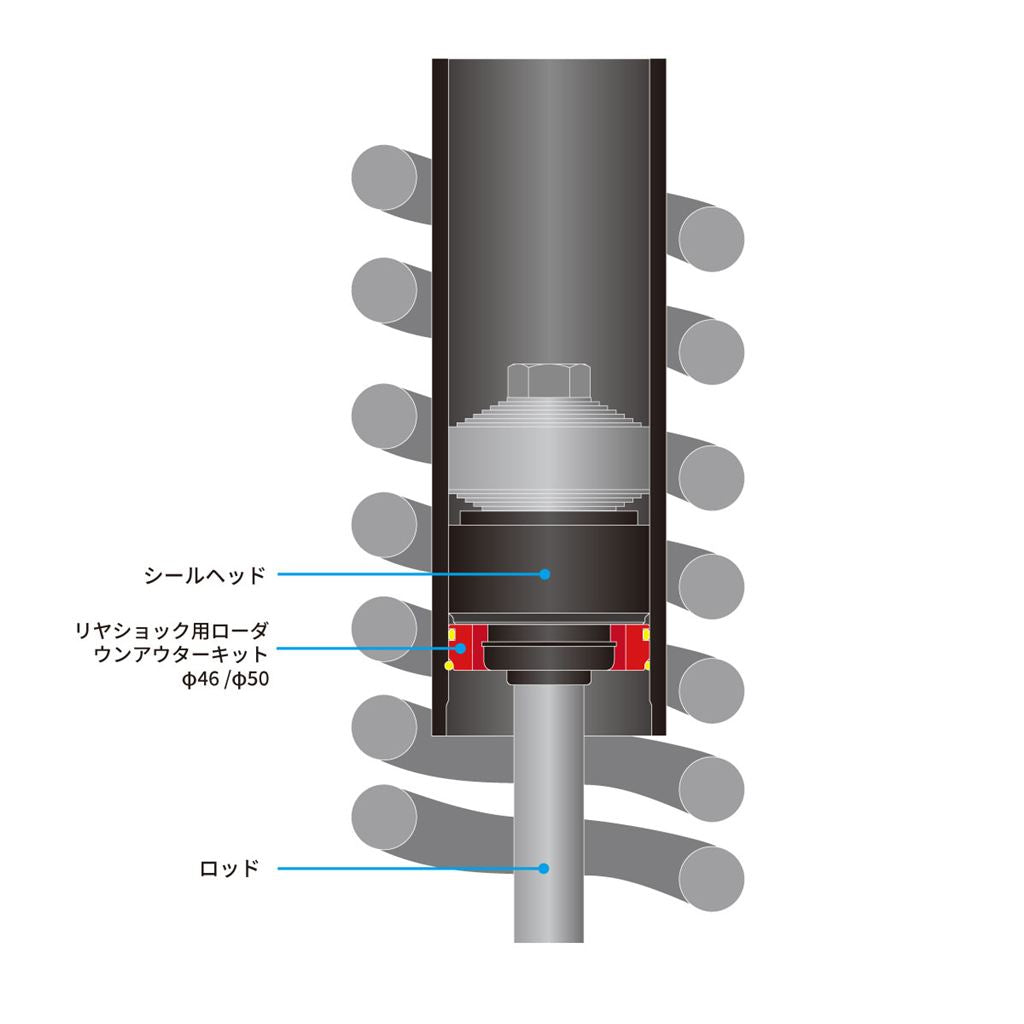

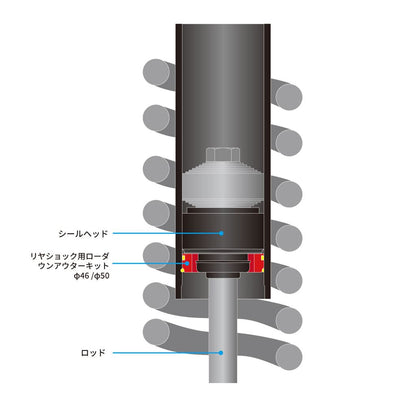

By pressing down and securing the seal head from the outside of the damper, it's possible to lower the suspension by -30mm to -50mm while maintaining its performance.

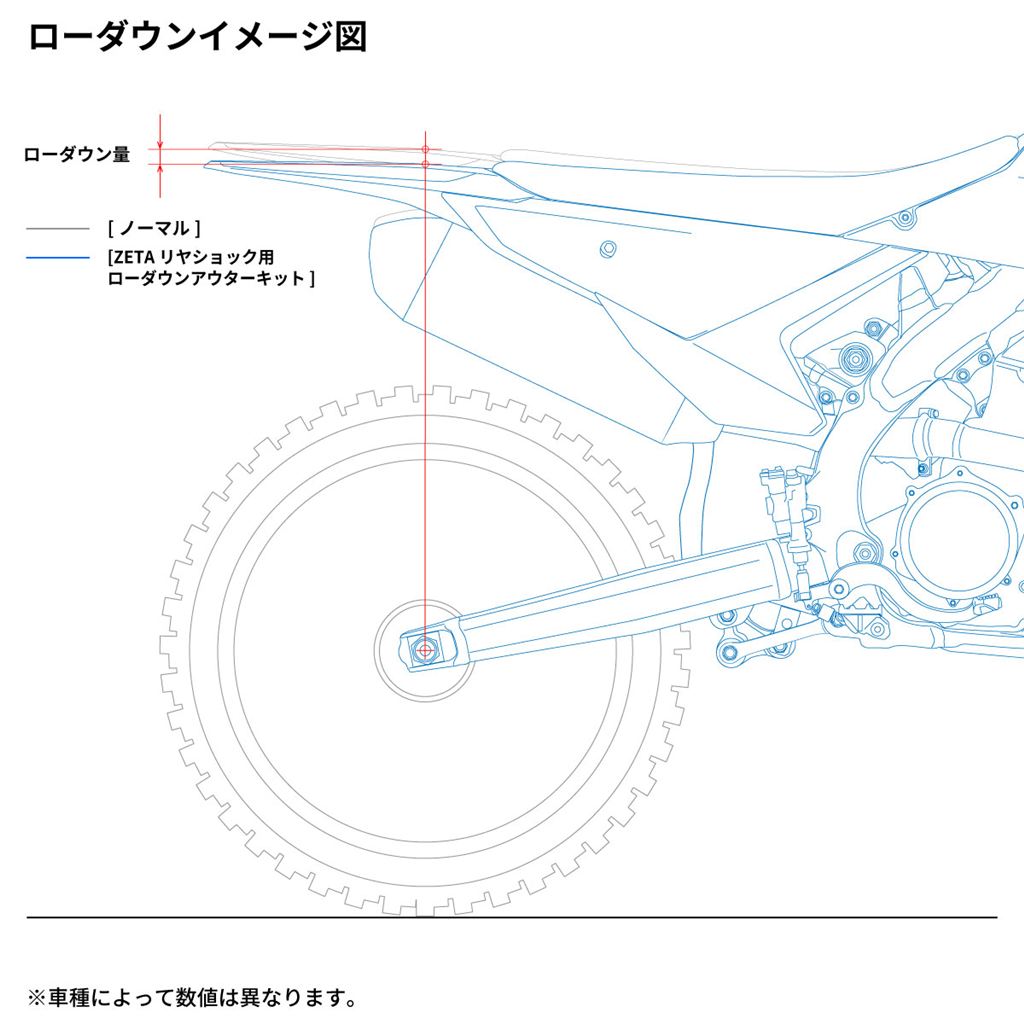

Since the extended length of the suspension is shortened without changing the overall length at full bottom, problems such as the fender hitting the tire, common in lowering tunes, are less likely to occur.
Further lowering is possible when used in conjunction with a lowering link.
Compatible with cylinder inner diameters of φ46 (KYB/WP) and φ50 (KYB/SHOWA/WP).
*Draining oil and gas is required.

■Specifications
Type: φ46
Color: H-Blue
Lowering Amount: -40mm
Material: High-strength aluminum alloy
Surface Treatment: Anodized finish
Weight: 23g

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.

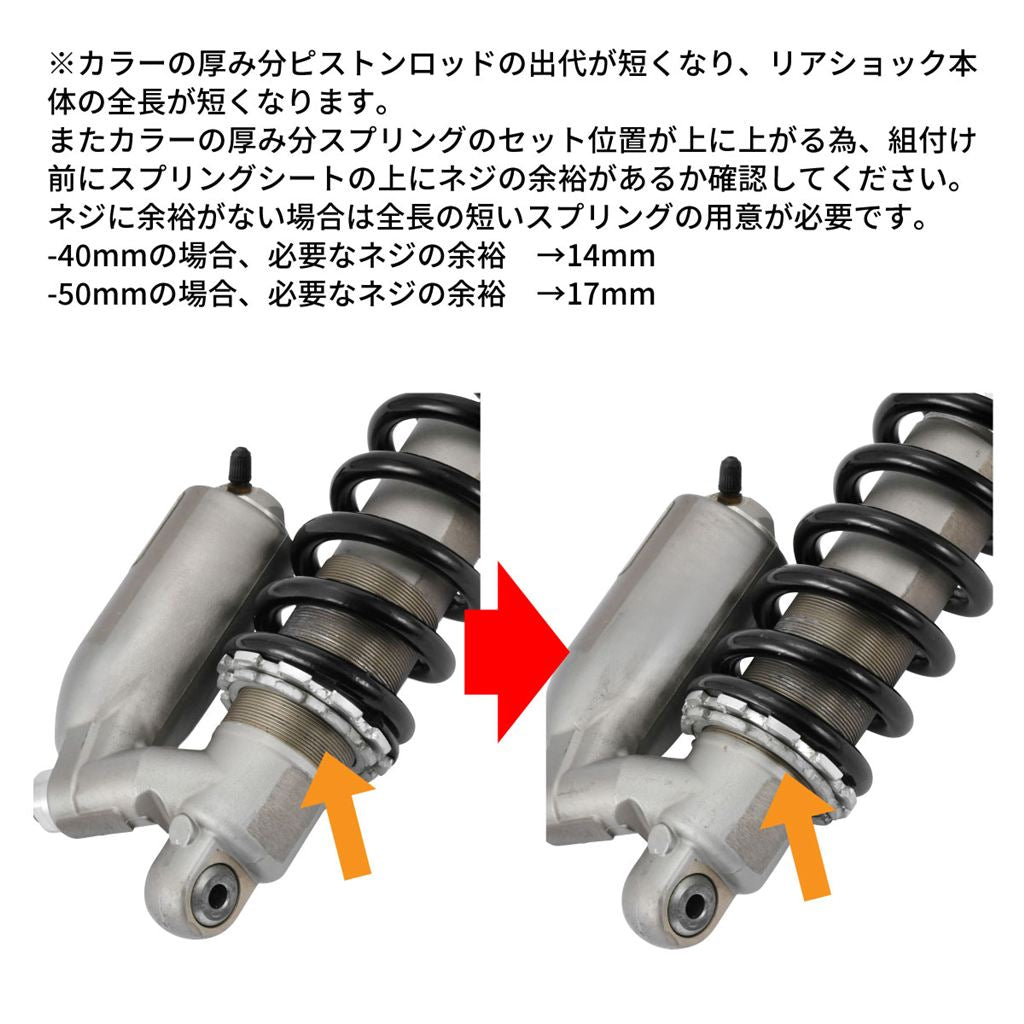

*For some models, the piston rod's protrusion length will be shortened by the thickness of the collar, and the overall length of the rear shock absorber itself will be reduced. Also, because the spring's set position moves up by the thickness of the collar, please check if there is sufficient thread above the spring seat before assembly. If there is not enough thread, a shorter spring will be required.
