Off-road Suspension Kit for Cross Cub 110

【ZETA Dirt Freak ZE56-9510 Off-Road Suspension Kit Cross Cub 110 Ride Height Adjustment Kit】
・The front features a high-lift specification with a +30mm increase in stroke and overall length by replacing with a longer cylinder.
・Dedicated front springs are set, increasing the spring rate by 20% compared to stock to match the extended stroke.
・Accordingly, the damping effect is also adjusted, allowing for supple operation with a long stroke, improving road holding on dirt, and suppressing bottoming out.

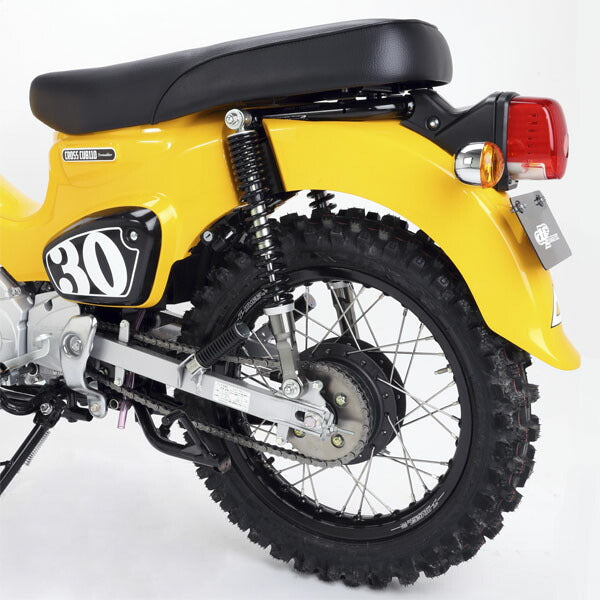

・The rear features a long bracket machined from 7000 series aluminum.
・This high-lift specification extends the overall length by +30mm by replacing the genuine rear shock bracket.
・Needle bearings are incorporated in the shock mounting part at the bottom of the bracket.
・Compared to standard rubber bushings, it rotates without resistance, allowing the damper's extension and compression movements to absorb impacts more smoothly without unnecessary resistance.
Compatible models:
HONDA:
・CROSS CUB110 / '18-'19
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
