End cover regulator with charge lamp

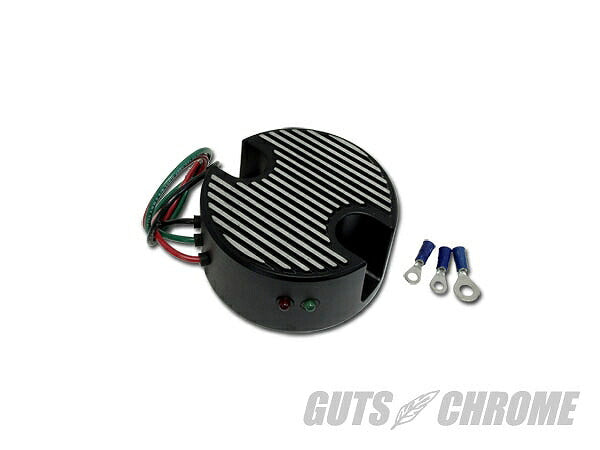

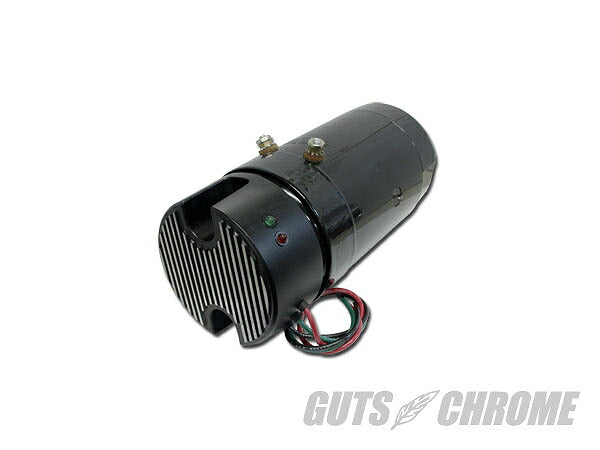

[GUTS CHROME 8600-8395 End Cover Regulator with Charge Lamp GUTS CHROME 8600-8395]
End cover regulator 12V
For genuine and Cycle Electric generators
[Charge Lamp]

Only green light on... Generator is operating normally.
Only red light on... Generator is not operating normally (inspection and repair required).
Both green and red lights on... Charging state. (If this state continues for a long time, inspection and repair are required.)
Both green and red lights off... Generator is not operating.
*When ignition is ON
[Wiring]

Green wire... To generator "F" (FIELD)
Red wire... To generator "A" (ARMATURE)
Black wire... To battery positive
*Always disconnect the battery negative before performing wiring work.
●Manufacturer: GUTS CHROME
●OEM Part Number: -
●Made in USA
●Please feel free to contact us with any questions or inquiries about compatible models.
