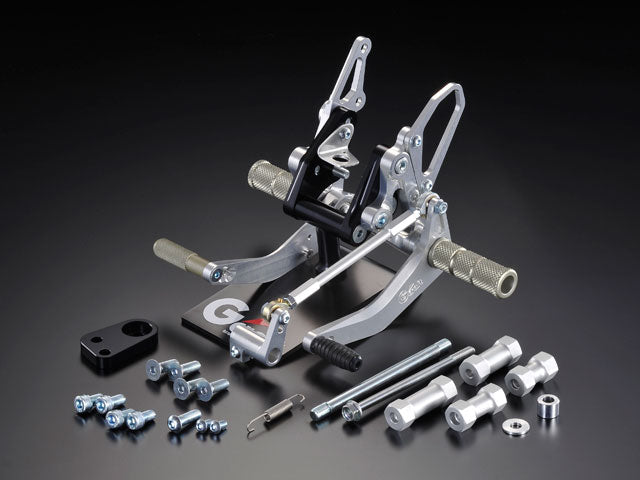

Backstep Disc Brake Type Silver Anodized Chaly

[G-Craft 32003 Rear Set Disc Brake Silver Anodized Chaly]
Can be installed without modifying the frame.
The pedal's moving parts come standard with bearings, improving shift changes and brake operability.
The position is 120mm back.
Please use a master cylinder for NSR50/80 or XR Motard 50/100.
Compatible models
For Chaly
Surface treatment: Silver anodized finish
Material: A2017, A5083 material
Notes
*This rear set cannot be used on CF50-1 (CF50-1000002 to 1006100) or CF50/70AB (CF50-3000011 to 3109450) / (CF70-3005343 to 3007563) due to different brake mechanisms.
*A separately sold stand holder (part number 32090) is required.
*Modification of the generator cover is required for installation.
*Kick pedal replacement is required (recommended Takegawa 307-1083900)
*In the case of low-down vehicles using suspensions shorter than normal, the chain may interfere with the base plate included with the rear set. Please take measures such as adjusting the chain tension or using a larger front sprocket.
*Even when assembled with G-Craft's recommended product configuration, there have been cases where the kick pedal and step bar interfere due to increased displacement or frame deformation. In such cases, the step bar needs to be shortened.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
