Backstep Drum Silver Alumite 6V Dax

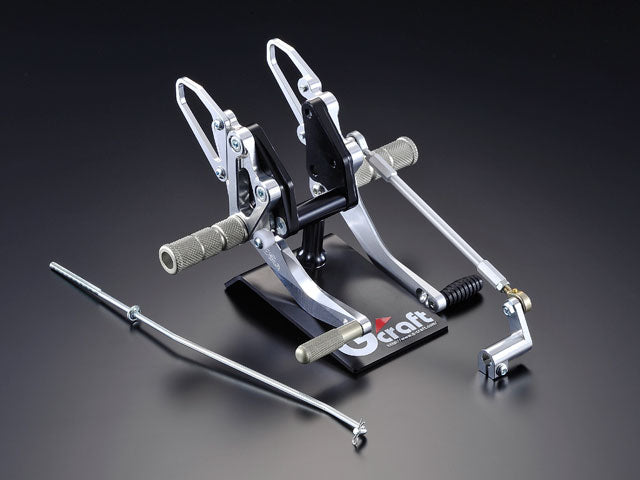

[G-Craft 32086 Back Step Drum Silver Anodized 6V Dax]
Can be installed without modifying the frame.
The pedal's movable parts are equipped with bearings as standard, improving operability for gear shifts and braking.
Can be converted to disc brakes by using the conversion kit (32061).
The position is 120mm back from standard. (Height is the same as normal)
Requires kick pedal replacement (recommended Kitaco 307-1083900)
Compatible models
For 6V Dax
Surface treatment: Silver anodized finish
Material: A2017, A5083
Precautions
*Separate stand holder (part number 32090) is required.
*Depending on the model year, the chain cover and generator cover may require processing such as shaving.
*Brake rod is not included. Please purchase a brake rod separately to match the swingarm installed on your vehicle.
*Cannot be installed on 12V Dax due to different installation positions (relationship between engine mounting bolt and pivot).
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
