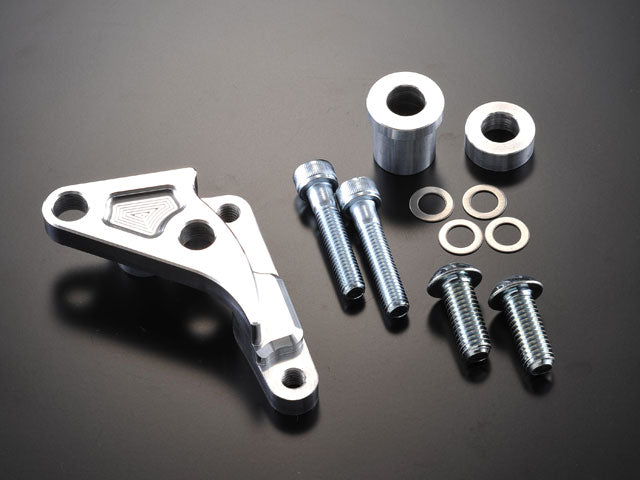

Caliper Support for KSR110 Forks, Brembo 4P, Silver Anodized

[G-Craft 33177 KSR110 Fork Caliper Support Brembo 4P Silver Anodized]
This product allows you to install a Brembo 4-pot caliper when using a KSR110 fork with a G-Craft KSR stem (181mm pitch) and G-Craft 10-inch wheels.
Exclusively for G-Craft KSR fork stems (181mm pitch).
For KSR110 forks, Brembo 4P calipers (for right side, mounting pitch 40mm, cast type) are used.
We have not confirmed installation with machined-type calipers.
10-inch wide wheels up to 2.75J can be installed, but there may be interference between the caliper and wheel due to individual differences. (Please grind down the interfering parts to resolve this.)
Support mounting pitch: 65mm
*KSR-1, KSR-2 support mounting pitch: 45mm
Surface treatment: Silver anodized finish
Material: A2017 alloy
Precautions
*Floating disc rotors may interfere with the floating pins, requiring modification such as grinding the brake pads.
*The image is for illustrative purposes only, and the design and specifications of the product shown are subject to change without notice. Thank you for your understanding.
