Aluminum Billet Oil Cooler Classic Type 7-Row Silver Anodized for Monkey, Monkey R, Dax

【G-Craft 37036 Aluminum Billet Oil Cooler Classic Type 7-Stage Silver Anodized Monkey Monkey R Dax】
Introducing a new classic-style model for billet oil coolers.
Its finned design, matching the engine's form, is full of functional beauty.
Differentiating itself from conventional racing designs, this classical design allows you to choose according to your vehicle's aesthetic.
While the overall size has been reduced, cooling performance has been maintained.
Please use G-Craft oil coolers as a supplementary component.

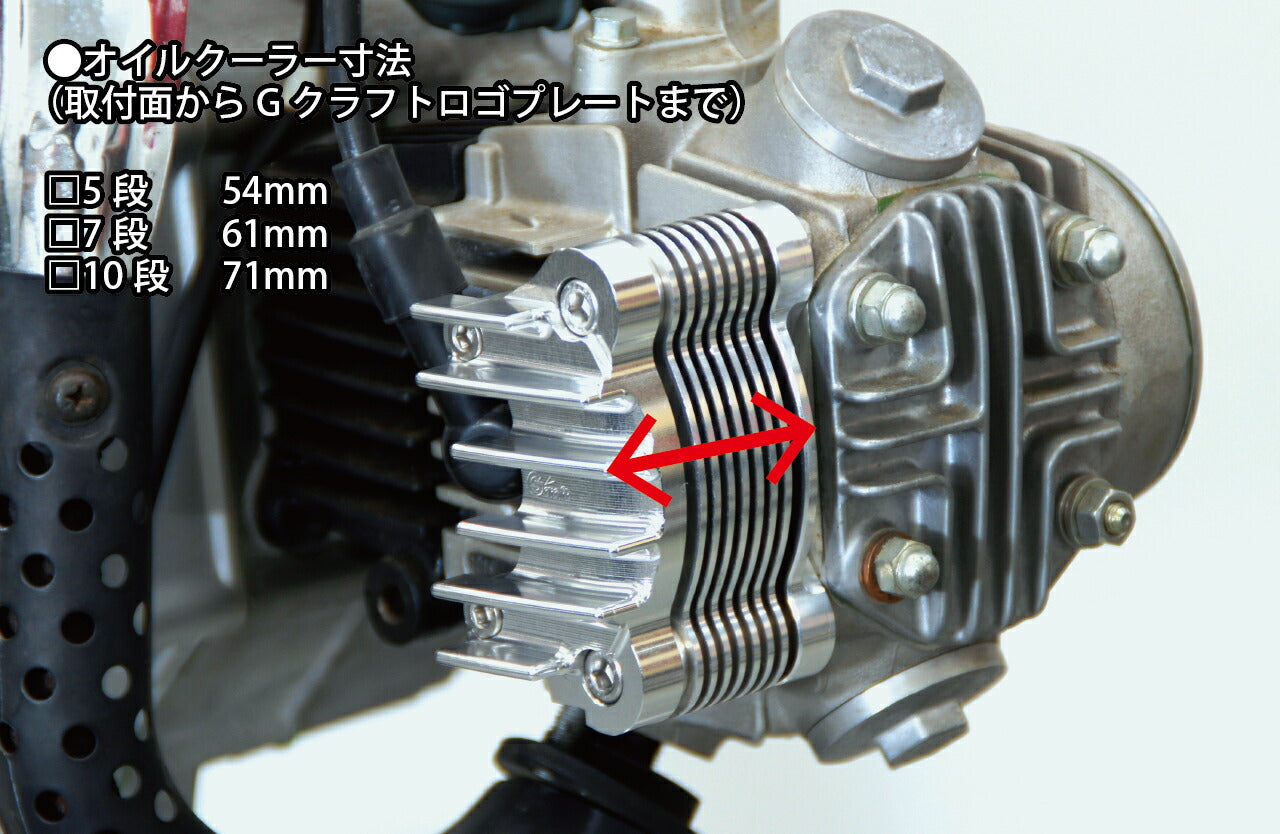

●Oil cooler dimensions (from mounting surface to G-Craft logo plate)
5-stage/54mm, 7-stage/61mm, 10-stage/71mm
●Compatible cylinder heads
Monkey 6V, Monkey 12V, Dax 6V, Dax 12V, Monkey R, various aftermarket regular heads
●Incompatible cylinder heads (or vehicle models)
Takegawa Super Head (due to different mounting shape)
KITACO Ultra SE (due to different spark plug angle)
Motra (interferes with frame)
Chaly (interferes with frame)
CT110 (different engine type)
Cub (can be installed by removing leg shield)
Not compatible with FI models
Type: 7-stage
Surface treatment: Silver anodized finish
Material: A2017, A5083, A5052 material
Precautions
*6V engines (types where the cam is not bearing-supported) will require an additional gasket.
*Interference may occur if a spark plug cord or cap other than genuine parts is used.
*When removing the spark plug, a ratchet type tool will not fit. Removal with the following tool is recommended. (Automotive-specific tool, manufacturer KTC, model M5-1618 box wrench)
*After installation, increase the oil quantity by approximately 10cc to 15cc. Also, after installation, check the oil level gauge to ensure the capacity is appropriate.
*The image is for illustration purposes, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
