Variable Manifold for YD-MJN24/28 Monkey Gorilla

[G-Craft 37208 Adjustable Manifold for YD-MJN24/28 Monkey Gorilla]
This is an adjustable manifold exclusively designed for Yoshimura YD-MJN24/28 carburetors on Monkey and Gorilla models.
The manifold body features a fully billet, three-dimensional machined design.
It is a product made by welding two machined parts together.
It is an adjustable type that allows you to change the carburetor's position, preventing interference with the frame when the carburetor is installed.
By counterboring the bolt holes and using ultra-low-profile bolts, the insulator can be positioned as close as possible, making it compatible with the Kitaco Ultra SE124.
Compatible models
Monkey, Gorilla
Specifications

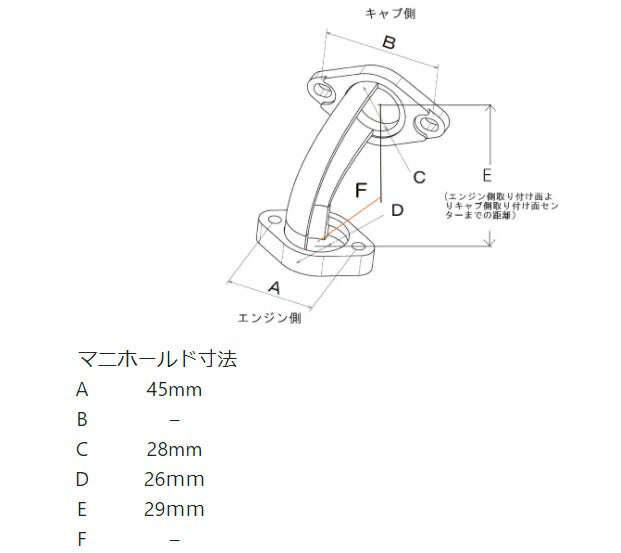

Port diameter: φ28 on carburetor side, φ26 on head side
Material: Aluminum
Accessories: Gasket, dedicated bolts
Precautions
*Please use the insulator and band included with the carburetor.
*The angle of the fuel cock needs to be adjusted.
*Depending on the installation position, the ignition coil and main harness may need to be relocated.
*Compatible heads (confirmed by G-Craft): Monkey stock head, Kitaco Ultra SE, Takegawa Super Head 4V.
*Incompatible heads: Daytona Dynahead (due to the manifold mounting surface being higher than other heads)
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please understand.
