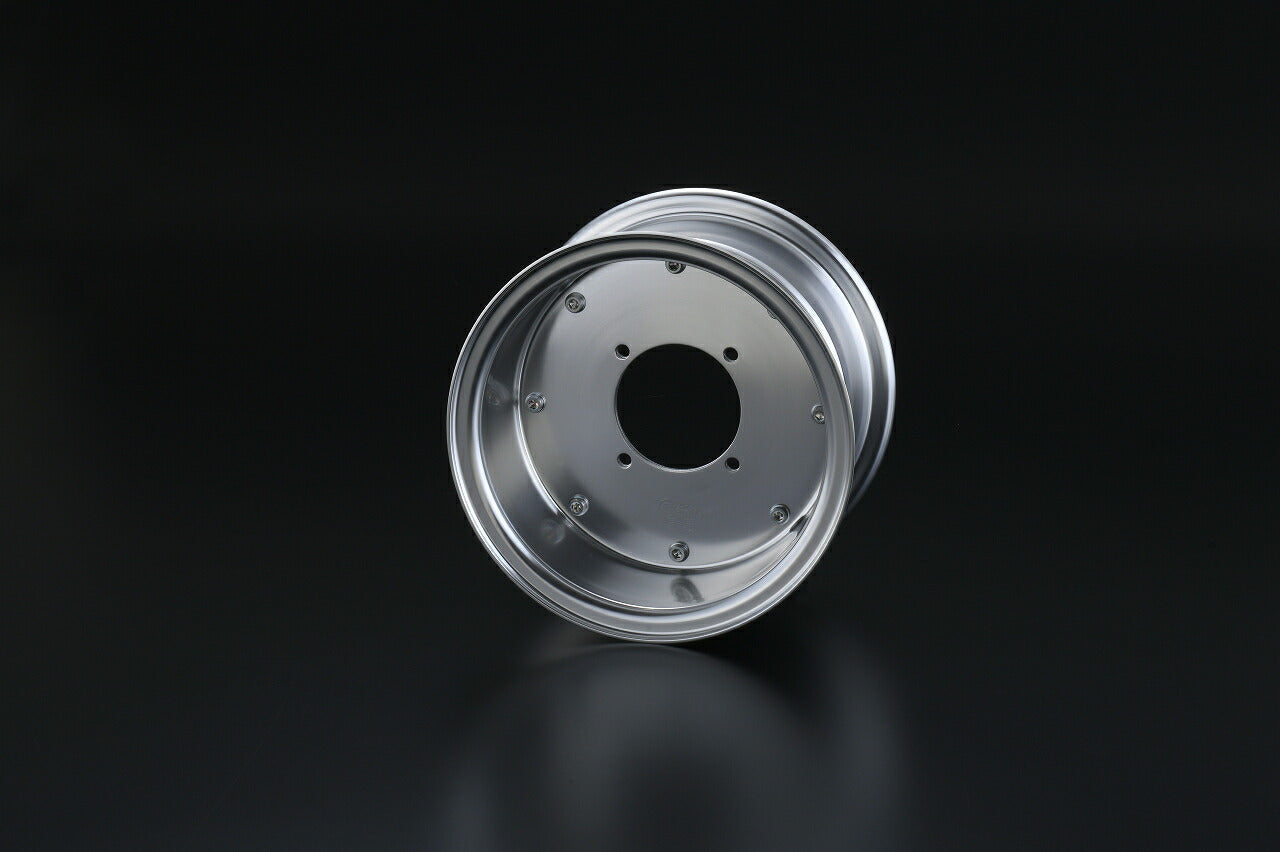

5.5J Wide Wheel, Non-Perforated Type, Silver Anodized, 8-inch, 1 piece

【G-Craft 39318 5.5J Wide Wheel, Solid Type, Silver Anodized, 8 inch, 1 wheel】
The long-awaited 5.5J is now available for the popular 8-inch wide wheel!
The rim width is 150mm, more than double that of the genuine 2.5J wheel, and approximately 35mm wider than the conventional 4.0J, which was the widest in the lineup.
This is the widest 8-inch wheel that can be installed on a Monkey/Gorilla.
Exclusively for Super Wide Swingarms.
When installing, the chain line needs to be offset outwards by 20mm.
●Necessary parts for installing an 8-inch 5.5J wide wheel:
Super Wide Swingarm
39419, 20mm Offset Spacer
37125, 20mm Offset Generator Cover
36028, 20mm Offset Sprocket 16T
30047 Wide Suspension Receiver 20mm Wide (for twin suspension)
*Not required for low-cost type super wide swingarms.
30035 Drum Brake Arm (Honda genuine part number 43410-GEY-000)
The 37125 20mm offset generator cover is a set of the generator cover and the 37126 20mm offset sprocket cover.
Customers who already have the 37124 aluminum billet generator cover only need the 37126.
If using a Jazz engine, the 37125 20mm offset generator cover is not required.
To prevent engine movement, we recommend installing it simultaneously with the 39407 engine reinforcement plate.
The above parts are for drum brakes.
For drum specifications, the valve hole is on the brake panel side.
For disc specifications, it is on the sprocket side.
●Recommended tire size: 120/70-8 (B77)
●Recommended inner tube: 3.5-4.0-8
●About the valve hole
For drum brakes, both front and rear are on the brake panel side.
For disc brakes, both front and rear are on the sprocket side.
Type: Solid
Surface treatment: Silver anodized finish
Size: 8 inches
Material: A5052 alloy
Quantity: 1 wheel
Notes
*This product is not for public road use.
*The shape of the left and right rims may differ. This is due to manufacturing tolerance and is not a defect. Please be aware of this in advance.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
