Swingarm Twin Shock Standard With Stabilizer Buff +4cm Monkey Gorilla

[G-Craft 90001 Swingarm, Twin Shock, Standard, with Stabilizer, Buff, +4cm, Monkey, Gorilla]
Monkey Swingarm STD Twin +4cm with Stabilizer
The Monkey swingarm with standard width (for Monkey hub) is a swingarm manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
With a wide range of lengths available, it is G-Craft's most popular swingarm.
Especially the triple square pipe swingarm, which adopts the highly strong "eye-shaped cross-section," is a pipe that boasts over 80% support from users who choose 16cm or longer.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +4cm
Material: 7N01, A5083 material used

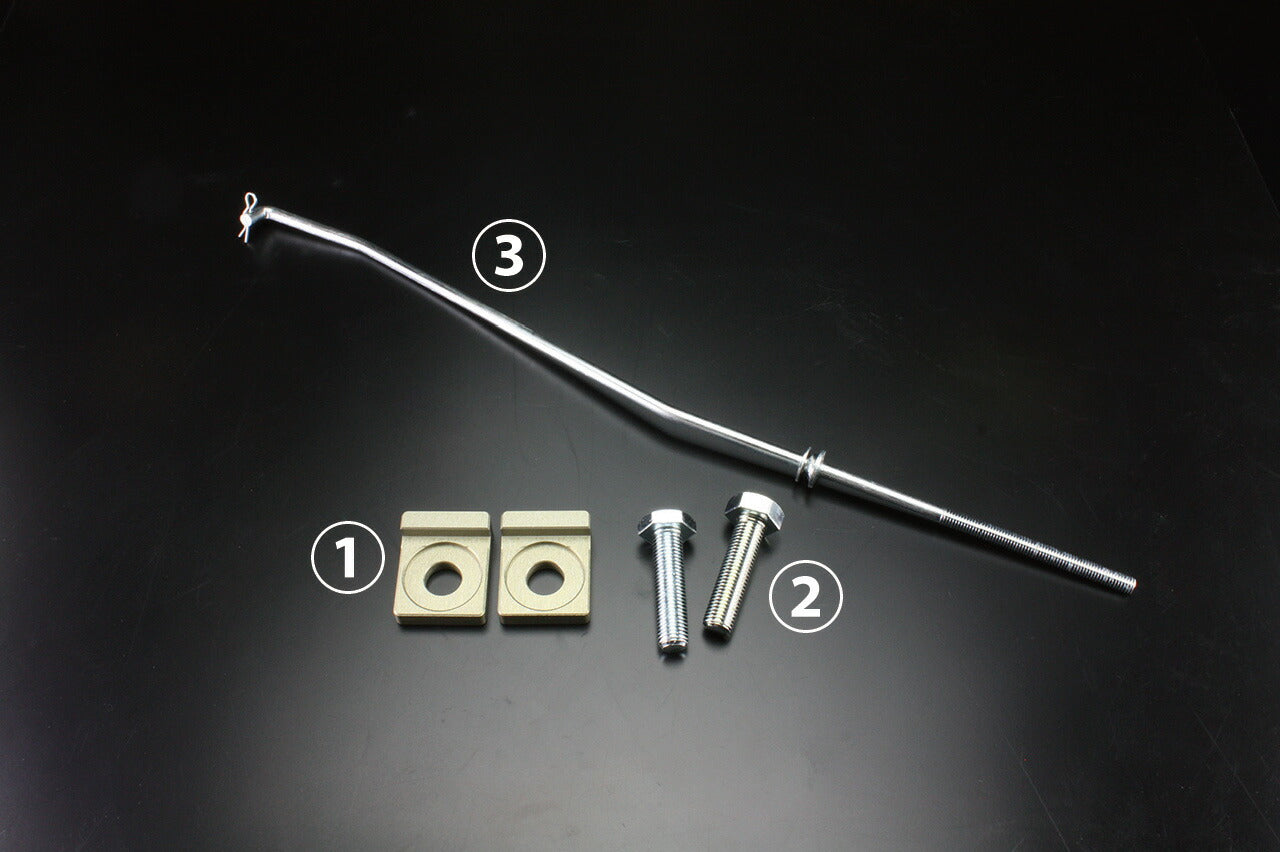

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock mount bolt 1 set
(3) Drum brake rod 1 (depending on swingarm length)
*Not included with +0cm, +2cm.
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J (if converting to disc with 8-inch 4.0J, please use dedicated rear hub part number 39099)
*Up to 10-inch 3.5J can be installed (requires +4cm or more)
*Only triple square pipes have chain sliders on the bottom as well.
*Standard with stabilizer Type 2 has a main pipe of 42mm x 32mm thick pipe. (Regular standard with stabilizer has 32mm x 32mm thin pipe specifications)
*Due to individual differences in vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The axle shaft uses the genuine Monkey one (neck length 210mm).
*Triple square and triple square mini have standard pivot bearing specifications.
*For triple square +4cm, adding a stabilizer is not possible (due to interference between the center pipe and frame)
*Images are for illustration purposes, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
