Swingarm Twin Shock Standard With Stabilizer Buff +16cm Monkey Gorilla

【G-Craft 90003 Swingarm Twin Shock Standard with Stabilizer Buff +16cm Monkey Gorilla】
Monkey Swingarm STD Twin +16cm with Stabilizer
The standard width Monkey swingarm (for Monkey hubs) is a swingarm manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
It is the most popular swingarm from G-Craft due to its wide range of length options.
The triple square pipe swingarm, which uses a particularly strong "H-beam section," is supported by over 80% of users who choose lengths of 16cm or more.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

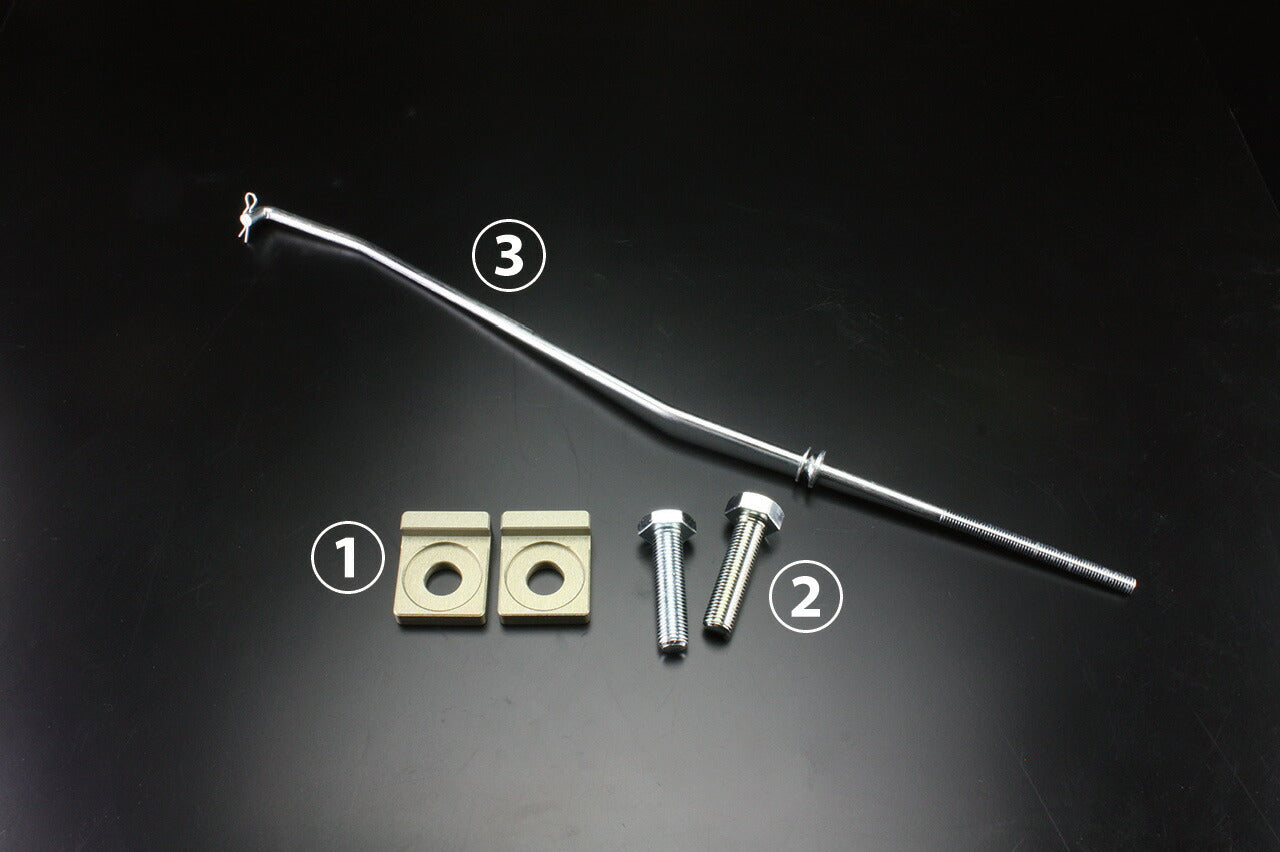

Accessories
(1) Chain tensioner adjuster 1 set (specific to each pipe shape)
(2) Twin shock absorber mounting bolts 1 set
(3) Drum brake rod 1 (depending on swingarm length)
*Not included with +0cm, +2cm.
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swing Arm) are abbreviations.
*Up to 8 inches 4.0J (if converting to disc brakes with 8 inches 4.0J, please use dedicated rear hub part number 39099)
*10 inches can be installed up to 3.5J (requires +4cm or more)
*Only triple square pipes have chain sliders on the bottom.
*The Standard Stabilizer Type 2 has a main pipe that is a 42mm x 32mm thick pipe. (The regular Standard Stabilizer has a 32mm x 32mm thin pipe specification)
*Depending on individual vehicle differences, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The axle shaft uses the genuine Monkey one (underhead length 210mm).
*Triple Square and Triple Square Mini come standard with pivot bearing specifications.
*For Triple Square +4cm, stabilizer addition processing is not possible (due to interference between the center pipe and frame).
*The images are for illustration purposes, and the design and specifications of the products shown may change without prior notice. Please understand.
