Swingarm Twin Shock Standard No Stabilizer Buff +20cm Monkey Gorilla

【G-Craft 90009 Swingarm Twin Shock Standard No Stabilizer Buff +20cm Monkey Gorilla】
Monkey Swingarm STD Twin +20cm No Stabilizer
The standard width Monkey swingarm (for Monkey hubs) is a swingarm made to the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
It is G-Craft's most popular swingarm, with a wide variety of lengths.
The triple square pipe swingarm, which uses a particularly strong "H-beam section," is supported by over 80% of users who choose 16cm or more.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +20cm
Material: 7N01, A5083 material used

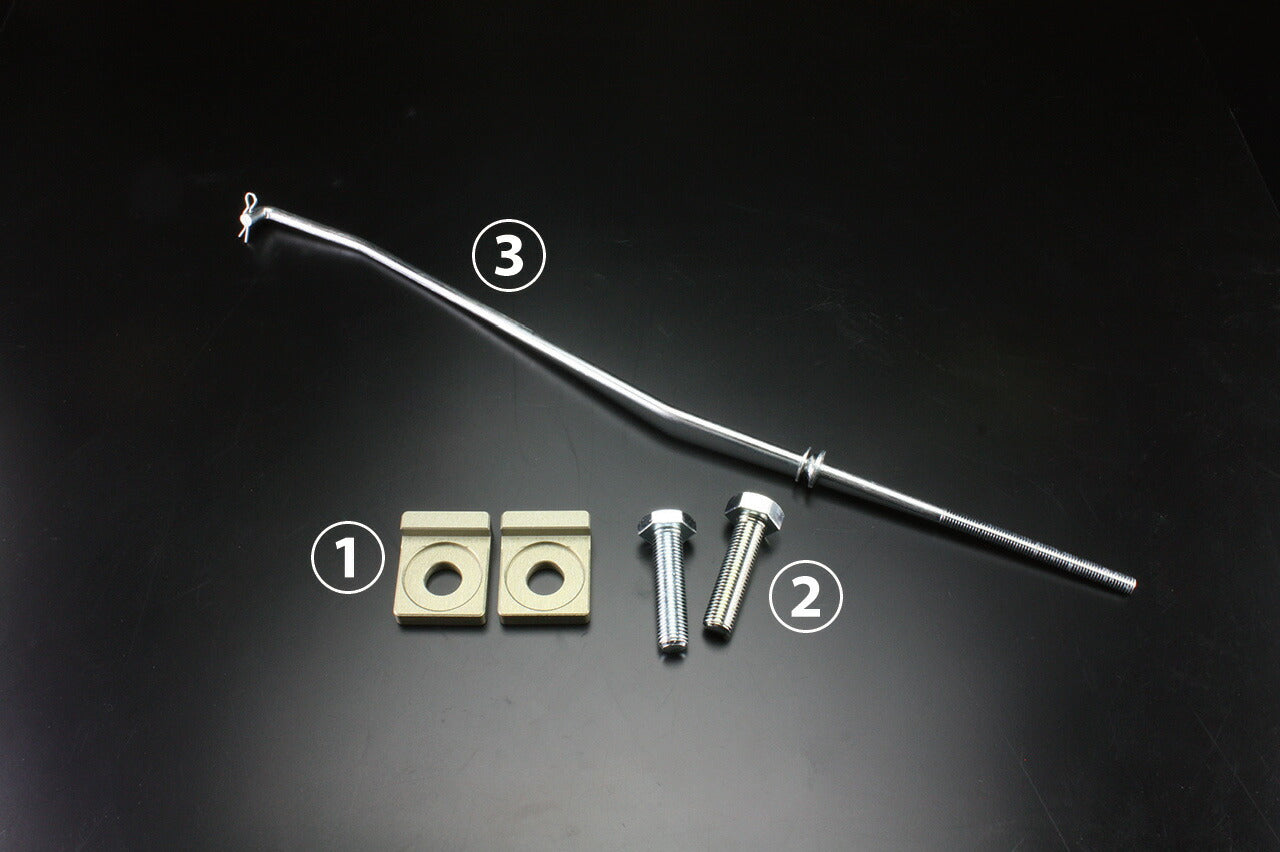

Accessories
(1) Chain adjuster block 1 set (dedicated for each pipe shape)
(2) Twin shock suspension mounting bolts 1 set
(3) Drum brake rod 1 (depending on swingarm length)
*Not included with +0cm, +2cm.
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (If converting to disc with 8 inches 4.0J, please use the dedicated rear hub (part number 39099))
*10 inches up to 3.5J can be installed (+4cm or more required)
*Only triple square pipes have chain sliders on the bottom.
*The standard swingarm with stabilizer type 2 has a main pipe of 42mm x 32mm thick pipe. (The regular standard swingarm with stabilizer is 32mm x 32mm thin pipe specification)
*Due to individual differences in vehicles, the brake switch stay may interfere. In that case, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The axle shaft uses a genuine Monkey one (under-head length 210mm).
*Triple Square and Triple Square Mini are equipped with pivot bearing specifications as standard.
*Adding a stabilizer is not possible for Triple Square +4cm (due to interference between the center pipe and the frame)
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
