Swingarm, twin shocks, standard, no stabilizer, buffed, +16cm, for Monkey/Gorilla

【G-Craft 90012 Swingarm Twin Shock Standard No Stabilizer Buff +16cm Monkey Gorilla】
Monkey Swingarm STD Twin +16cm No Stabilizer
The standard width (for Monkey hub) swingarm for the Monkey is a swingarm manufactured with the same width (167-170mm) as the genuine Monkey swingarm.
In addition to being able to use the genuine Monkey hub as is, the 39053 rear disk hub can also be used.
This swingarm is compatible with both drum and disk brakes.
It offers a wide range of length choices and is G-Craft's most popular swingarm.
Especially the triple square pipe swingarm, which adopts the highly strong "eye-shaped cross-section," is supported by over 80% of users who choose lengths of 16cm or more.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

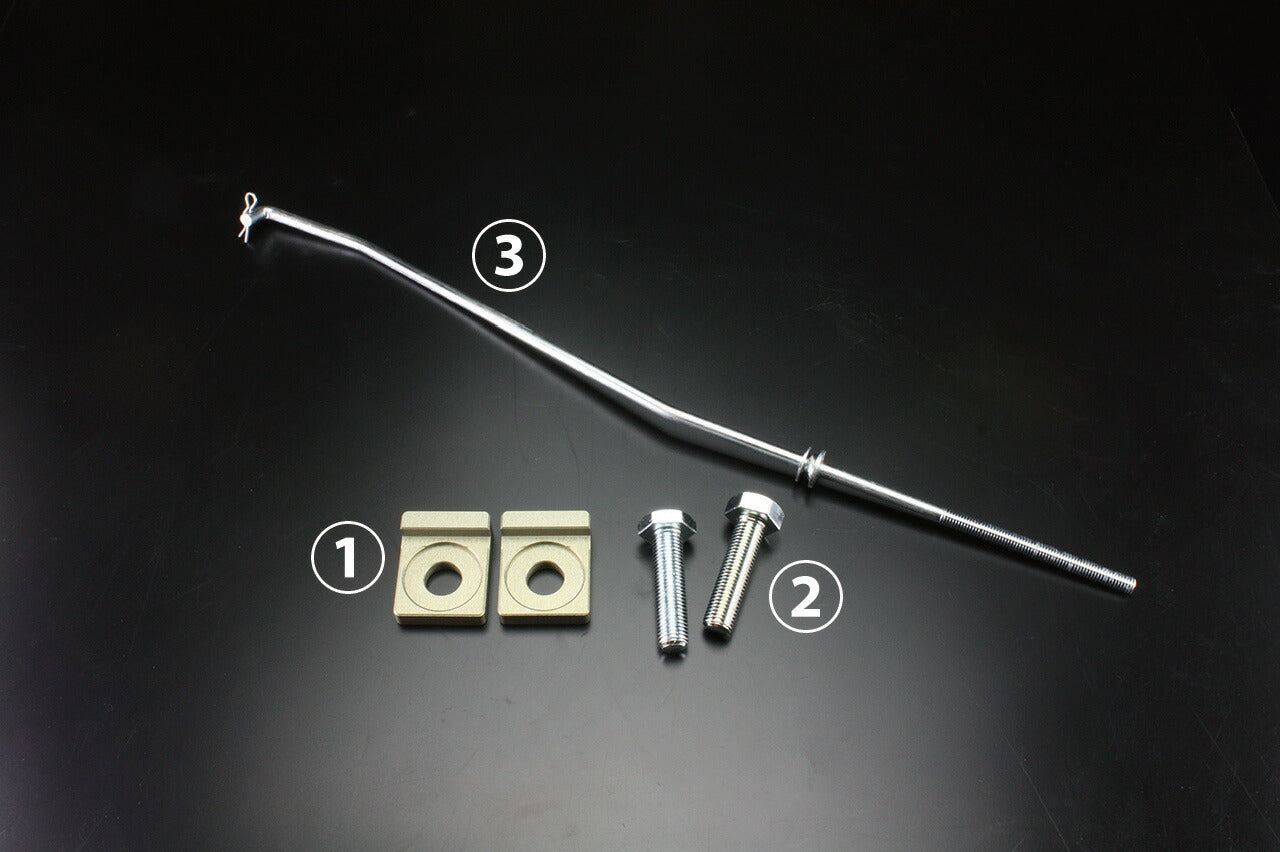

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Twin shock mount bolt set
(3) Drum brake rod (depending on swingarm length)
*Not included with +0cm, +2cm.
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J (If converting to disk with 8-inch 4.0J, please use the dedicated rear hub (part number 39099))
*Up to 10-inch 3.5J can be installed (requires +4cm or more)
*Only triple square pipes have chain sliders on the bottom.
*The standard with stabilizer type 2 has a main pipe of 42mm x 32mm thick pipe. (The normal standard with stabilizer has a 32mm x 32mm thin pipe specification)
*Depending on individual differences in the vehicle, the brake switch stay may interfere. In such cases, bend the brake switch stay to secure the necessary clearance for operation before installation.
*The axle shaft uses a genuine Monkey part (under-head length 210mm).
*Triple Square and Triple Square Mini come standard with pivot bearing specifications.
*If Triple Square +4cm, adding a stabilizer is not possible (due to interference between the center pipe and the frame)
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
