Swingarm Monoshock Standard Stabilizer Equipped 6-inch Specific Buffed +10cm Monkey Gorilla

【G-Craft 90026 Swingarm Monoshock Standard with Stabilizer, for 6-inch Wheels, Buffed +10cm for Monkey Gorilla】
Monkey Swingarm STD Mono +10cm with Stabilizer (for 6-inch Wheels)
The standard width Monkey swingarm (for Monkey hubs) is manufactured with the same width (167-170mm) as the genuine Monkey swingarm.
It can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
With a wide variety of lengths, this is G-Craft's most popular swingarm.
Especially the triple square pipe swingarm, which employs a highly strong "H-beam cross-section," is supported by over 80% of users who choose 16cm or longer pipes.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +10cm
Material: 7N01, A5083 material used

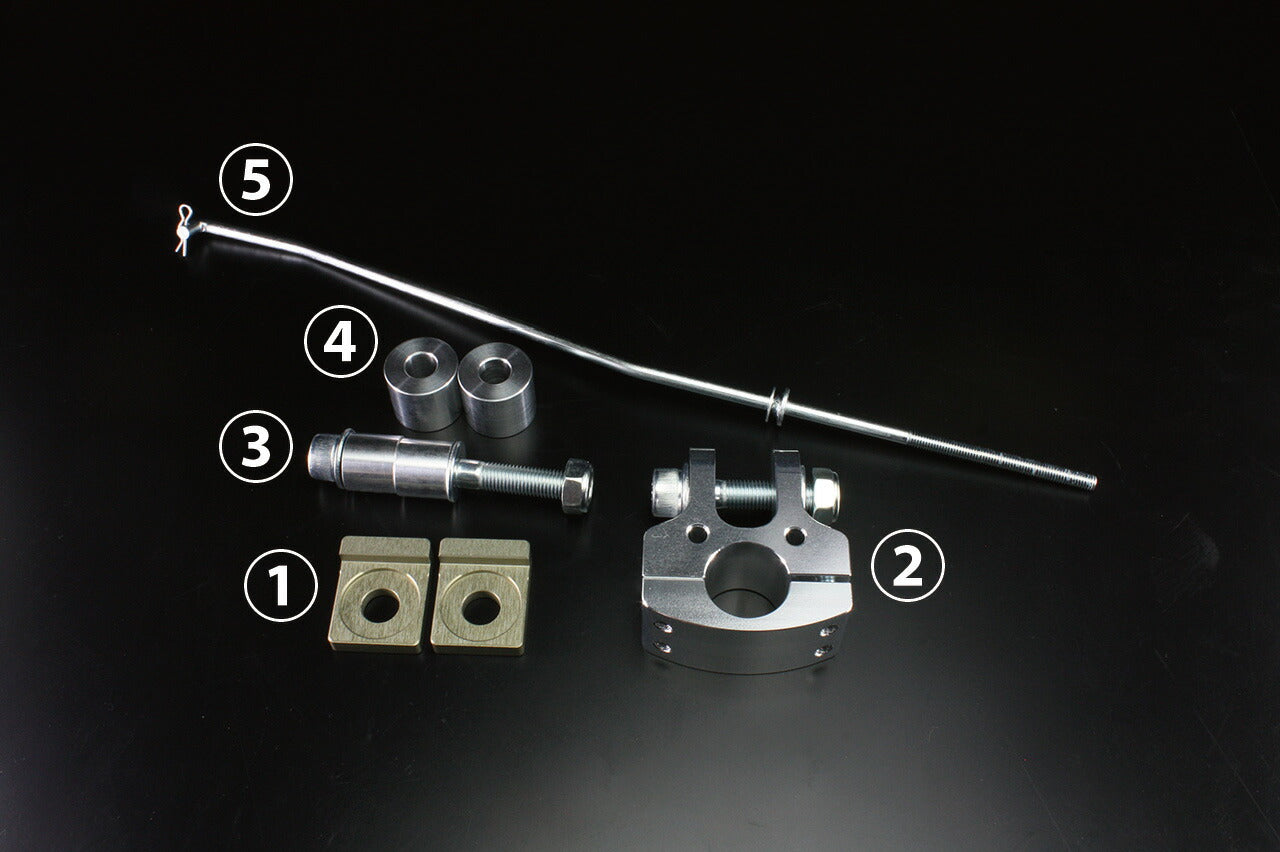

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Frame side monoshock receiver 1 set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc)
Collar 17.9mm 2 (repair part number 68104/1 pc)
(4) Seat fixing collar 22mm 2 (repair part number 68133/1 pc)
(5) Drum brake rod 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (discs up to 3.5J) and 10 inches up to 3.5J can be installed (requires +4cm or more).
*Only triple square pipes have a chain slider on the bottom as well.
*The Standard Stabilizer Type 2 has a main pipe with a thick 42mm x 32mm pipe. (The regular Standard Stabilizer has a thin 32mm x 32mm pipe specification.)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*Images are for illustration purposes only; product designs and specifications shown are subject to change without notice. Please understand.
