Swingarm Monoshock Standard Stabilizer Buffed +20cm Monkey Gorilla

【G-Craft 90027 Swingarm Monoshock Standard Stabilizer Included Buff +20cm Monkey Gorilla】
Monkey Swingarm STD Mono +20cm with Stabilizer
The Monkey swingarm STD width (for Monkey hub) swingarm is manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
It can use the genuine Monkey hub as is, or you can use the 39053 rear disc hub.
It is a swingarm compatible with both drum and disc brakes.
It is G-Craft's most popular swingarm with a wide range of length options.
Especially, the triple square pipe swingarm, which adopts the highly strong "cross-section" shape, boasts over 80% support from users who choose 16cm or longer.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +20cm
Material: 7N01, A5083 material used

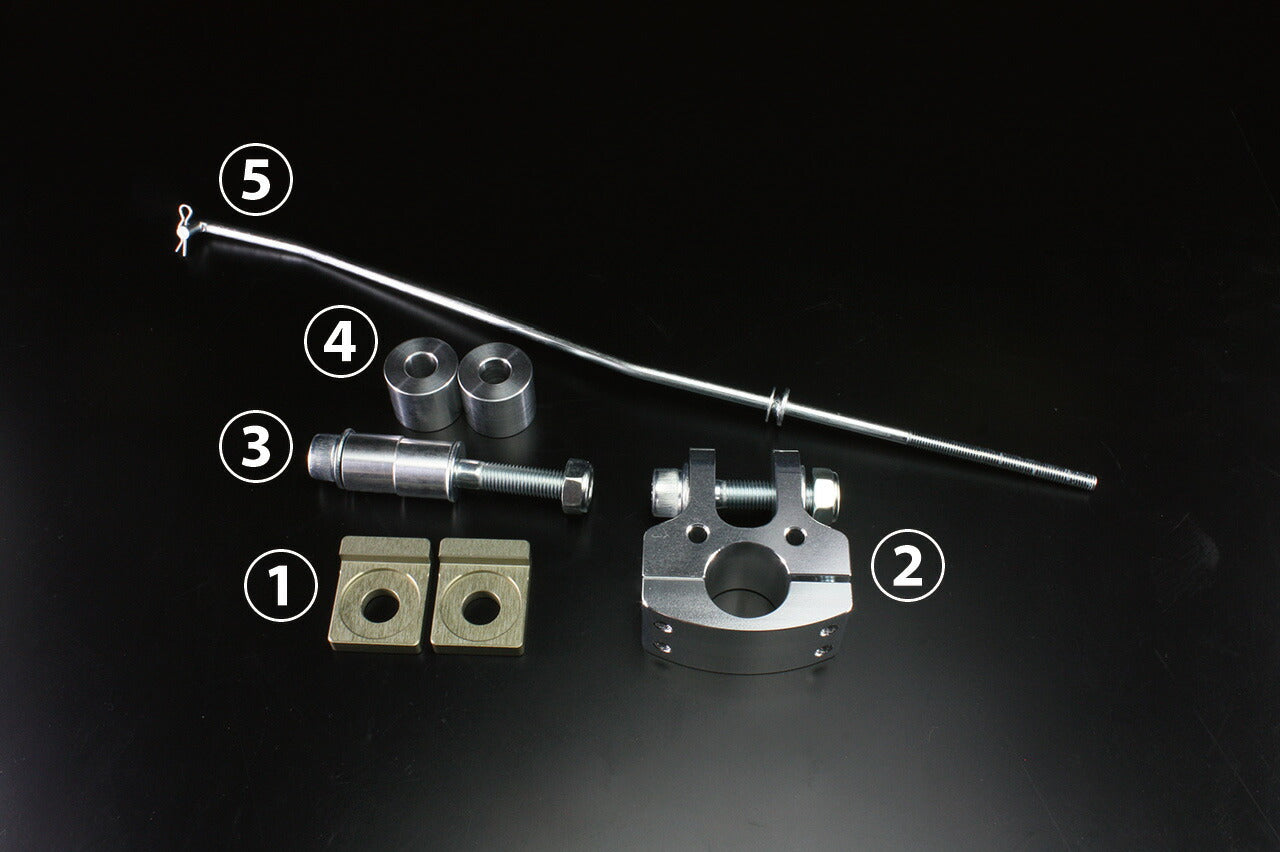

Accessories
(1) Chain adjuster block 1 set (dedicated for each pipe shape)
(2) Frame side monoshock suspension receiver 1 set (repair part number 30033)
(3) Bolt set for shock mounting
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 piece)
Collar 17.9mm 2 (repair part number 68104/1 piece)
(4) Seat fixing collar 22mm 2 (repair part number 68133/1 piece)
(5) Drum brake rod 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (discs up to 3.5J), 10 inches up to 3.5J can be installed (requires +4cm or more)
*Only triple square pipes have chain sliders on the bottom as well.
*The Standard Stabilizer Type 2 has a main pipe that is 42mm x 32mm thick pipe. (Normal Standard Stabilizer type is 32mm x 32mm thin pipe specification)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
