Wide swingarm twin shocks standard no stabilizer bar buff +20cm Monkey Gorilla

【G-Craft 90036 Wide Swingarm Twin Shock Standard No Stabilizer Buff +20cm Monkey Gorilla】
Monkey Wide Swingarm STD Twin +20cm No Stabilizer
The wide swingarm (for wide hub) for Monkeys is a swingarm manufactured with a width of 187-190mm.
A special collar is included so that the genuine Monkey hub can be used.
Caliper support 33192 can be used.
The swingarm with a triple square pipe that uses a strong "eye-shaped cross-section" is a pipe that boasts over 80% support among users who choose 16cm or more.
When installing 8-4.0J or 10-4.0J, a G-Craft 7mm offset sprocket is required for the front, and a G-Craft 8mm sprocket spacer is required for the rear.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +20cm
Material: 7N01, A5083 material used

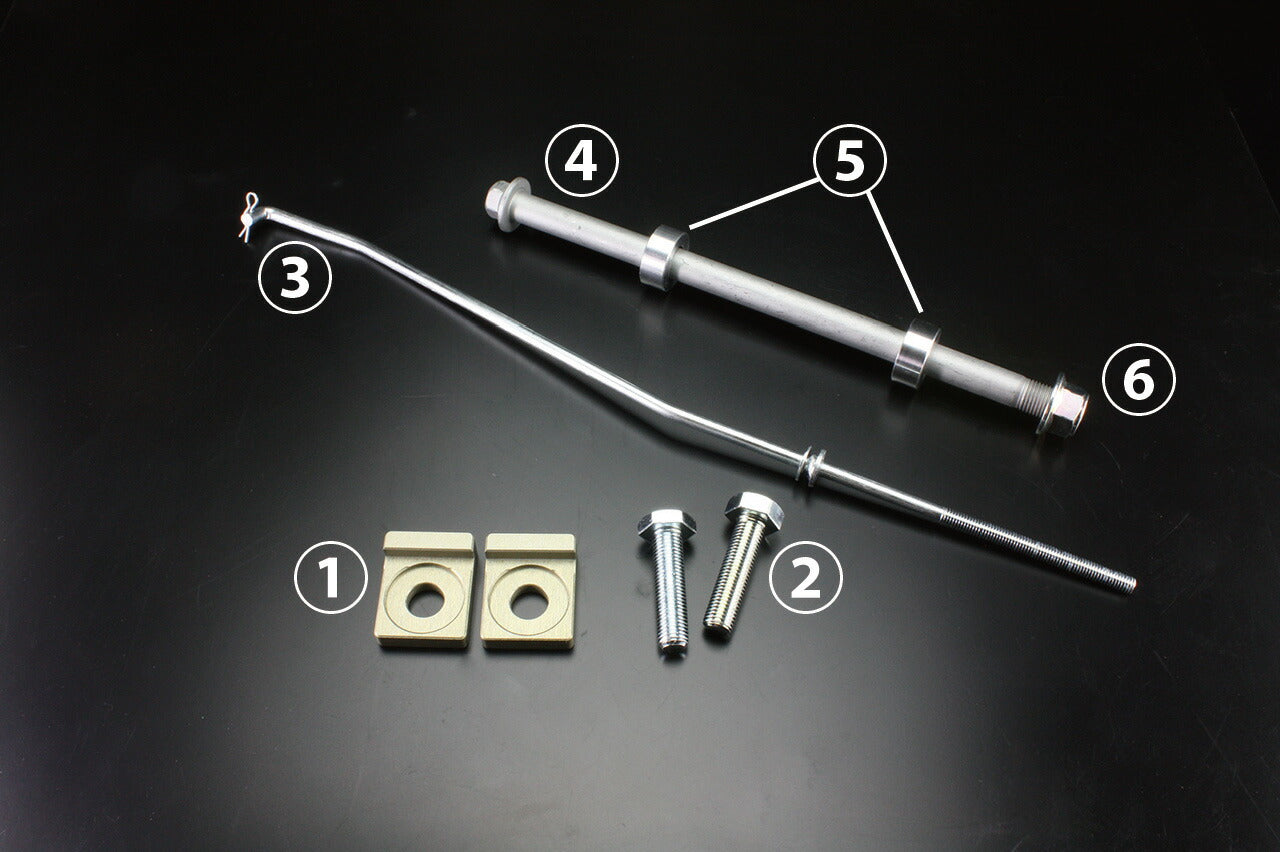

Accessories
(1) Chain adjuster block 1 set (dedicated to each pipe shape)
(2) Twin shock suspension mounting bolt 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 230mm 1 (repair part number 38061)
(5) Axle collar 10mm 2 (repair part number 68134/1 piece)
(6) Axle nut M12 1 (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J and 10-inch 4.0J can be installed (for 10-inch, +4cm or more is required).
*Only triple square pipes also have a chain slider on the bottom.
*Standard stabilizer type 2 has a main pipe of 42mm x 32mm thick pipe. (Normal standard stabilizer has a 32mm x 32mm thin pipe specification.)
*The rear shock will be angled, but there is no problem with use.
*Due to individual differences in vehicles, the brake switch stay may interfere. In that case, bend the brake switch stay and install it after securing the necessary clearance for operation.
*Triple Square and Triple Square Mini come standard with bearings at the pivot.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
