NSR Swingarm Twin Shock Standard No Stabilizer Buffed +20cm Monkey Gorilla

【G-Craft 90040 NSR Swingarm Twin Shock Standard No Stabilizer Buff +20cm Monkey Gorilla】
Monkey NSR Swingarm STD Twin +20cm No Stabilizer
This swingarm allows you to install NSR50/80 wheels on your Monkey/Gorilla.
The swingarm width is 184-187mm.
You can convert your Monkey to 12 inches using 12-inch wheels from an NSR50/80.
You can choose between twin shock and monoshock types.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +20cm
Material: 7N01, A5083 material used
Accessories
(1) Chain pullers 1 set (specific to each pipe shape)
(2) Twin shock suspension receiver bolts 1 set
(3) Axle shaft 230mm 1 (repair part number 38061)
(4) Axle nut M12 1 (repair part number 38001)
Precautions

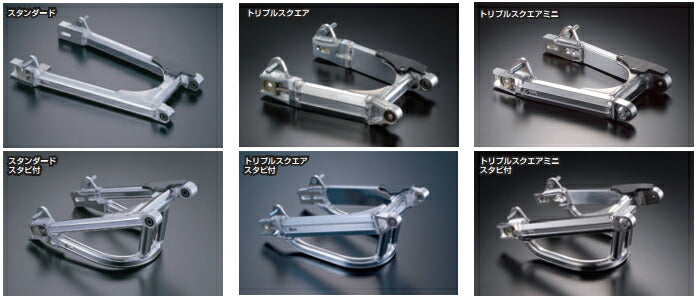

*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft front offset sprocket 7mm is required.
*For twin shock, the chain-side suspension is mounted on the inside to avoid the chain line.
*Only triple square pipes have chain sliders on the bottom as well.
*Due to individual differences in vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
