NSR Swingarm Twin Shock Standard No Stabilizer Buffed +10cm Monkey Gorilla

【G-Craft 90045 NSR Swingarm Twin Shock Standard No Stabilizer Buff +10cm Monkey Gorilla】
Monkey NSR Swingarm STD Twin +10cm No Stabilizer
This swingarm allows you to install NSR50/80 wheels on your Monkey/Gorilla.
The swingarm width is manufactured to be 184-187mm.
You can convert your Monkey to 12 inches using NSR50/80 12-inch wheels.
You can choose between twin shock and monoshock types.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +10cm
Material: 7N01, A5083 material used

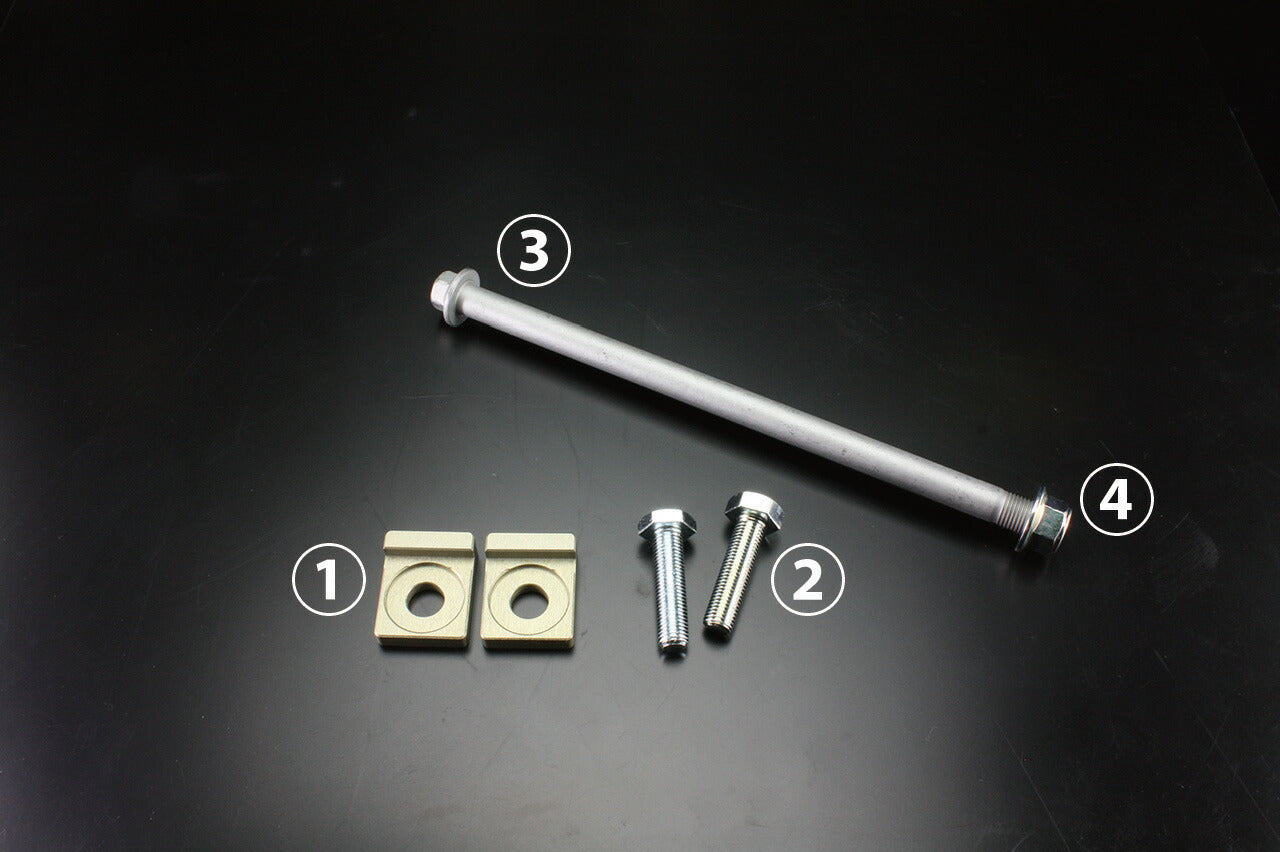

Included accessories
(1) Chain adjuster block 1 set (specific for each pipe shape)
(2) Twin shock suspension mounting bolts 1 set
(3) Axle shaft 230mm 1 piece (Repair part number 38061)
(4) Axle nut M12 1 piece (Repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing the wheel, G-Craft front offset sprocket 7mm is required.
*In the case of twin shocks, the chain-side suspension is installed inward to avoid the chain line.
*Only triple square pipes have chain sliders on the bottom as well.
*Due to individual differences in vehicle bodies, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
