Swingarm Monoshock Triple Square No Stabilizer Buffed +16cm Monkey Gorilla

[G-Craft 90051 Swingarm Monoshock Triple Square No Stabilizer Buff +16cm Monkey Gorilla]
Monkey Swingarm T/S Mono +16cm No Stabilizer
The standard width (for Monkey hub) swingarm for Monkeys is a swingarm manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disk hub.
This swingarm is compatible with both drum and disc brakes.
It is G-Craft's most popular swingarm, with a wide variety of lengths.
The triple square pipe swingarm, which uses particularly strong "eye-shaped cross-section" pipes, is supported by over 80% of users who choose lengths of 16cm or more.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

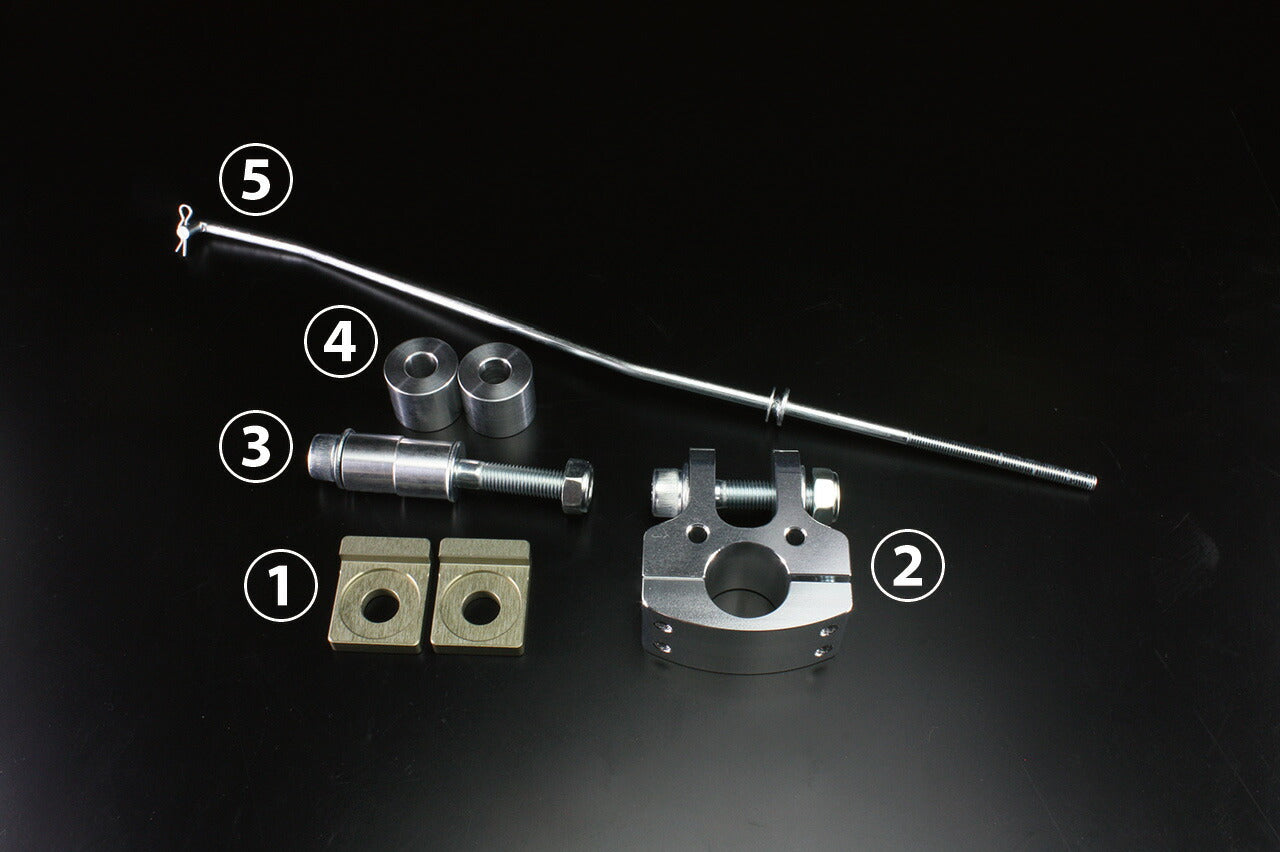

Accessories
(1) Chain adjuster block 1 set (dedicated for each pipe shape)
(2) Frame side monoshock receiver 1 set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc)
Collar 17.9mm 2 (repair part number 68104/1 pc)
(4) Seat fixing collar 22mm 2 (repair part number 68133/1 pc)
(5) Drum brake rod 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swing Arm) are abbreviations.
*Up to 8-inch 4.0J (disk up to 3.5J), 10-inch up to 3.5J can be installed (requires +4cm or more)
*Only triple square pipes have chain sliders on the bottom as well.
*Standard stabilizer type 2 has a main pipe of 42mm x 32mm thick pipe. (Normal standard stabilizer type has a 32mm x 32mm thin pipe specification)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
