Swingarm NSR Triple Square No Stabilizer Buffed +6cm Monkey R

【G-Craft 90065 Swingarm NSR Triple Square No Stabilizer Buff +6cm Monkey R】
Monkey R Swingarm NSR T/S +6cm No Stabilizer

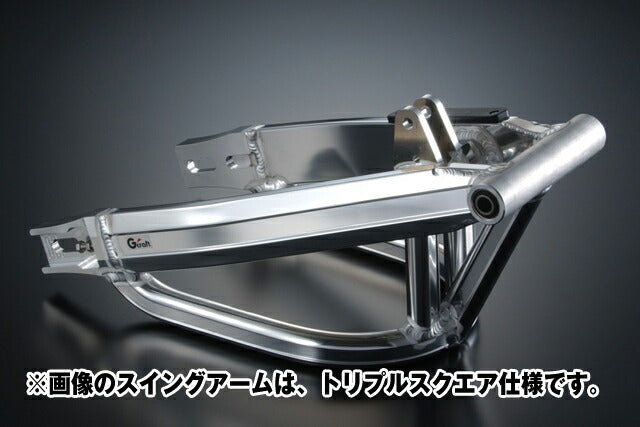

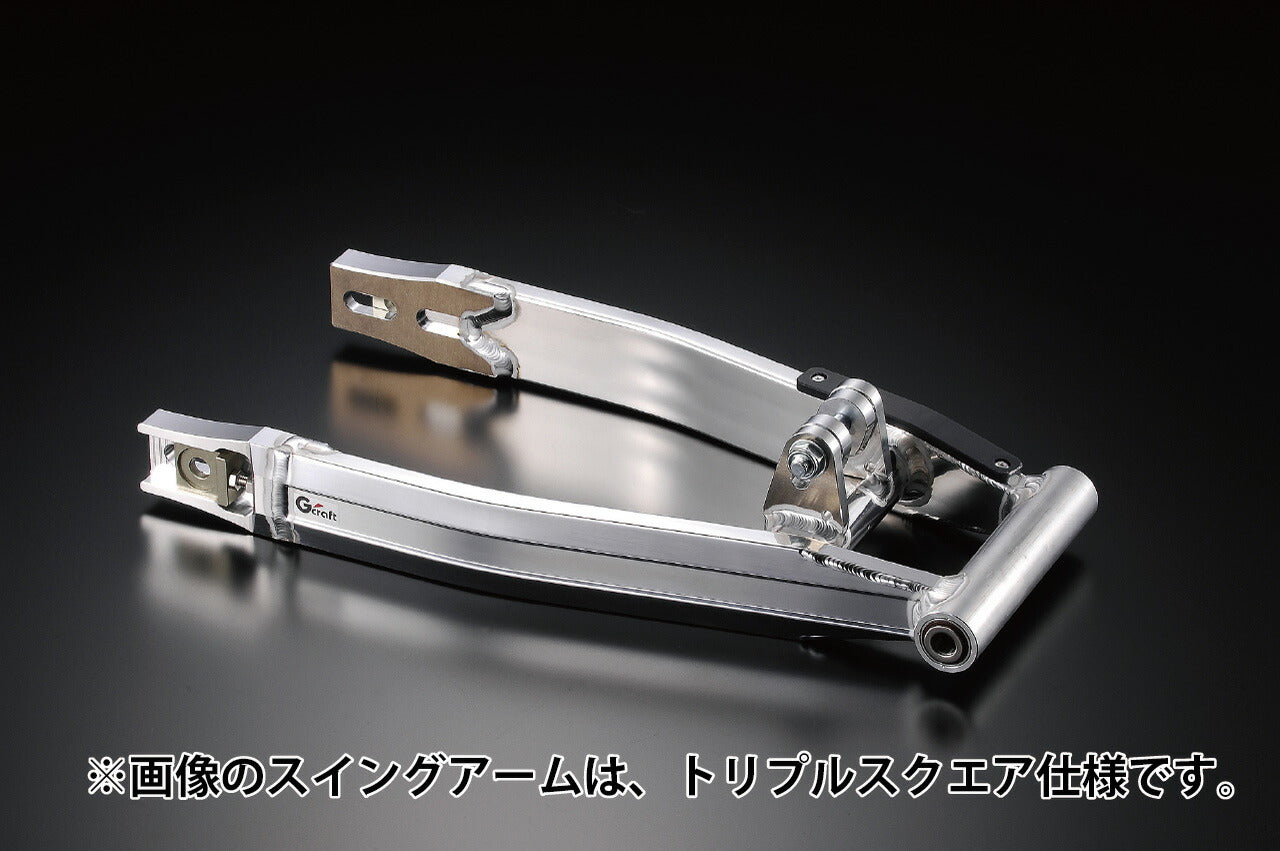

A swingarm that allows installation of NSR wheels.
The swingarm width is manufactured at 184-187mm.
Compatible models
Monkey R
Surface treatment: Buffed finish
Size: +6cm
Material: 7N01, A5083 material used

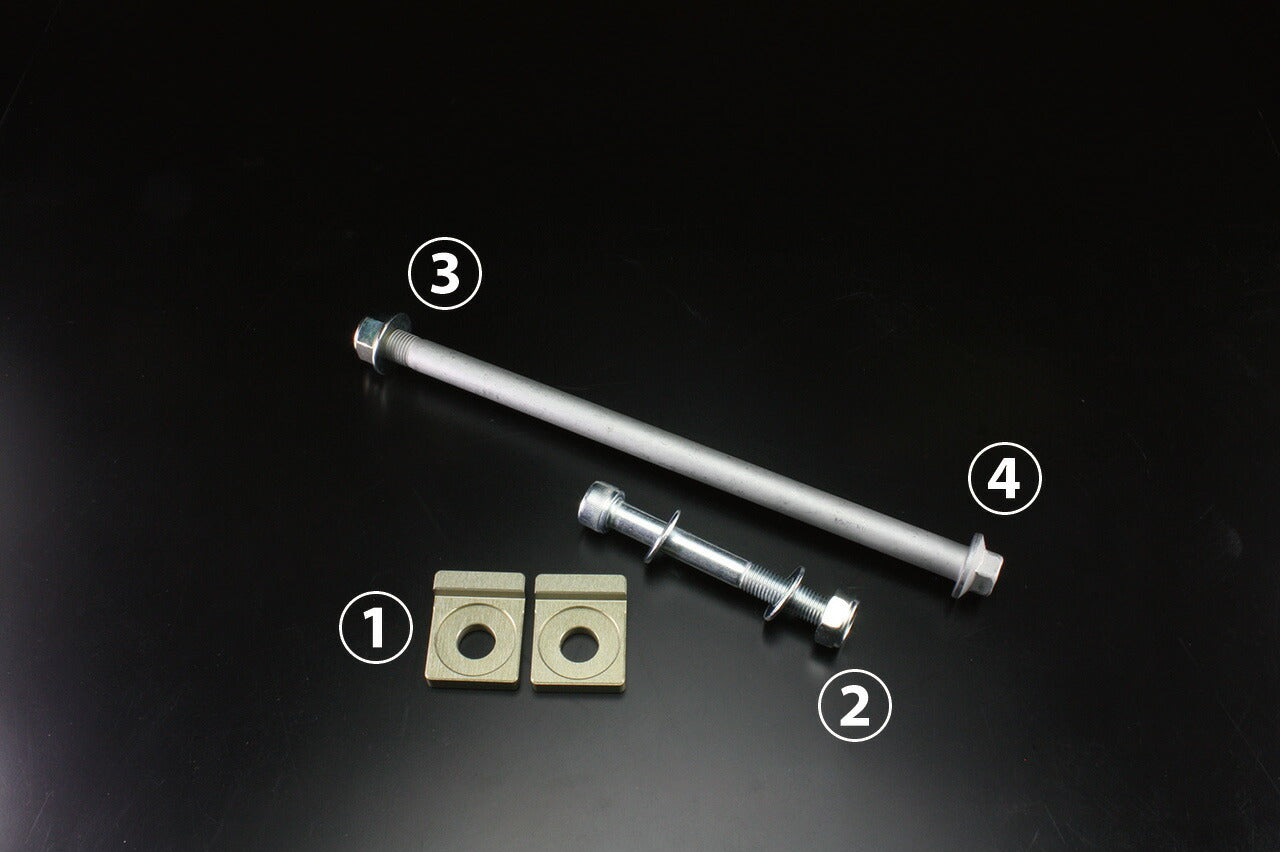

Accessories
(1) Chain tensioner blocks 1 set (pipe shape specific)
(2) Bolt set for shock mounting
Bolt 1 pc (Repair part number 65235)
Nut 1 pc (Repair part number 65229)
Washer 2 pcs (Repair part number 65090/1 pc per pack)
(3) Axle nut M12 1 pc (Repair part number 38001)
(4) Axle shaft 230mm 1 pc (Repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is located on the bottom.
*Rear shock is compatible with Monkey R, NSR50/80 stock.
*Part numbers 90302 and 90305 can only be used with tire size 100-65-12 (FMR F65).
*The image is for illustration purposes only, and the design and specifications of the products listed may change without prior notice. Please understand.
