Wide Swingarm, Monoshock, Triple Square, No Stabilizer, Buffed, +16cm, Monkey/Gorilla

【G-Craft 90078 Wide Swingarm Monoshock Triple Square No Stabilizer Buff +16cm Monkey Gorilla】
Monkey Wide Swingarm T/S Mono +16cm No Stabilizer
The wide swingarm for Monkey (for wide hubs) is manufactured with a width of 187-190mm.
A special collar is included so that the stock Monkey hub can be used.
When converting to disc brakes, the 39048 wide rear disc hub can be used.
The Triple Square pipe swingarm, which uses a strong "I-beam" cross-section, is supported by over 80% of users who choose lengths of 16cm or more.
When installing 8-4.0J wheels, a G-Craft 4mm offset sprocket for the front and a G-Craft 4mm sprocket spacer for the rear are required.
When installing 10-4.0J wheels, a G-Craft 7mm offset sprocket for the front and a G-Craft 8mm sprocket spacer for the rear are required.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +16cm
Material: 7N01, A5083 material used

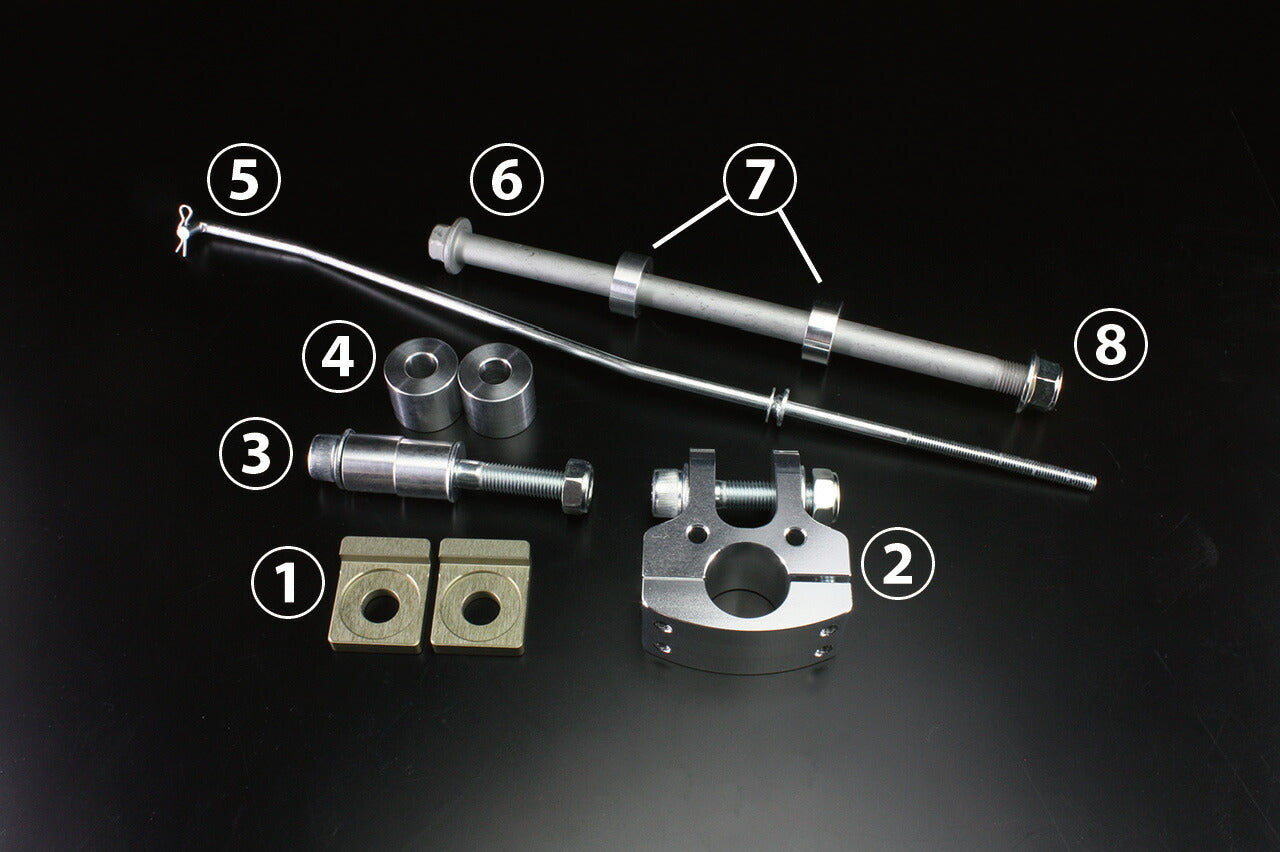

Included parts
(1) Chain adjuster set (specific to each pipe shape)
(2) Frame-side monoshock receiver set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
Collar 17.9mm 2 (repair part number 68104/1 pc per pack)
(4) Seat fixing collar 22mm 2 (repair part number 68133)
(5) Drum brake rod 1 (according to swingarm length)
(6) Axle shaft 230mm 1 (repair part number 38061)
(7) Axle collar 10mm 2 (repair part number 68134/1 pc per pack)
(8) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J (disc up to 3.5J) and 10-inch up to 4.0J can be installed.
*Only Triple Square pipes have a chain slider on the bottom as well.
*Standard with stabilizer Type 2 has a main pipe size of 42mm x 32mm (thick pipe). (Normal standard with stabilizer has a 32mm x 32mm thin pipe specification)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
