Swingarm Twin Shock Triple Square No Stabilizer Buffed +16cm Monkey Gorilla

[G-Craft 90080 Swingarm, Twin Shock, Triple Square, No Stabilizer, Buffed, +16cm, Monkey, Gorilla]
Monkey Monkey R Swingarm T/S Twin +16cm No Stabilizer
This swingarm allows you to install Monkey R wheels on a Monkey/Gorilla.
The swingarm width is manufactured to fit 188-191mm.
It is possible to convert your Monkey to 10-inch by using Monkey R 10-inch wheels.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +16cm
Material: 7N01, A5083 material used

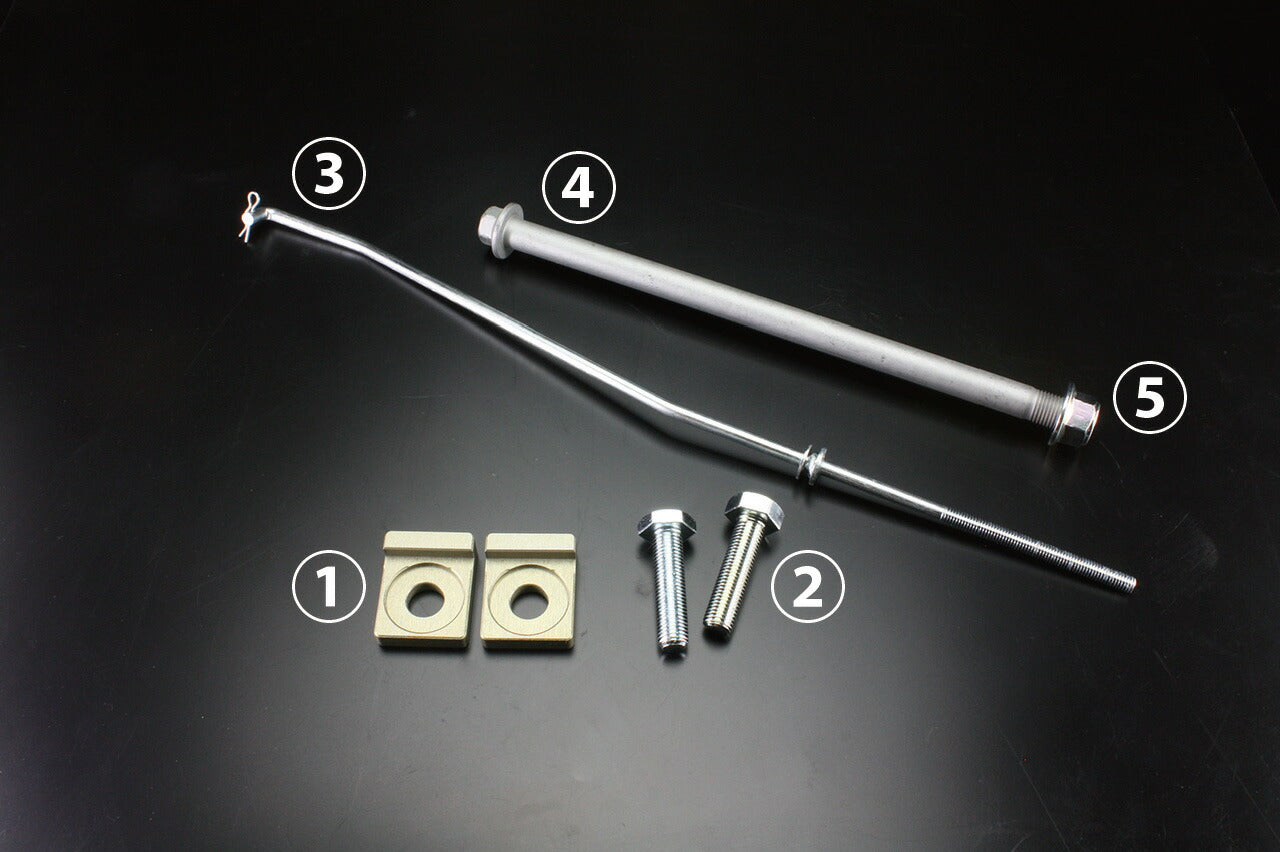

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock suspension receiver bolts 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 230mm 1 (repair part number 38061)
(5) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft front offset sprocket 7mm is required.
*Only triple square pipes have a chain slider on the bottom.
*Due to individual differences in vehicle bodies, the brake switch stay may interfere. In such cases, bend the brake switch stay and install it after securing the necessary clearance for operation.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
