Swingarm, Twin Shock, Triple Square, No Stabilizer, Buffed, +20cm, Monkey, Gorilla

【G-Craft 90081 Swingarm Twin Shock Triple Square No Stabilizer Buff +20cm Monkey Gorilla】
Monkey Monkey R Swingarm T/S Twin +20cm No Stabilizer
This swingarm allows you to install Monkey R wheels on a Monkey/Gorilla.
The swingarm width is manufactured to 188-191mm.
You can convert your Monkey to 10 inches by using Monkey R 10-inch wheels.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +20cm
Material: 7N01, A5083 material used

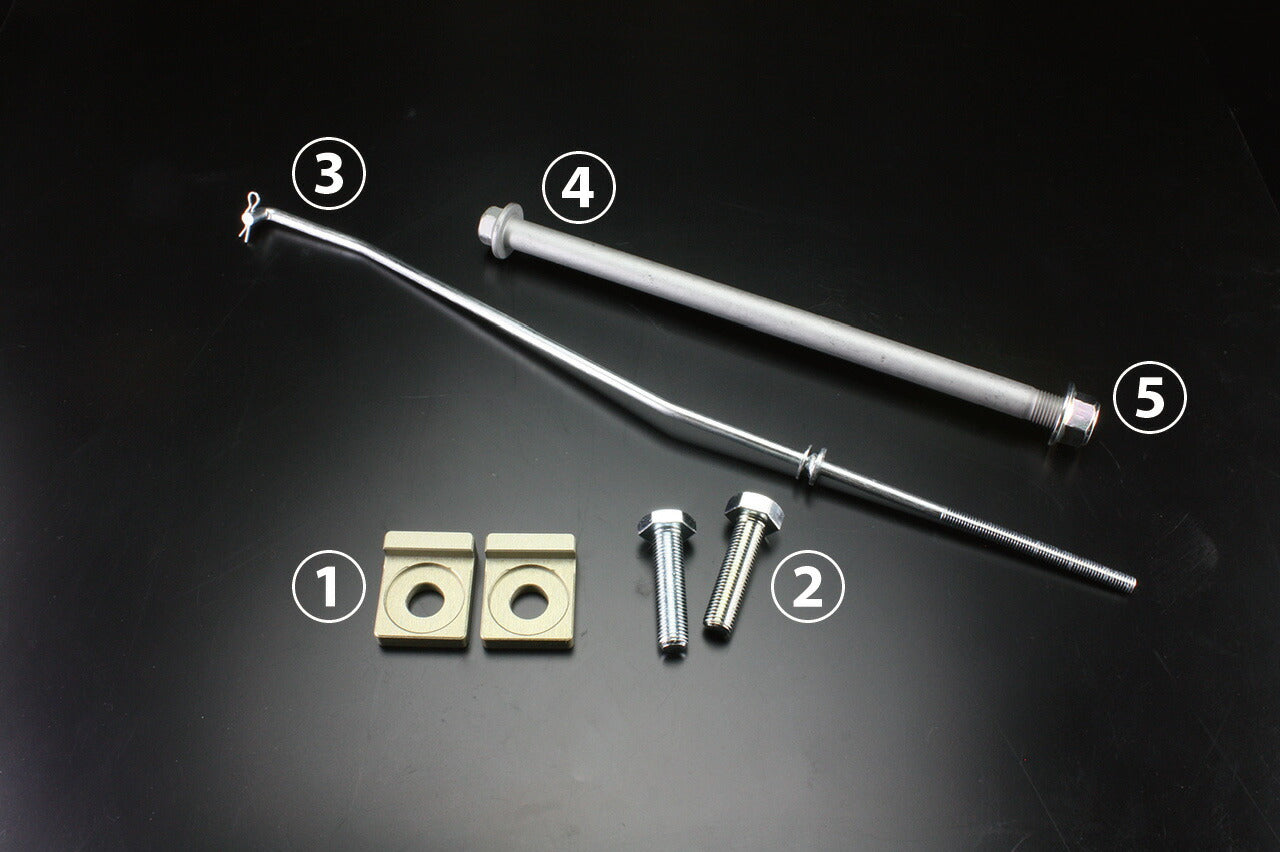

Accessories
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Twin shock suspension mounting bolt 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 230mm 1 (repair part number 38061)
(5) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft front offset sprocket 7mm is required.
*Only the Triple Square pipe has chain sliders attached to the bottom.
*Due to individual differences in vehicle bodies, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The image is for illustration purposes, and the design and specifications of the products shown may change without prior notice. Please understand.
