Swingarm Twin Shock Standard With Stabilizer Buff +16cm Monkey Gorilla

【G-Craft 90092 Swingarm Twin Shock Standard with Stabilizer Buff +16cm Monkey Gorilla】
Monkey Monkey R Swingarm STD Twin +16cm with Stabilizer
This swingarm allows you to mount Monkey R wheels on a Monkey/Gorilla.
The swingarm width is manufactured to 188-191mm.
It is possible to convert your Monkey to 10-inch wheels using Monkey R 10-inch wheels.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

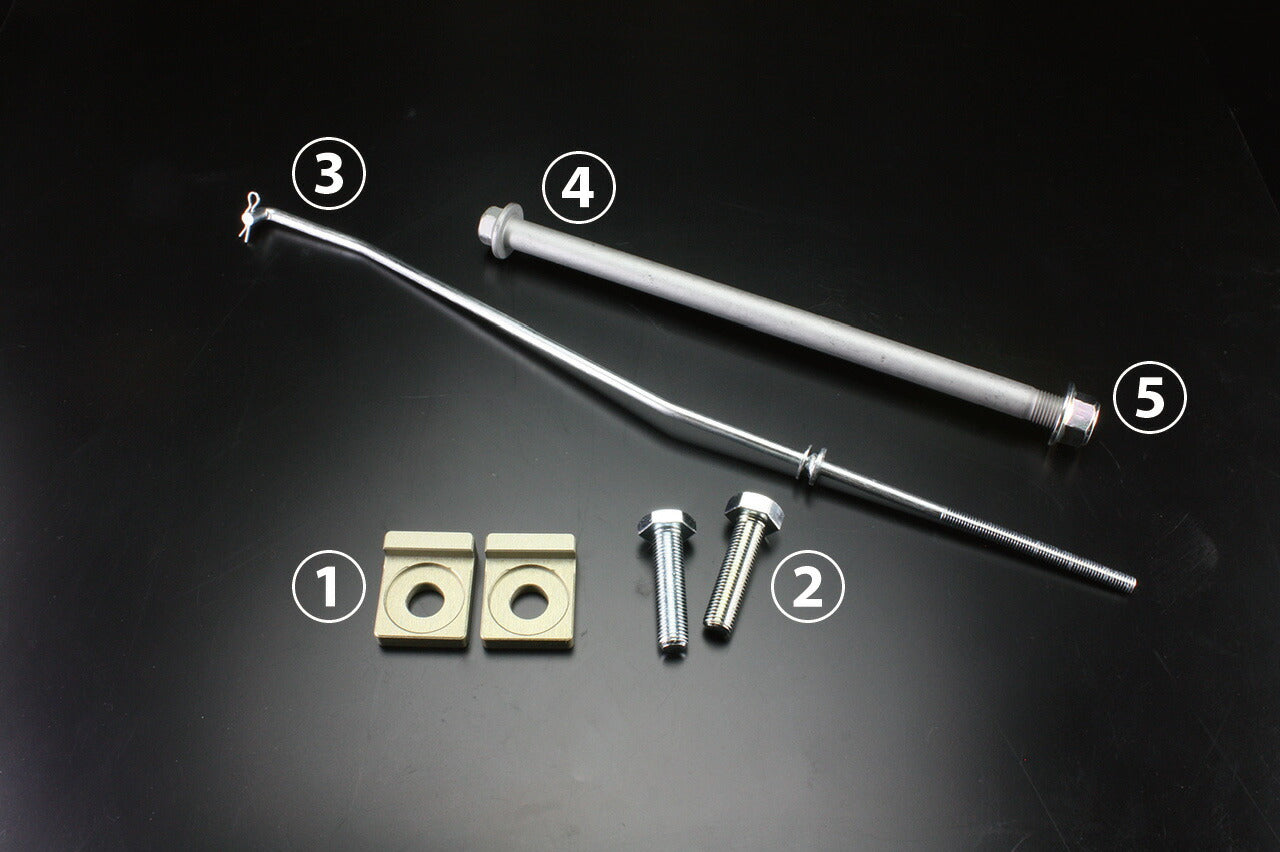

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock suspension receiver bolts 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 230mm 1 (repair part number 38061)
(5) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft 7mm front offset sprocket is required.
*Only triple square pipes also have a chain slider on the bottom.
*Due to individual differences in vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
