NSR Swingarm, Twin Shock, Triple Square, with Stabilizer, Buffed, +16cm, Monkey, Gorilla

【G-Craft 90117 NSR Swingarm Twin Shock Triple Square with Stabilizer Buff +16cm Monkey Gorilla】
Monkey NSR Swingarm T/S Twin +16cm with Stabilizer
This swingarm allows you to install NSR50/80 wheels on your Monkey/Gorilla.
The swingarm width is 184-187mm.
It is possible to convert your Monkey to 12 inches using NSR50/80 12-inch wheels.
You can choose between twin shock and mono shock types.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

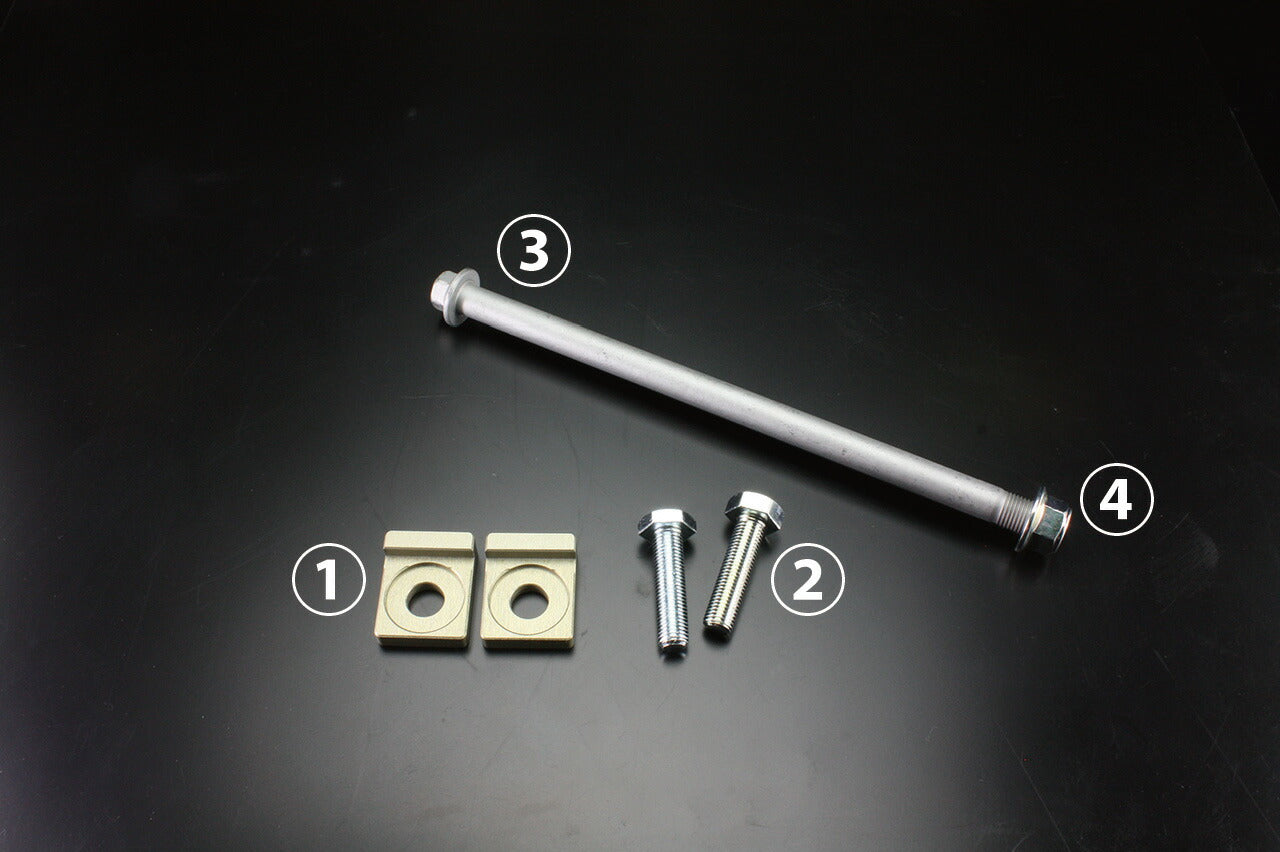

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock suspension mounting bolt 1 set
(3) Axle shaft 230mm 1 piece (repair part number 38061)
(4) Axle nut M12 1 piece (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft front offset sprocket 7mm is required.
*In the case of twin shocks, the chain-side suspension is installed inward to avoid the chain line.
*Only the Triple Square pipe has a chain slider on the bottom.
*Depending on individual vehicle differences, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
