NSR Swingarm Monoshock Triple Square with Stabilizer Buffed +20cm for Monkey Gorilla

【G-Craft 90119 NSR Swingarm Monoshock Triple Square with Stabilizer Buff +20cm Monkey Gorilla】
Monkey NSR Swingarm T/S Mono +20cm with Stabilizer
This swingarm allows you to mount NSR50/80 wheels on your Monkey/Gorilla.
The swingarm width is manufactured to be 184-187mm.
By using 12-inch wheels from an NSR50/80, you can convert your Monkey to 12 inches.
Compatible Models
Monkey, Gorilla
Surface Treatment: Buffed finish
Size: +20cm
Material: 7N01, A5083 material used

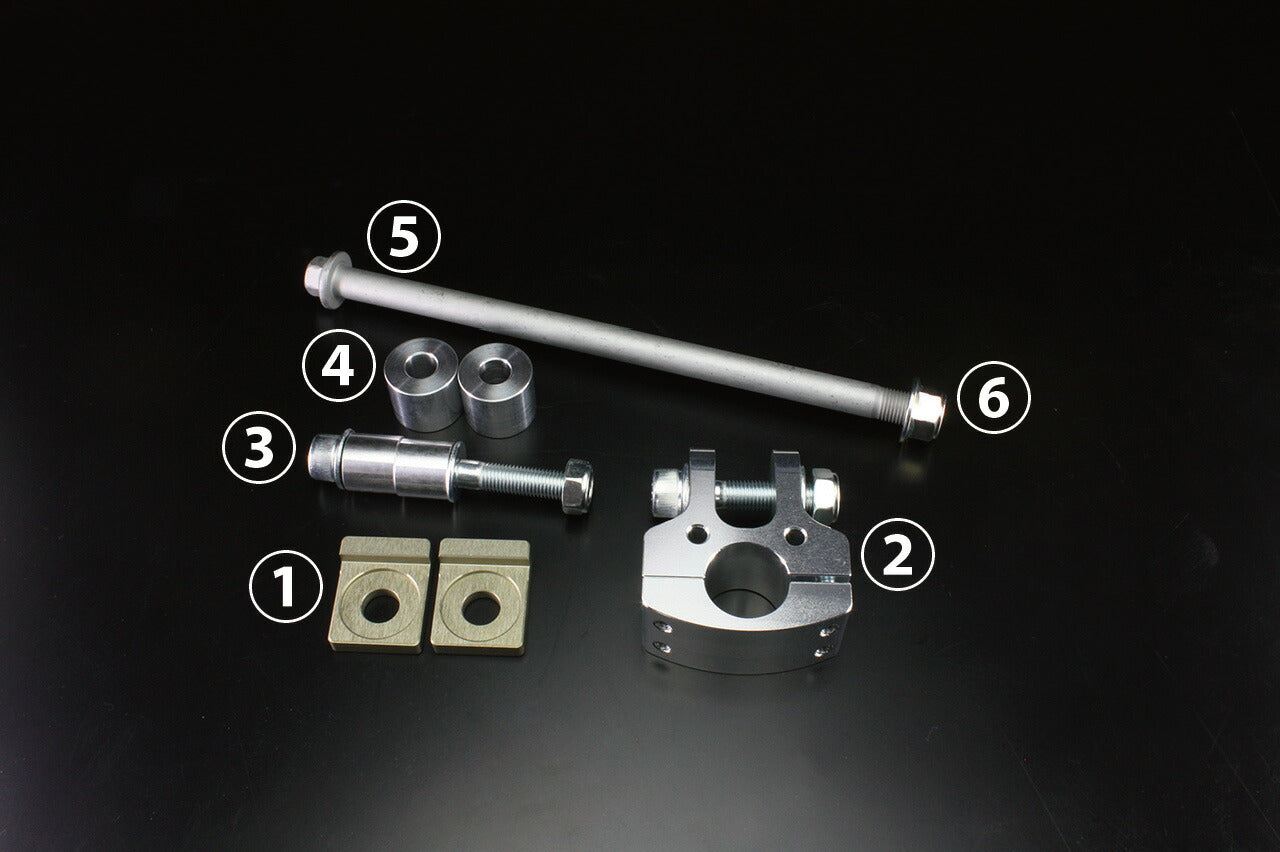

Included Parts
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Frame side monoshock receiver 1 set (repair part number 30033)
(3) Bolt set for shock mounting
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 piece)
Collar 17.9mm 2 (repair part number 68104/1 piece)
(4) Seat fixing collar 22mm 2 (repair part number 68133/1 piece)
(5) Axle shaft 230mm 1 (repair part number 38061)
(6) Axle nut M12 1 (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*A G-Craft front offset sprocket 7mm is required for wheel installation.
*Only Triple Square pipe has a chain slider on the bottom as well.
*Please use rear shocks for NSR50/80.
*Ohlins TTX cannot be installed.
*Standard Stabilizer Type 2 has a main pipe of 42mm x 32mm (thick pipe). (The regular Standard Stabilizer has a 32mm x 32mm (thin pipe) specification.)
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
