Swingarm twin shocks triple square with stabilizer buffed +10cm Monkey Gorilla

【G-Craft 90120 Swingarm Twin Shock Triple Square with Stabilizer Buff +10cm Monkey Gorilla】
Monkey Monkey R Swingarm T/S Twin +10cm with Stabilizer
This swingarm allows you to install Monkey R wheels on your Monkey/Gorilla.
The swingarm width is manufactured to 188-191mm.
It is possible to convert your Monkey to 10-inch wheels using Monkey R's 10-inch wheels.
Compatible Models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +10cm
Material: 7N01, A5083 material used

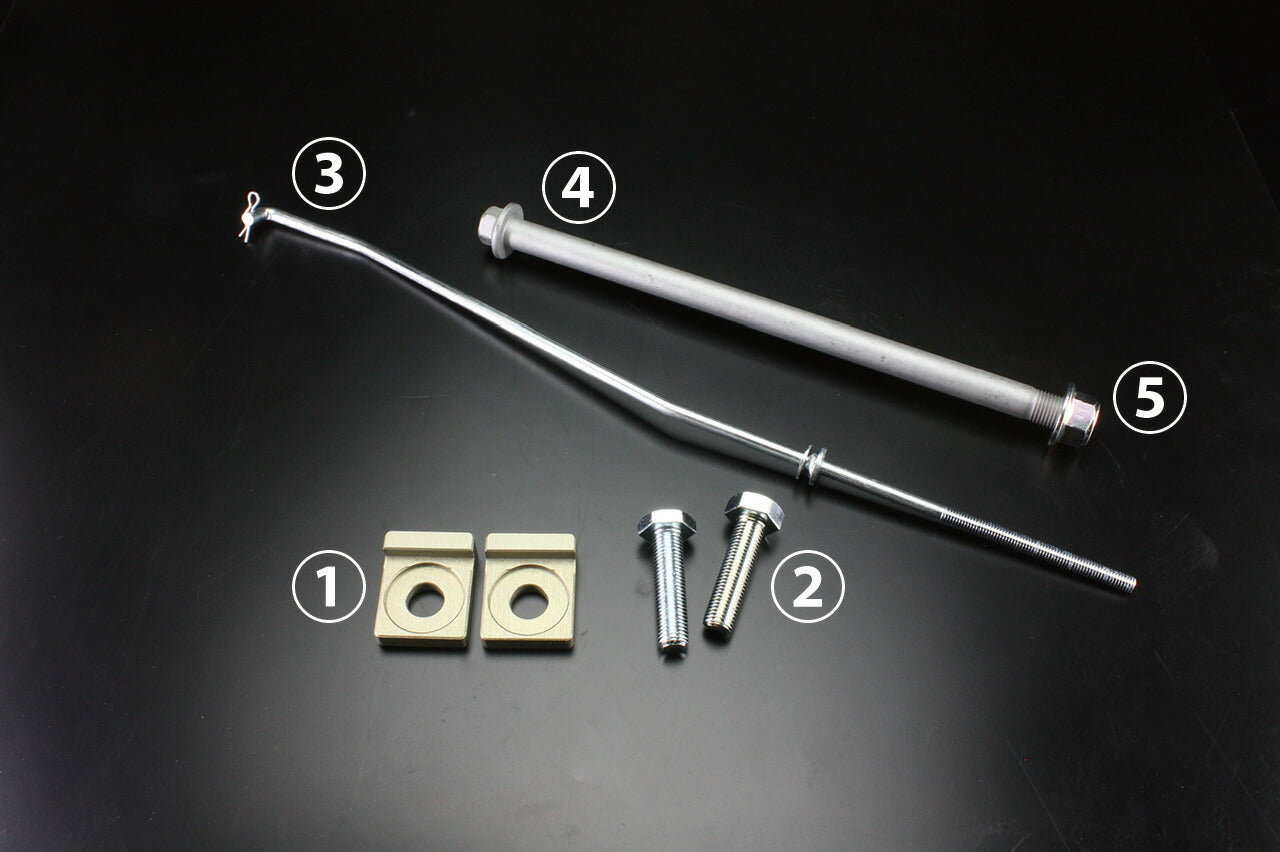

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock suspension receiver bolts 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 230mm 1 (repair part number 38061)
(5) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft front offset sprocket 7mm is required.
*Only Triple Square pipes have chain sliders on the bottom as well.
*Depending on individual vehicle differences, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
