Swingarm, monoshock, triple-square, with stabilizer, buffed, +16cm, for Monkey/Gorilla

【G-Craft 90123 Swingarm Monoshock Triple Square with Stabilizer Buff +16cm Monkey Gorilla】
Monkey Monkey R Swingarm T/S Mono +16cm with Stabilizer
This swingarm allows you to install Monkey R wheels on a Monkey or Gorilla.
The swingarm width is manufactured to fit 188-191mm.
It is possible to convert a Monkey to 10-inch wheels by using Monkey R 10-inch wheels.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +16cm
Material: 7N01, A5083 material used

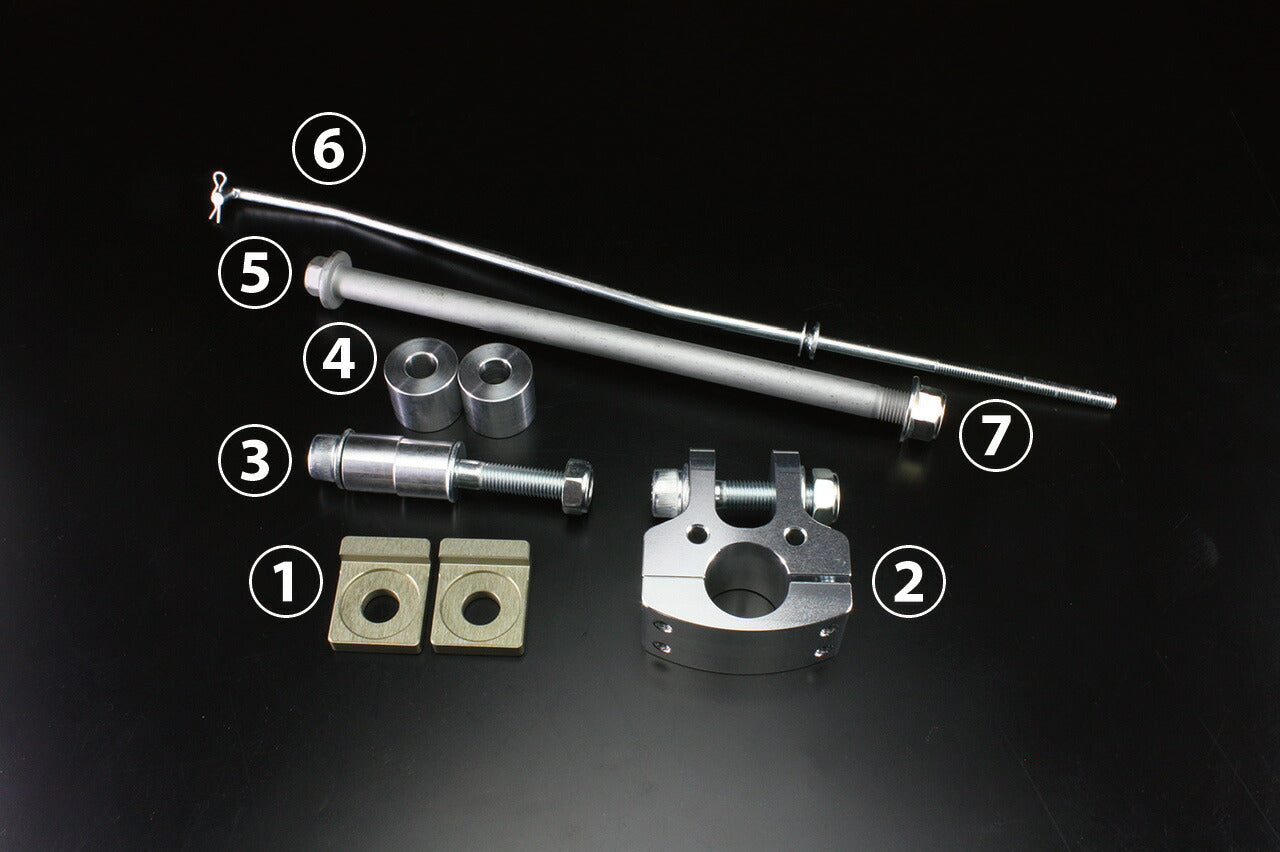

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Frame side monoshock receiver 1 set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 piece)
Collar 17.9mm 2 (repair part number 68104/1 piece)
(4) Seat fixing collar 22mm 2 (repair part number 68133/1 piece)
(5) Axle shaft 230mm 1 (repair part number 38061)
(6) Drum brake rod 1 (depending on swingarm length)
(7) Axle nut M12 1 (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft front offset sprocket 7mm is required.
*Only Triple Square pipes have chain sliders on the bottom.
*Ohlins TTX cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
