Swingarm Triple Square Stabilized Buffed +6cm Monkey R

【G-Craft 90126 Swingarm Triple Square Stabilizer Buff +6cm Monkey R】
Monkey R Swingarm T/S +6cm with Stabilizer
This swingarm allows the installation of Monkey R wheels.
The swingarm width is manufactured between 188-191mm.
Compatible Models
Monkey R
Surface Treatment: Buff finish
Size: +6cm
Material: 7N01, A5083 material used

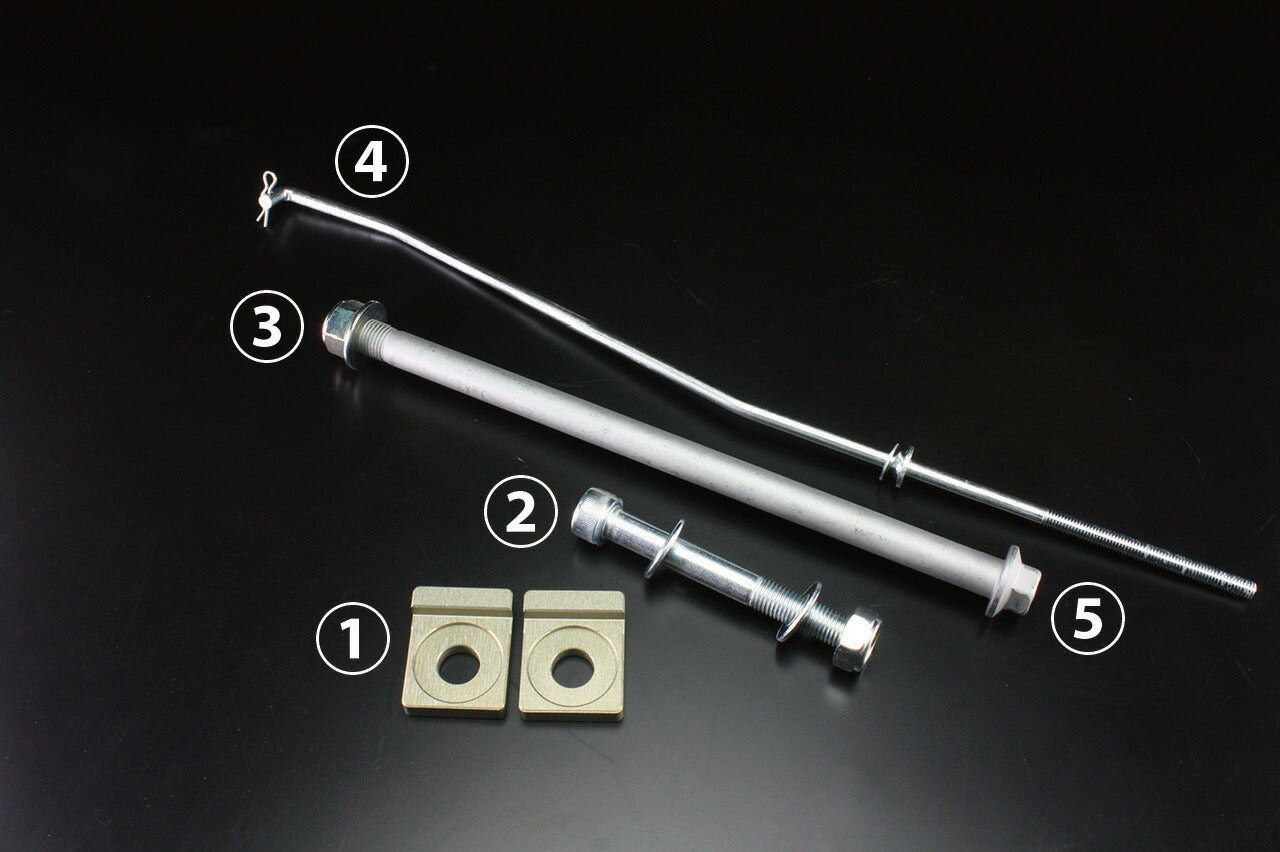

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt x1 (Repair part number 65235)
Nut x1 (Repair part number 65229)
Washer x2 (Repair part number 65090/1pc)
(3) Axle nut M12 x1 (Repair part number 38001)
(4) Drum brake rod x1 (depending on swingarm length) *Not included for +0cm
(5) Axle shaft 230mm x1 (Repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is on the lower side.
*The image is for illustration purposes only; product design and specifications are subject to change without notice. Please be aware.
