Swingarm, drum, standard, no stabilizer, buffed, +10cm for Ape 50/100

[G-Craft 90134 Swingarm Drum Standard No Stabilizer Buff +10cm APE50/100]
APE50/100 Swingarm Drum STD +4cm No Stabilizer
This swingarm allows the installation of wheels from an APE100 (drum specification model).
The swingarm width is manufactured between 184-187mm.
A torque rod receiver for securing the drum hub is welded on. (No brake stopper on the inside of the swingarm)
By using part number 33135 rear floating kit and part number 39149 rear disc hub, you can convert to disc brakes.
Disc brake conversion is also possible by using part number 33135 rear floating kit and NSR50/80 wheels.
Compatible models
APE50/100
Surface treatment: Buffed finish
Size: +10cm
Material: 7N01, A5083 material used

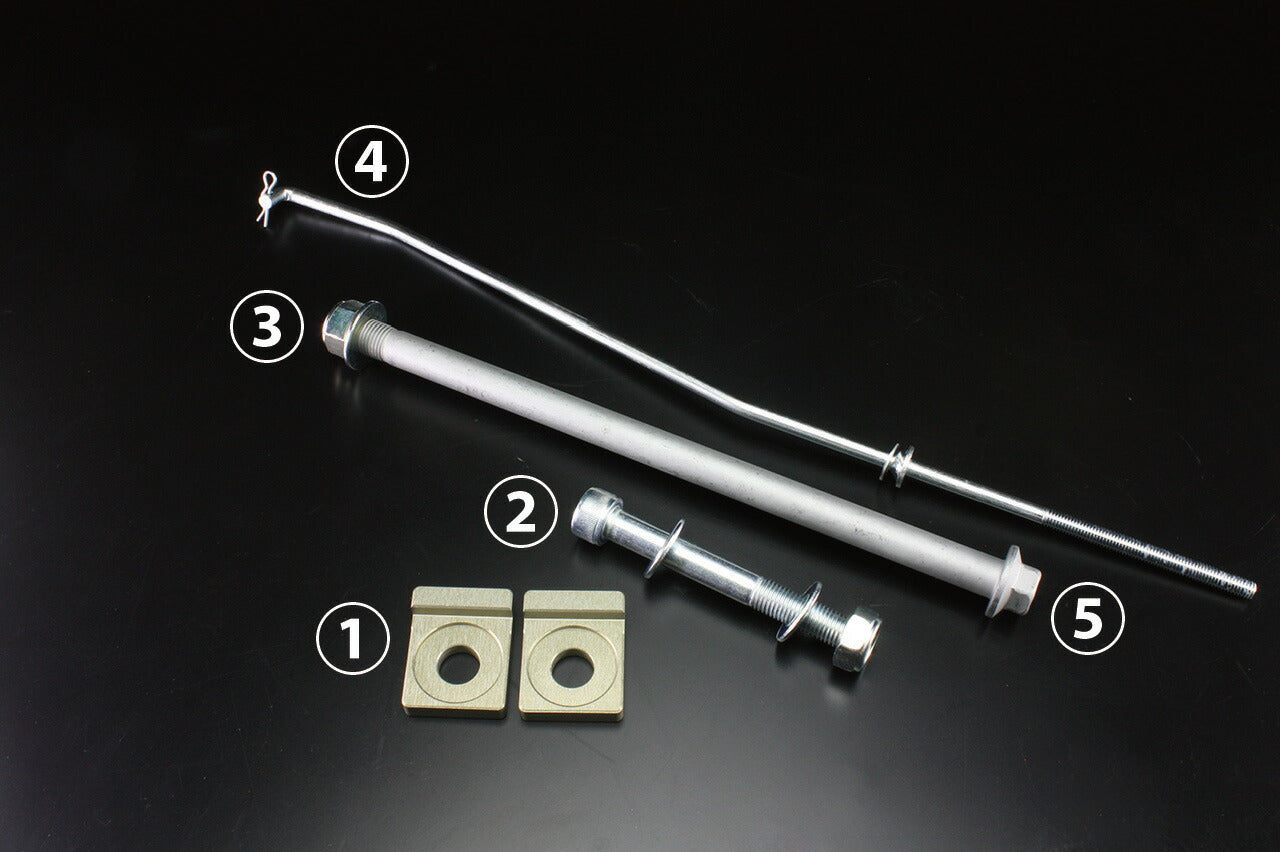

Included accessories
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 65242)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 piece)
(3) Axle nut M12 1 (repair part number 38001)
(4) Drum brake rod 1 (depending on swingarm length) *Not included with +0cm
(5) Axle shaft 230mm 1 (repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is on the upper side.
*Compatible with APE genuine rear shocks (link type).
*12-3.75J aluminum wheels can be installed.
*Images are for illustration purposes only; the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
