Swingarm Drum Triple Square No Stabilizer Buffed +4cm Ape 50/100

【G-Craft 90136 Swingarm Drum Triple Square No Stabilizer Buff +4cm APE50/100】
APE50/100 Swingarm Drum T/S +4cm No Stabilizer
This swingarm allows the installation of wheels from an APE100 (drum brake model).
The swingarm width is manufactured at 184-187mm.
A torque rod receiver for securing the drum hub is welded on. (There is no brake stopper on the inside of the swingarm.)
It can be converted to disc brakes by using product number 33135 rear floating kit and product number 39149 rear disc hub.
Disc brake conversion is also possible by using product number 33135 rear floating kit and NSR50/80 wheels.
Compatible models
APE50/100
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

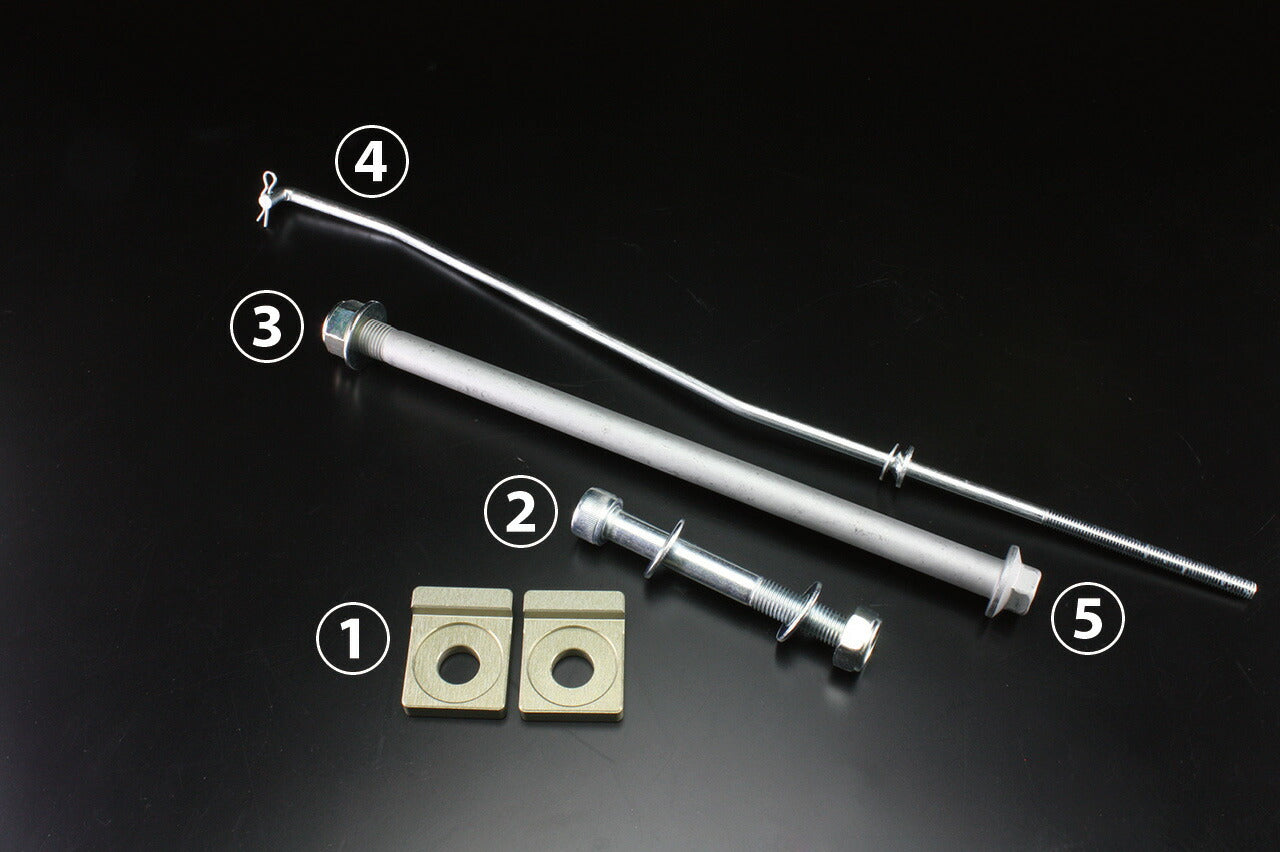

Accessories
(1) Chain adjuster set 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 65242)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
(3) Axle nut M12 1 (repair part number 38001)
(4) Drum brake rod 1 (according to swingarm length) *Not included with +0cm
(5) Axle shaft 230mm 1 (repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is on the upper side.
*Rear shocks are compatible with APE genuine (link type).
*12-3.75J aluminum wheels can be installed.
*The image is for illustration purposes, and the design and specifications of the displayed product are subject to change without notice. Please be aware.
