Swingarm Drum Triple Square No Stabilizer Buffed +10cm APE50/100

【G-Craft 90137 Swingarm Drum Triple Square No Stabilizer Buff +10cm APE50/100】
APE50/100 Swingarm Drum T/S +10cm No Stabilizer
This swingarm can accommodate wheels from the APE100 (drum brake specification).
The swingarm width is manufactured at 184-187mm.
A torque rod receiver for securing the drum hub is welded on. (There is no brake stopper on the inside of the swingarm.)
By using part number 33135 Rear Floating Kit and part number 39149 Rear Disc Hub, it can be converted to disc brakes.
Disc brake conversion is also possible by using part number 33135 Rear Floating Kit and NSR50/80 wheels.
Compatible models
APE50/100
Surface treatment: Buff finish
Size: +10cm
Material: 7N01, A5083 material used

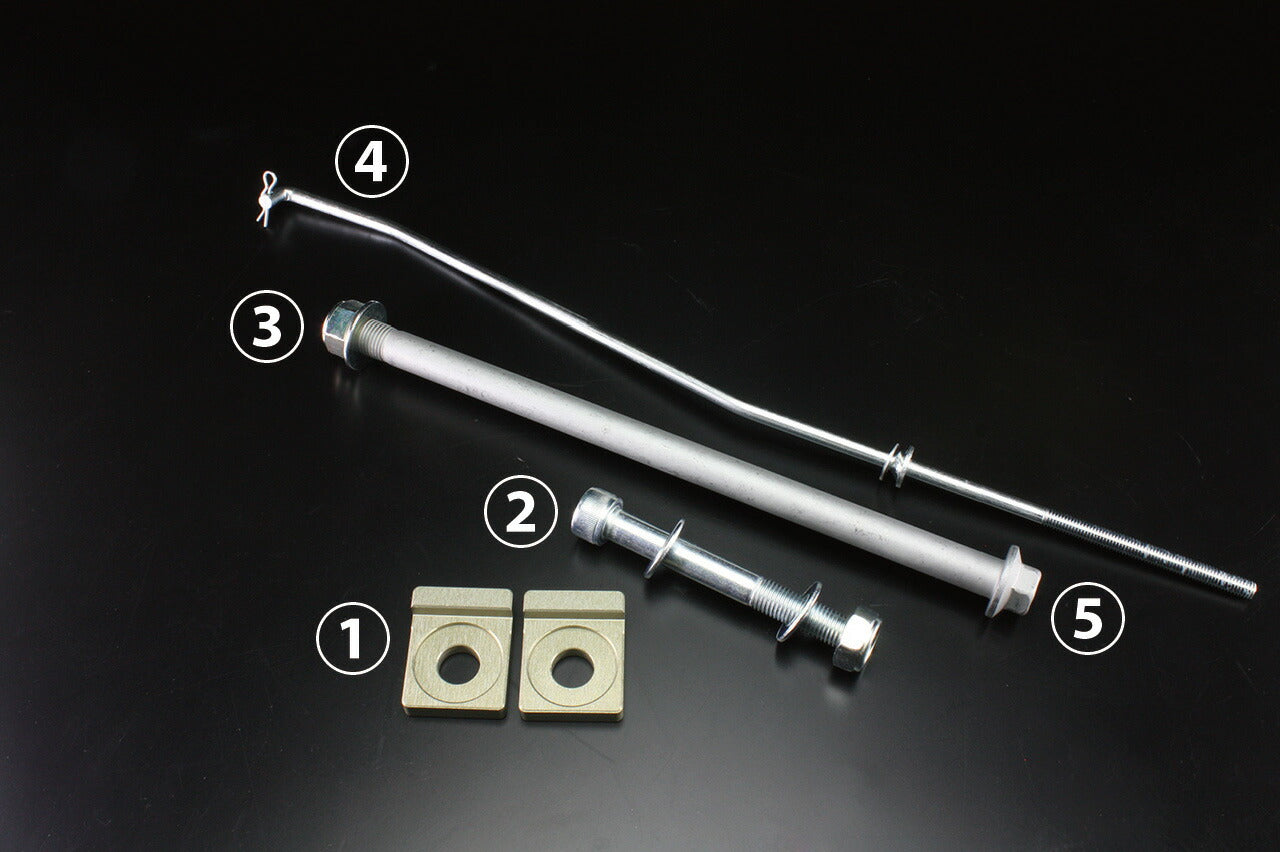

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (Repair part number 65242)
Nut 1 (Repair part number 65229)
Washer 2 (Repair part number 65090/1 piece)
(3) Axle nut M12 1 (Repair part number 38001)
(4) Drum brake rod 1 (depending on swingarm length) *Not included with +0cm
(5) Axle shaft 230mm 1 (Repair part number 38061)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is on the upper side.
*Rear shock is compatible with APE genuine (link type).
*12-3.75J aluminum wheels can be installed.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
