Swingarm NSR (Type D) Standard, No Stabilizer, Buff +0cm, APE50/100

【G-Craft 90138 Swingarm NSR (Type D) Standard, without Stabilizer, Buffed, +0cm, Ape 50/100】
Ape 50/100 Swingarm NSR (Type D) STD +0cm without Stabilizer
This swingarm allows the installation of NSR50/80 (Type D) wheels.
The swingarm width is manufactured to be 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
If you use caliper support part number 33136 and rear disc hub part number 39149, you can convert a drum-brake model to disc brakes.
Disc conversion is also possible using caliper support part number 33136 and NSR50/80 wheels.
■When the vehicle body (frame) is Ape Type D■
The stabilizer option is available from +4cm.
For 0cm to +2cm, the stabilizer and frame will interfere, so it cannot be installed.
Installation is possible if the frame (brake fluid master stay) is cut or bent.
Compatible models
Ape 50/100
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 material used

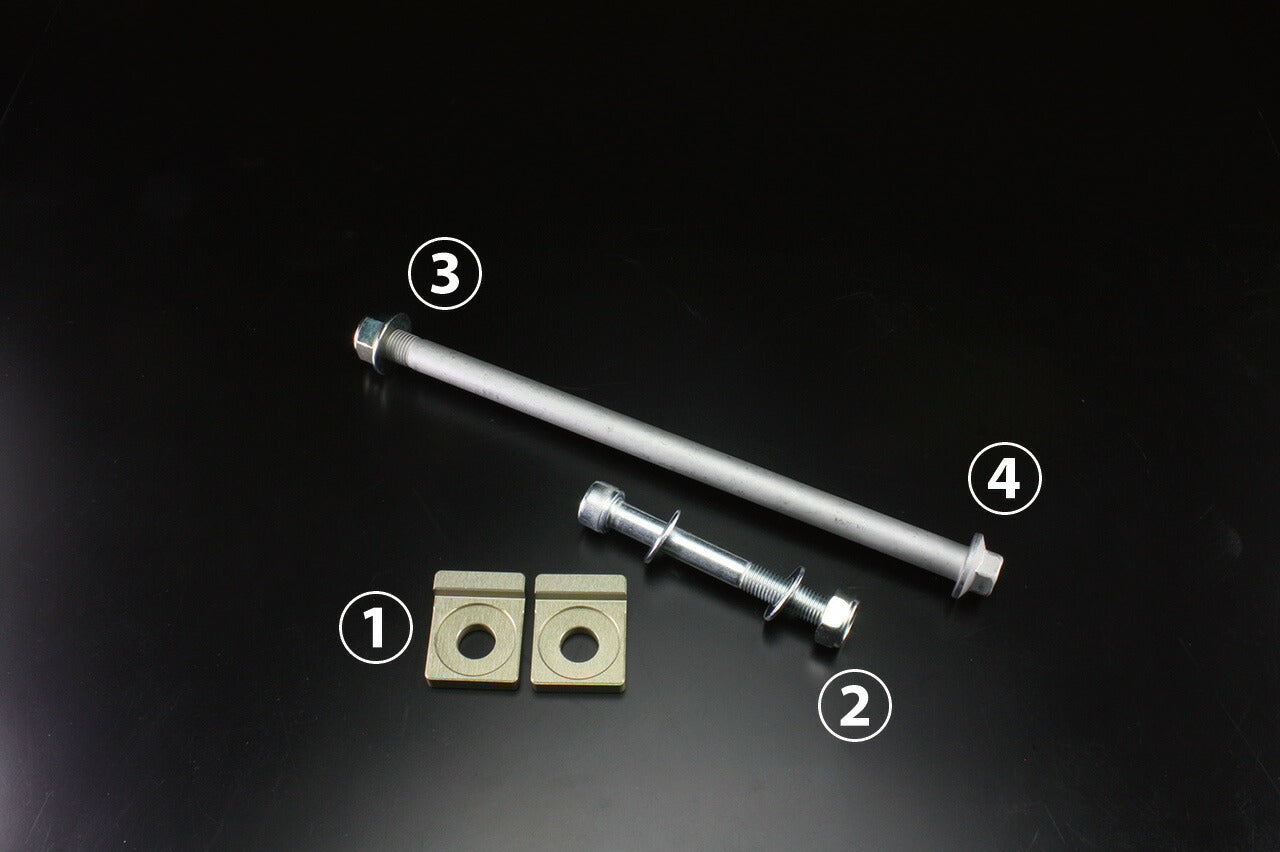

Accessories
(1) Chain tensioner block 1 set (dedicated to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 piece (repair part number 65242)
Nut 1 piece (repair part number 65229)
Washers 2 pieces (repair part number 65090/1 piece)
(3) Axle nut M12 1 piece (repair part number 38001)
(4) Axle shaft 230mm 1 piece (repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Ape normal drum hub cannot be used.
*The stabilizer will be on the upper side.
*Compatible with Ape genuine (link type) rear shock.
*12-3.75J aluminum wheels can be installed.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
