Swingarm NSR (Type D) Linkless Triple Square No Stabilizer Buff +10cm APE50/100

【G-Craft 90155 Swingarm NSR (Type D) Linkless Triple Square No Stabilizer Buff +10cm Ape 50/100】
Ape 50/100 Swingarm NSR (Type D) Linkless T/S +10cm No Stabilizer
This swingarm allows the installation of NSR50/80 (Type D) wheels.
The swingarm width is manufactured between 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
By using caliper support part number 33136 and rear disc hub part number 39149, you can convert from a drum-spec vehicle to a disc-spec vehicle.
Disc conversion is possible by using caliper support part number 33136 and NSR50/80 wheels.
Compatible models
Ape 50/100
Surface treatment: Buff finish
Size: +10cm
Material: 7N01, A5083 material used

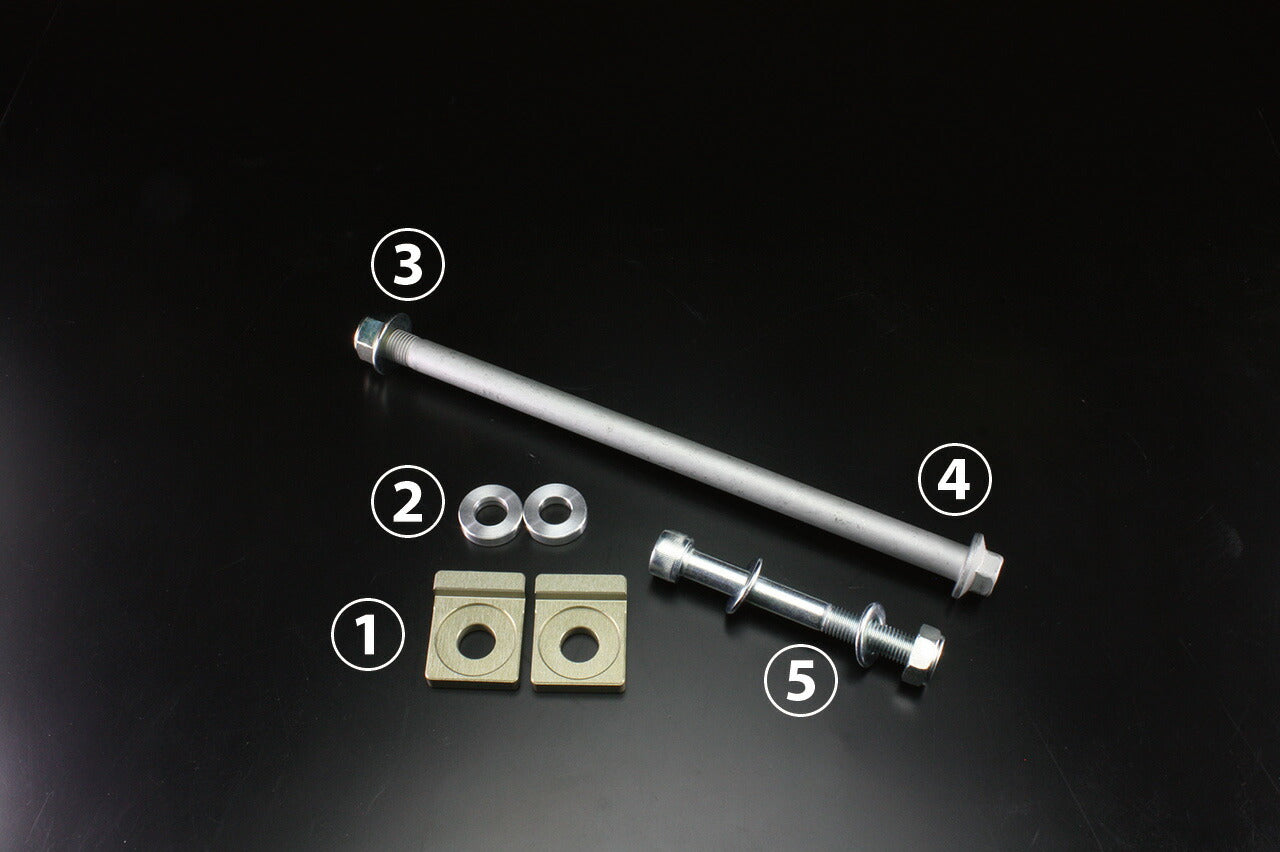

Included accessories
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Collar for frame-side shock mounting 5.4mm 2 pieces (repair part number 68139/1 piece)
(3) Axle nut M12 1 piece (repair part number 38001)
(4) Axle shaft 230mm 1 piece (repair part number 38061)
(5) Bolt set for swingarm-side shock mounting
Bolt 1 piece (repair part number 65235)
Nut 1 piece (repair part number 65229)
Washer 2 pieces (repair part number 65090/1 piece)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Ape normal drum hub cannot be used.
*The basic stabilizer will be on the lower side for linkless models.
*Rear shocks must be NSR50/80 compatible (Ape normal cannot be used).
*12-3.75J aluminum wheels can be installed.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
