Swingarm Monkey Wide Standard No Stabilizer Buffed +6cm Monkey R

【G-Craft 90160 Swingarm Monkey Wide Standard No Stabilizer Buff +6cm Monkey R】
Monkey R Swingarm Monkey Wide STD +6cm No Stabilizer
This swingarm can be equipped with a wide rear disc hub (39048).
The swingarm width is 187-190mm.
*Monkey Wide refers to a product designed with a width that can accommodate 10-inch 4J wheels.
Compatible models
Monkey R
Surface treatment: Buff finish
Size: +6cm
Material: 7N01, A5083 material used

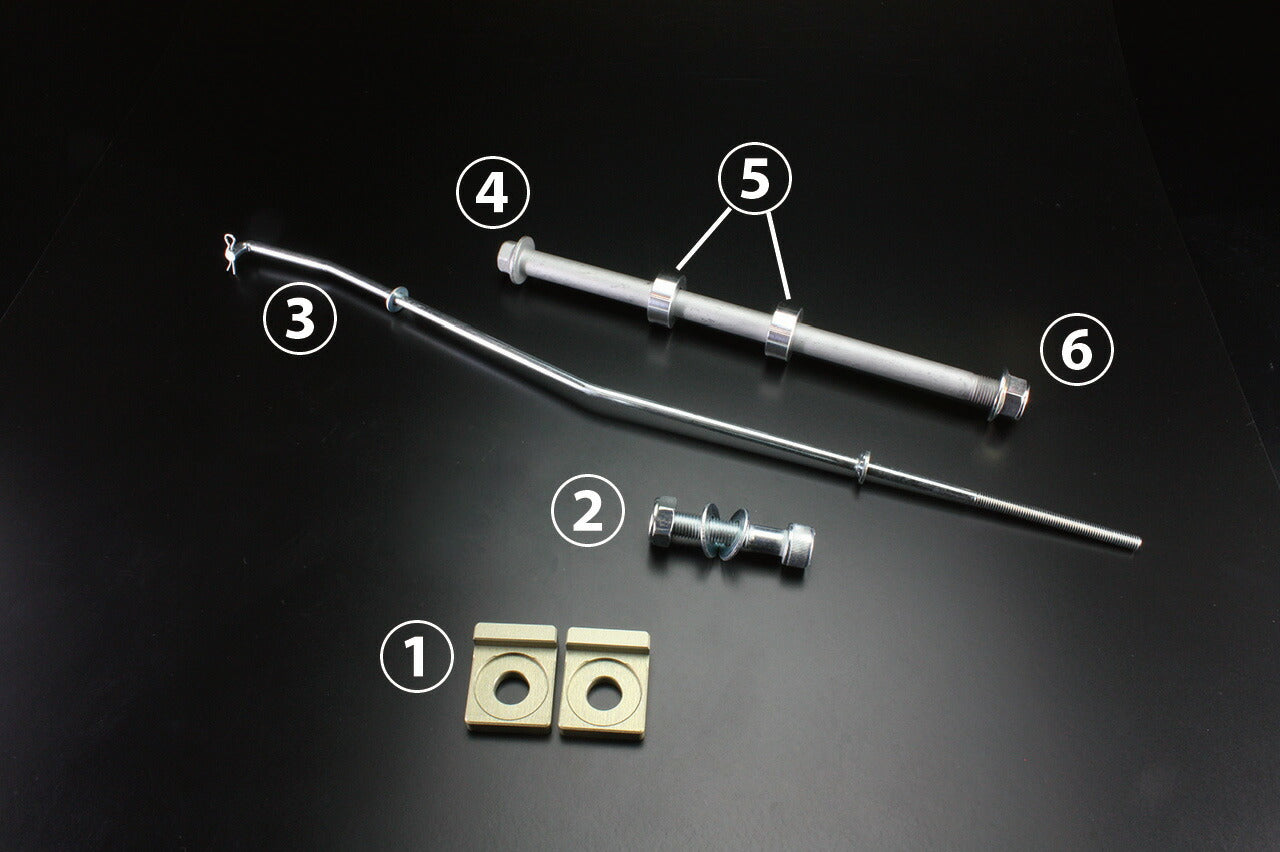

Accessories
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 pc (repair part number 65235)
Nut 1 pc (repair part number 65229)
Washer 2 pcs (repair part number 65090/1 pc per pack)
(3) Drum brake rod 1 pc (depending on swingarm length) *Not included with +0cm
(4) Axle shaft 230mm 1 pc (repair part number 38061)
(5) Axle collar 10mm 2 pcs (repair part number 68134/1 pc per pack)
(6) Axle nut M12 1 pc (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer will be on the bottom.
*Rear shocks are compatible with Monkey R, NSR50/80 stock.
*A 7mm offset sprocket is required for the front.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
