Swingarm Monkey Wide Standard Stabilizer Buffed +6cm Monkey R

【G-Craft 90161 Swingarm Monkey Wide Standard with Stabilizer Buff +6cm Monkey R】
Monkey R Swingarm Monkey Wide STD +6cm with Stabilizer
This swingarm can be fitted with a wide rear disc hub (39048).
The swingarm width is manufactured to 187-190mm.
*Monkey Wide refers to a width designed to accommodate 10-inch 4J wheels.
Compatible models
Monkey R
Surface treatment: Buff finish
Size: +6cm
Material: 7N01, A5083 material used

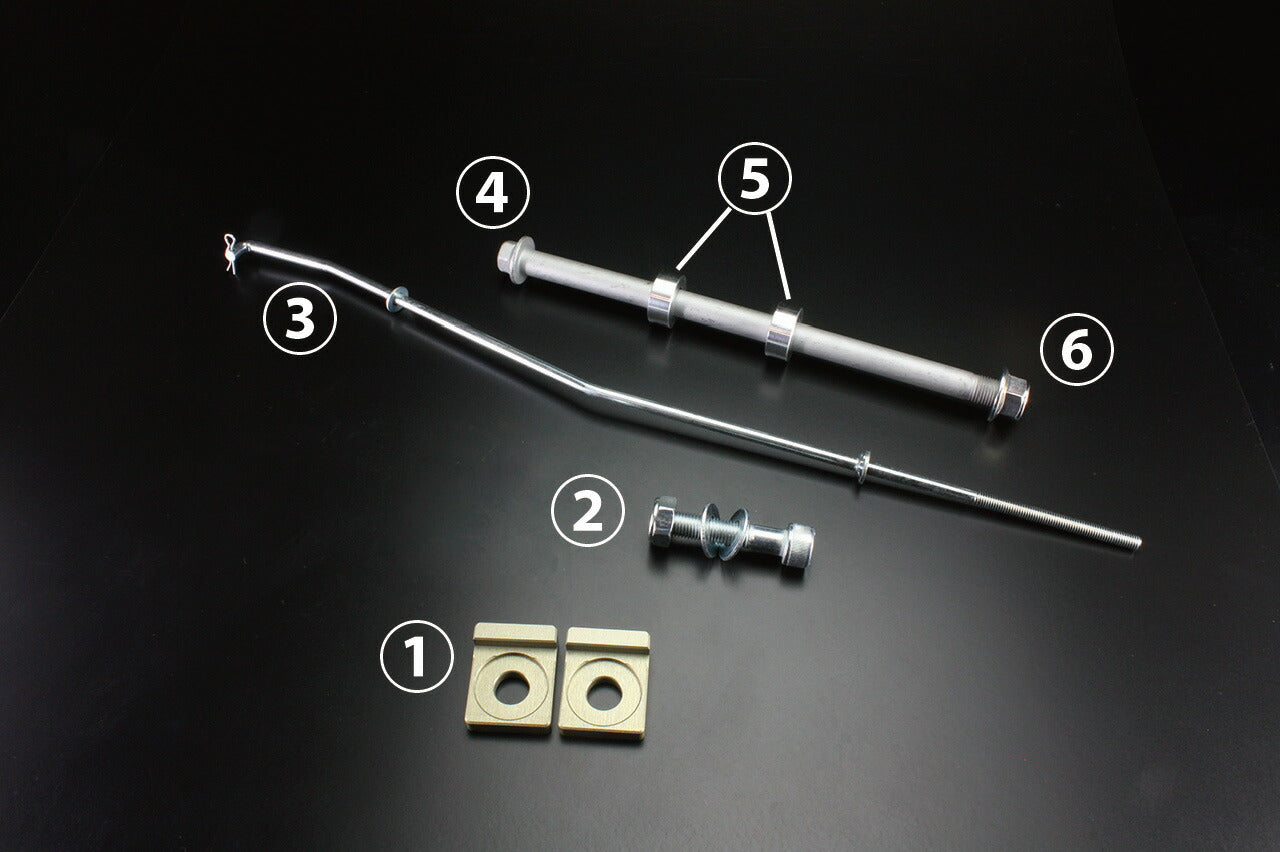

Included parts
(1) Chain adjuster set (specific to each pipe shape)
(2) Bolt set for shock mounting
Bolt x 1 (Repair part number 65235)
Nut x 1 (Repair part number 65229)
Washer x 2 (Repair part number 65090/1 pc per pack)
(3) Drum brake rod x 1 (depending on swingarm length) *Not included with +0cm
(4) Axle shaft 230mm x 1 (Repair part number 38061)
(5) Axle collar 10mm x 2 (Repair part number 68134/1 pc per pack)
(6) Axle nut M12 x 1 (Repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer will be on the bottom side.
*Rear shock supports Monkey R and NSR50/80 stock.
*A 7mm offset sprocket is required for the front.
*Images are for illustration purposes only. The design and specifications of the products shown may change without prior notice. Please be aware.
