Swingarm Triple Square Stabilized Buffed +0cm KSR110

[G-Craft 90169 Swingarm Triple Square with Stabilizer Buff +0cm KSR110]
KSR110 Swingarm T/S +0cm with Stabilizer
KSR110 genuine wheels can be installed.
Compatible models
KSR110
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 material used

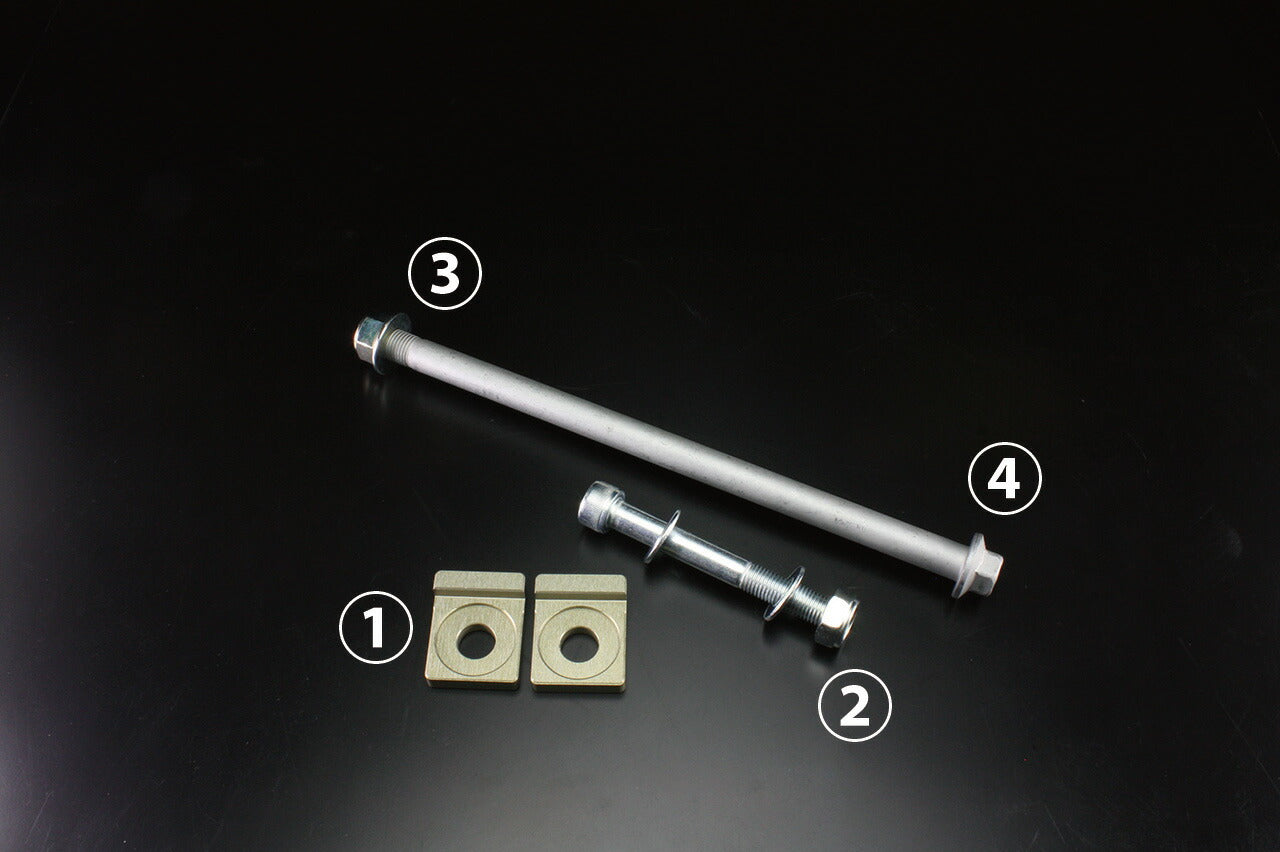

Accessories
(1) Chain adjuster set (one for each pipe shape)
(2) Shock mounting bolt set
Bolt x 1 (Repair part number 6220726)
Nut x 1 (Repair part number 65229)
Washer x 2 (Repair part number 65090/1 pc per pack)
(3) Axle nut M12 x 1 (Repair part number 38001)
(4) Axle shaft 230mm x 1 (Repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The pivot section is standard with bushing specifications. (Dust seals are not included and the product can be installed on the vehicle without them.) Dedicated dust seals are included only with the needle bearing option.
*If the stabilizer is on the lower side, the side stand spring hook may interfere. In that case, bend the hook plate to accommodate.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
