Swingarm Triple Square Stabilized Buffed +4cm KSR110

【G-Craft 90170 Swingarm Triple Square with Stabilizer Buff +4cm KSR110】
KSR110 Swingarm T/S +4cm with Stabilizer
Compatible with KSR110 genuine wheels.
Compatible models
KSR110
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

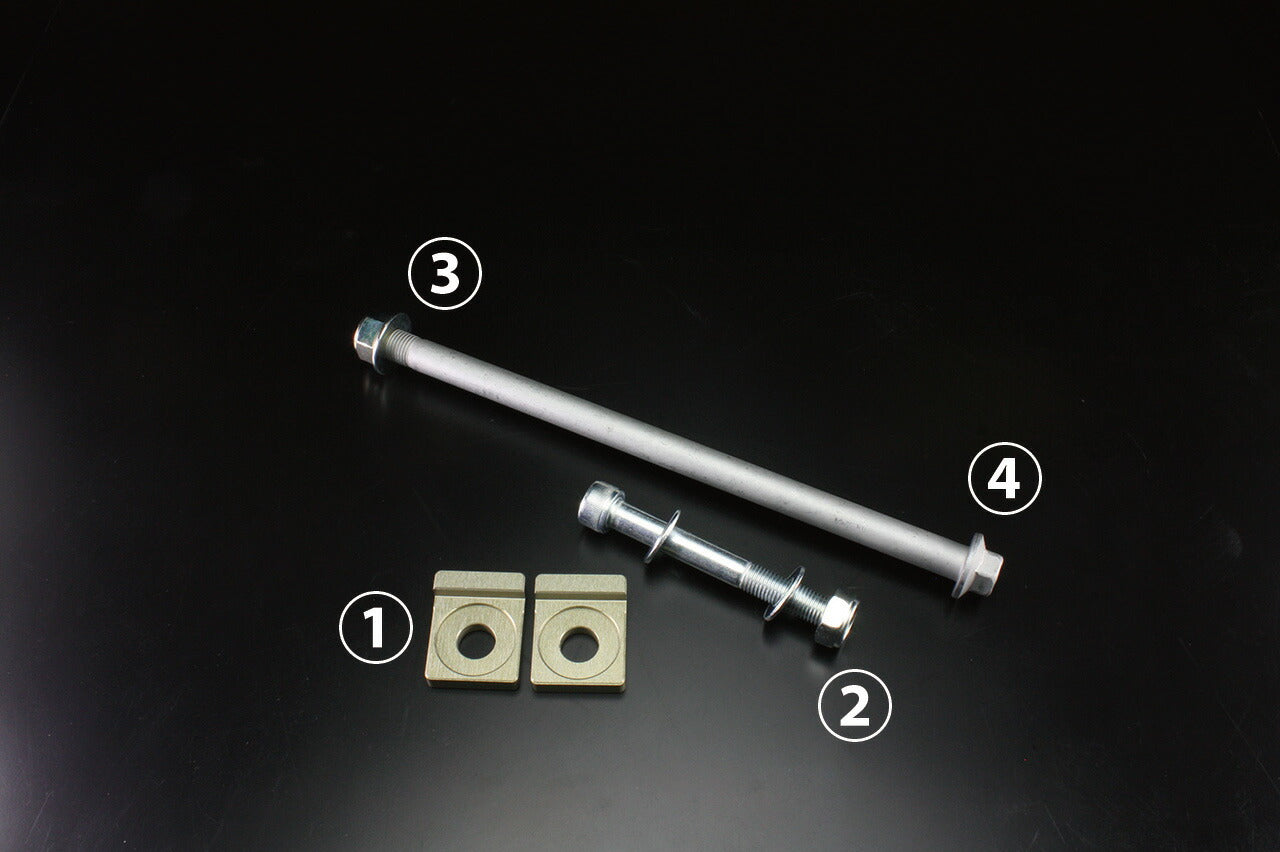

Accessories
(1) Chain puller block 1 set (pipe shape specific)
(2) Shock mounting bolt set
Bolt 1 (repair part number 6220726)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc.)
(3) Axle nut M12 1 (repair part number 38001)
(4) Axle shaft 230mm 1 (repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The pivot section is standard with a bushing specification. (Dust seals are not included and can be installed on the vehicle without them.) Dedicated dust seals are included only with the needle bearing option.
*If the stabilizer is on the bottom, the side stand spring hook may interfere. In that case, bend the hook plate to accommodate.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
