Swingarm Triple Square No Stabilizer Buffed +10cm KSR110

【G-Craft 90174 Swingarm Triple Square No Stabilizer Buffed +10cm KSR110】
KSR110 Swingarm T/S +10cm No Stabilizer
KSR110 genuine wheels can be installed.
Compatible models
KSR110
Surface treatment: Buffed finish
Size: +10cm
Material: 7N01, A5083 material used

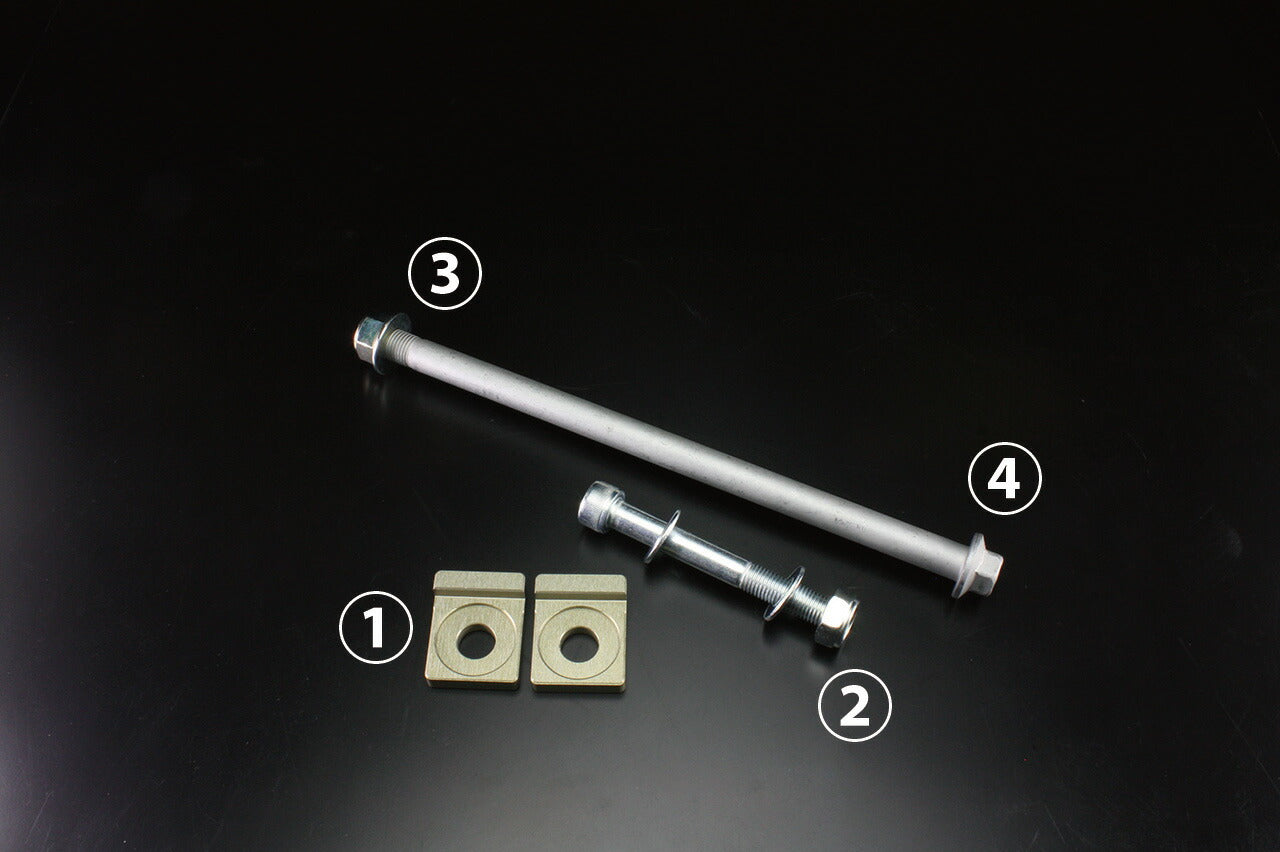

Accessories
(1) Chain adjuster block 1 set (pipe shape specific)
(2) Shock mounting bolt set
Bolt 1 (Repair Part No. 6220726)
Nut 1 (Repair Part No. 65229)
Washer 2 (Repair Part No. 65090/1 pc per pack)
(3) Axle nut M12 1 (Repair Part No. 38001)
(4) Axle shaft 230mm 1 (Repair Part No. 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The pivot section comes standard with a bush specification. (Dust seals are not included and can be installed on the vehicle without them.) Dedicated dust seals are included only with the needle bearing option.
*If using a lower stabilizer, the side stand spring hook may interfere. In such cases, bend the hook plate to accommodate.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware.
