NSR Wheels Swingarm Standard Non-Stabilized Buffed +4cm KSR110

【G-Craft 90176 NSR Wheel Swingarm Standard No Stabilizer Buff +4cm KSR110】
KSR110 NSR Wheel Swingarm STD +4cm No Stabilizer
Compatible with NSR50/80 wheels.
Compatible Models
KSR110
Surface Treatment: Buffed Finish
Size: +4cm
Material: 7N01, A5083 material used

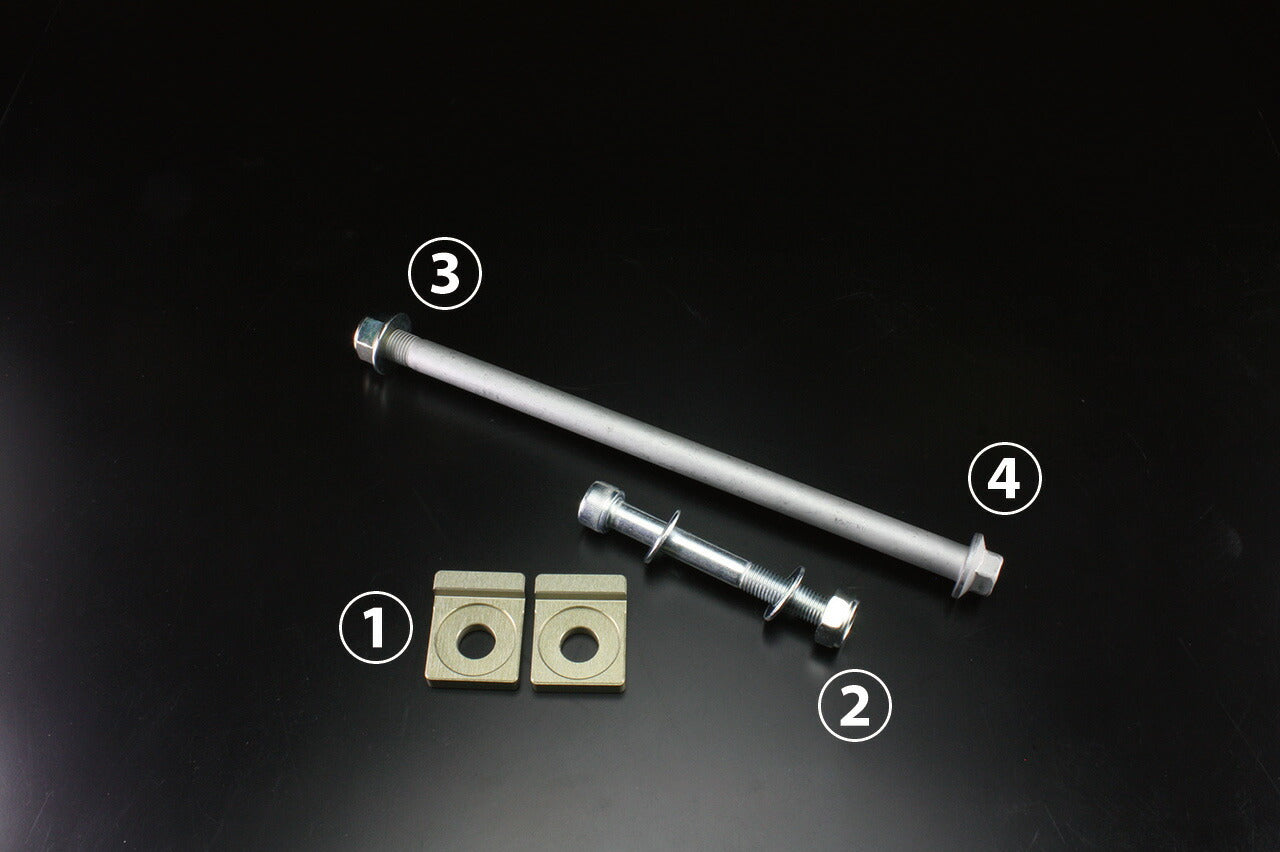

Accessories
(1) Chain puller block 1 set (dedicated to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (Repair Part No. 6220726)
Nut 1 (Repair Part No. 65229)
Washer 2 (Repair Part No. 65090/1 pc.)
(3) Axle nut M12 1 (Repair Part No. 38001)
(4) Axle shaft 230mm 1 (Repair Part No. 38061)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Installation requires a separate front offset sprocket of 7mm and the rear sprocket mounting surface (wheel side) must be machined by 5mm.
*The pivot section is standard with bushing specifications. (Dust seals are not included and can be installed on the vehicle without using them.) Dedicated dust seals are included only with the needle bearing option.
*If using a lower stabilizer, the side stand spring hook may interfere. In such cases, bend the hook plate to accommodate.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
