NSR wheel swingarm, triple square, with stabilizer, buffed, +4cm, KSR110

[G-Craft 90179 NSR Wheel Swingarm Triple Square Stabilizer Buff +4cm KSR110]
KSR110 NSR Wheel Swingarm T/S +4cm with Stabilizer
Can be fitted with NSR50/80 wheels.
Compatible models
KSR110
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

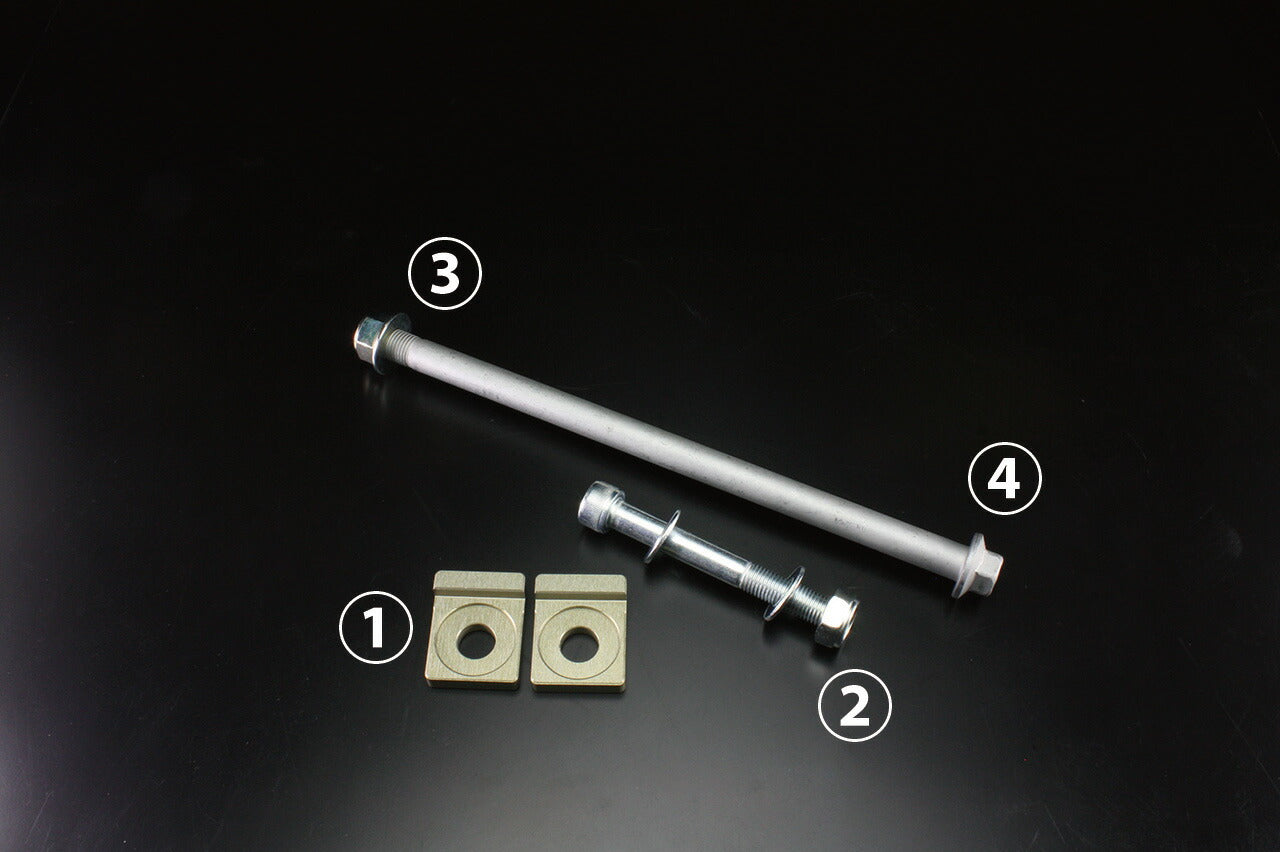

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (Repair Part No. 6220726)
Nut 1 (Repair Part No. 65229)
Washer 2 (Repair Part No. 65090/1 pc per pack)
(3) Axle nut M12 1 (Repair Part No. 38001)
(4) Axle shaft 230mm 1 (Repair Part No. 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Installation requires a 7mm front offset sprocket and the rear sprocket mounting surface (wheel side) must be shaved down by 5mm.
*The pivot part is standard with a bushing specification. (Dust seals are not included and the product can be installed on the vehicle without them.) Dedicated dust seals are included only with the needle bearing option.
*If using a lower stabilizer, the side stand spring hook may interfere. In this case, bend the hook plate to resolve the issue.
*The images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
