NSR Wheel Swingarm Triple Square No Stabilizer Buff +4cm KSR110

【G-Craft 90182 NSR Wheel Swingarm Triple Square No Stabilizer Buff +4cm KSR110】
KSR110 NSR Wheel Swingarm T/S +4cm No Stabilizer
Compatible with NSR50/80 wheels.
Compatible models
KSR110
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

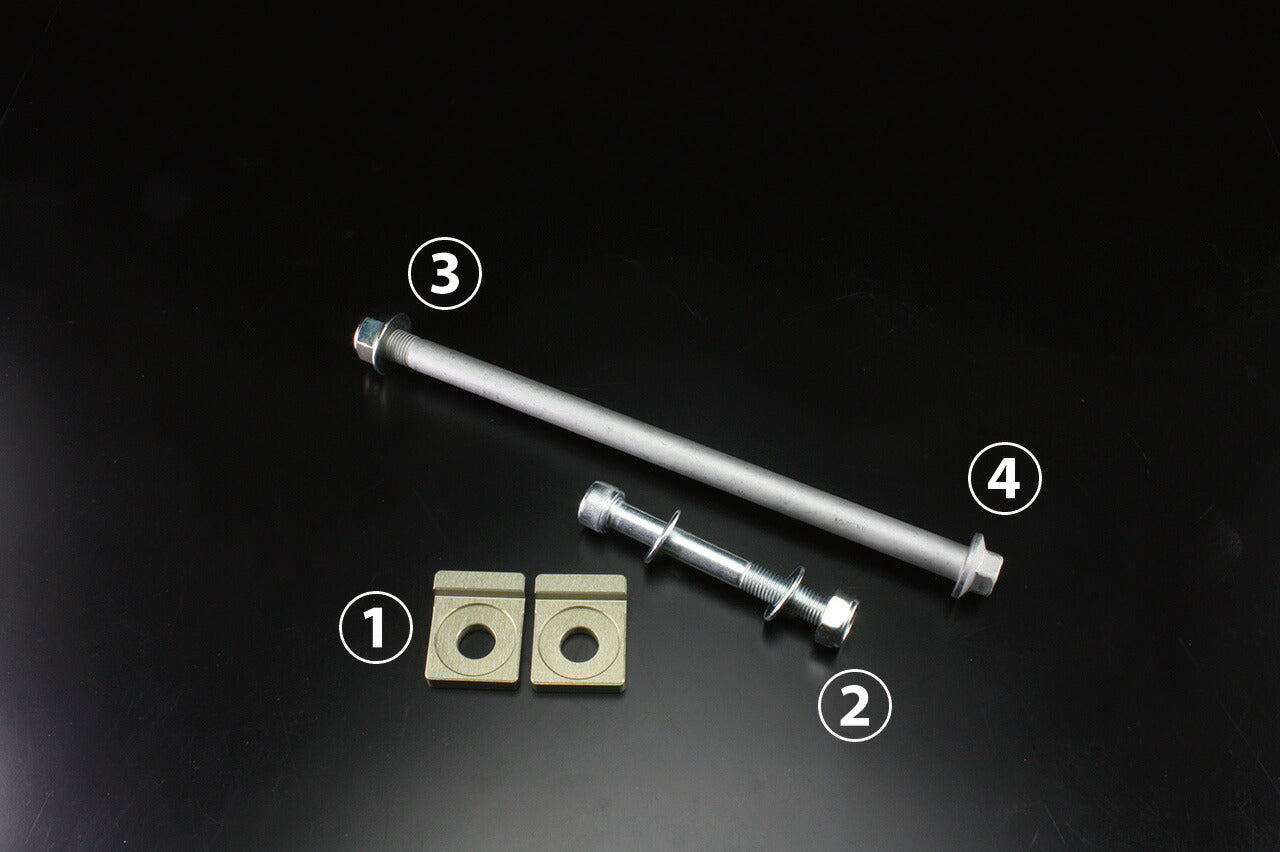

Accessories
(1) Chain adjuster block 1 set (pipe shape specific)
(2) Shock mounting bolt set
Bolt 1 (Repair part number 6220726)
Nut 1 (Repair part number 65229)
Washer 2 (Repair part number 65090/1 pc)
(3) Axle nut M12 1 (Repair part number 38001)
(4) Axle shaft 230mm 1 (Repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Installation requires a separate front offset sprocket 7mm and grinding 5mm off the rear sprocket mounting surface (wheel side).
*The pivot section comes standard with a bush specification. (Dust seals are not included and the product can be installed on the vehicle without them). Dedicated dust seals are included only with the needle bearing option.
*If using a lower stabilizer, the side stand spring hook may interfere. In such cases, bend the hook plate to accommodate.
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please be aware.
